| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

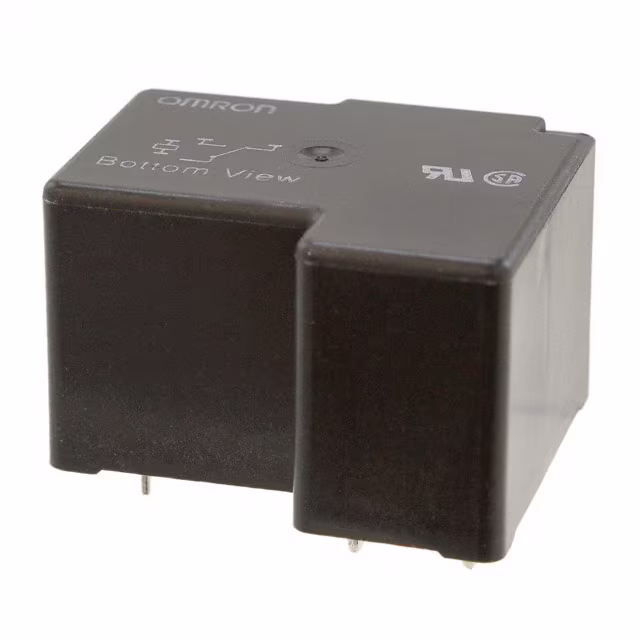

G8P-1C4P-VAS DC18RELAY GEN PURPOSE SPDT 10A 18V |
3940 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
G8P-1C4P-V DC12RELAY GEN PURPOSE SPDT 10A 12V |
3378 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
G8P-1C4P-V DC18RELAY GEN PURPOSE SPDT 10A 18V |
3070 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P-V DC22RELAY GEN PURPOSE SPDT 10A 22V |
3217 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 22VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 41 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P-V DC24RELAY GEN PURPOSE SPDT 10A 24V |
2877 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

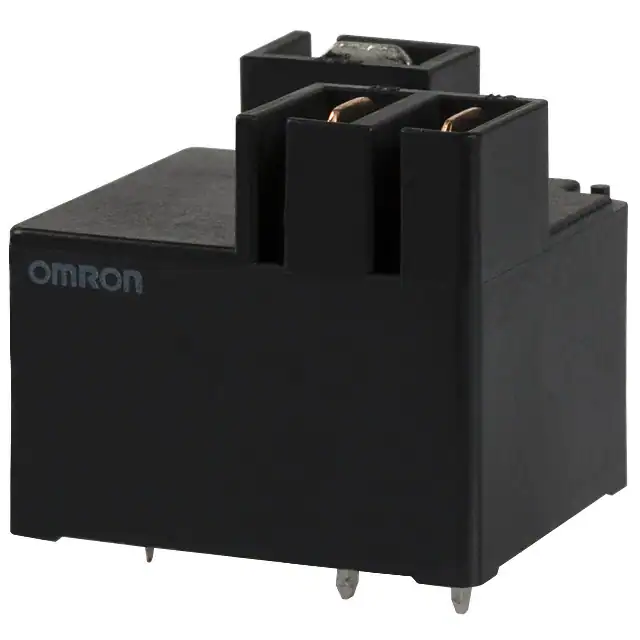

G8P-1C4TP DC110RELAY GEN PURPOSE SPDT 10A 110V |
2731 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P1C4TPDC48RELAY GEN PURPOSE SPDT 10A 48V |
3026 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4TP DC5RELAY GEN PURPOSE SPDT 10A 5V |
2938 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4TP DC9RELAY GEN PURPOSE SPDT 10A 9V |
3611 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4TP-V DC24RELAY GEN PURPOSE SPDT 10A 24V |
3242 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC110RELAY GEN PURPOSE SPDT 10A 110V |
3376 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC12RELAY GEN PURPOSE SPDT 10A 12V |
3153 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC24RELAY GEN PURPOSE SPDT 10A 24V |
3639 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC48RELAY GEN PURPOSE SPDT 10A 48V |
2734 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC5RELAY GEN PURPOSE SPDT 10A 5V |
2755 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CP DC9RELAY GEN PURPOSE SPDT 10A 9V |
3574 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CTP DC110RELAY GEN PURPOSE SPDT 10A 110V |
3604 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CTP DC12RELAY GEN PURPOSE SPDT 10A 12V |
3298 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CTP DC18RELAY GEN PURPOSE SPDT 10A 18V |
3679 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1CTP DC24RELAY GEN PURPOSE SPDT 10A 24V |
2501 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
Запрос котировок
