| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8P-1ATP DC24RELAY GEN PURPOSE SPST 30A 24V |
3303 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1ATP DC48RELAY GEN PURPOSE SPST 30A 48V |
2649 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1ATP DC5RELAY GEN PURPOSE SPST 30A 5V |
3338 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1ATP DC9RELAY GEN PURPOSE SPST 30A 9V |
2740 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

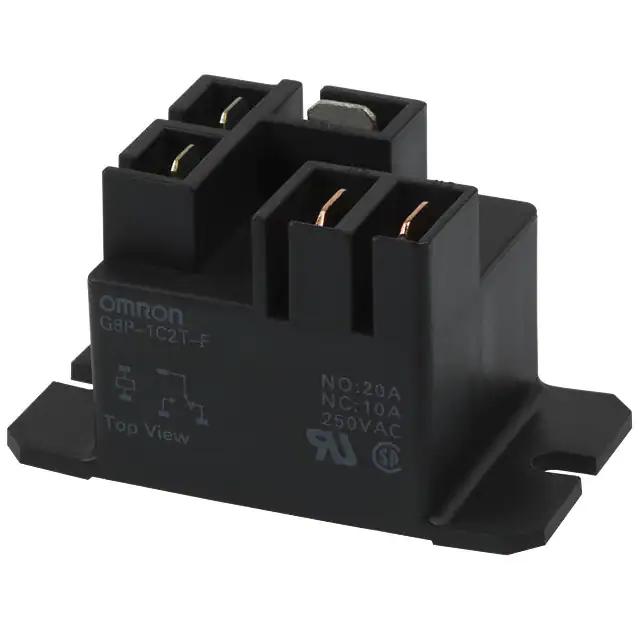

G8P-1C2T-F DC110RELAY GEN PURPOSE SPDT 10A 110V |
3688 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Chassis Mount | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C2T-F DC48RELAY GEN PURPOSE SPDT 10A 48V |
2218 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Chassis Mount | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C2T-F DC5RELAY GEN PURPOSE SPDT 10A 5V |
2026 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Chassis Mount | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C2T-F DC9RELAY GEN PURPOSE SPDT 10A 9V |
3475 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Chassis Mount | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P-AS DC24RELAY GEN PURPOSE SPDT 10A 24V |
3296 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P-AS DC48RELAY GEN PURPOSE SPDT 10A 48V |
2058 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC110RELAY GEN PURPOSE SPDT 10A 110V |
2399 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC15RELAY GEN PURPOSE SPDT 10A 15V |
3822 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 15VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC18RELAY GEN PURPOSE SPDT 10A 18V |
3914 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC22RELAY GEN PURPOSE SPDT 10A 22V |
2104 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 22VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 41 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

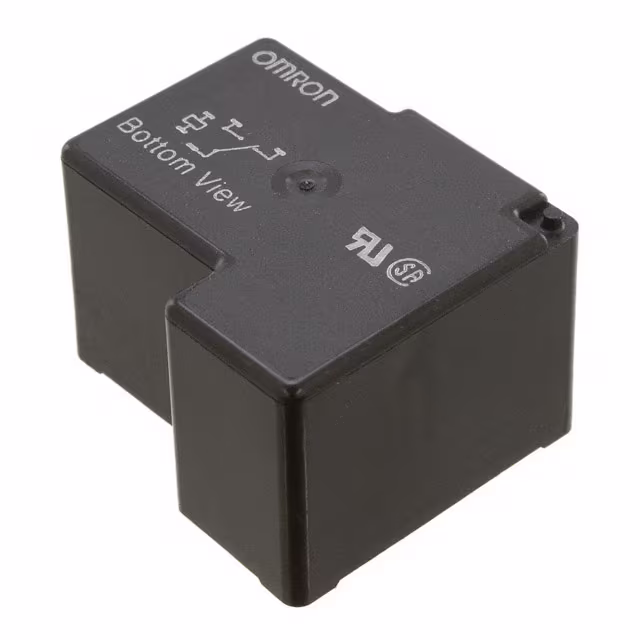

G8P-1C4P DC48RELAY GEN PURPOSE SPDT 10A 48V |
2777 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

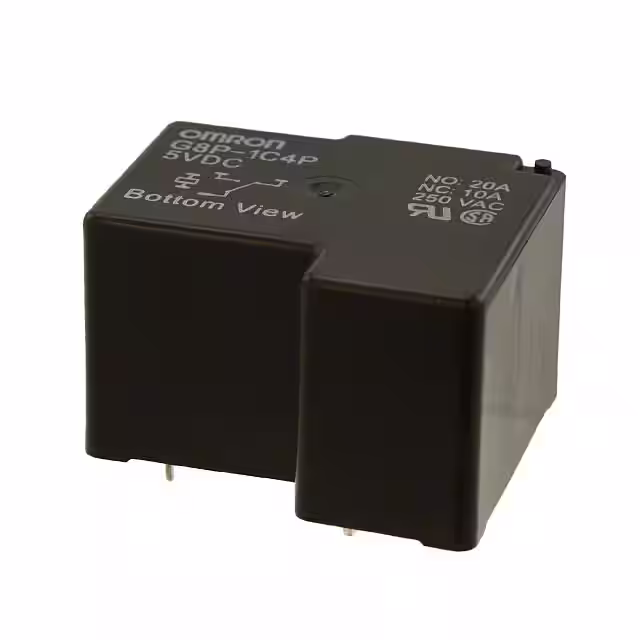

G8P-1C4P DC5RELAY GEN PURPOSE SPDT 10A 5V |
3573 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC6RELAY GEN PURPOSE SPDT 10A 6V |
3536 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC9RELAY GEN PURPOSE SPDT 10A 9V |
2961 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P-FD DC12RELAY GEN PURPOSE SPDT 10A 12V |
2198 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Indium (AgSnIn) |
|
|
G8P-1C4P-FD DC24RELAY GEN PURPOSE SPDT 10A 24V |
2107 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Indium (AgSnIn) |
