| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8P-1A4P DC9RELAY GEN PURPOSE SPST 30A 9V |
2697 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4P-FD DC12RELAY GEN PURPOSE SPST 30A 12V |
3432 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Indium (AgSnIn) |
|
|
G8P-1A4P-FD DC24RELAY GEN PURPOSE SPST 30A 24V |
3071 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Indium (AgSnIn) |
|
|
G8P1A4PVASDC12RELAY GEN PURPOSE SPST 30A 12V |
3056 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4P-V DC12RELAY GEN PURPOSE SPST 30A 12V |
2069 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4P-V DC24RELAY GEN PURPOSE SPST 30A 24V |
3177 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
G8P-1A4TP DC110RELAY GEN PURPOSE SPST 30A 110V |
3677 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P1A4TPDC18RELAY GEN PURPOSE SPST 30A 18V |
2854 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP DC22RELAY GEN PURPOSE SPST 30A 22V |
3239 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 22VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP DC48RELAY GEN PURPOSE SPST 30A 48V |
3632 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP DC5RELAY GEN PURPOSE SPST 30A 5V |
2444 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP DC9RELAY GEN PURPOSE SPST 30A 9V |
3323 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP-V DC24RELAY GEN PURPOSE SPST 30A 24V |
3282 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4TP-V DC9RELAY GEN PURPOSE SPST 30A 9V |
2442 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

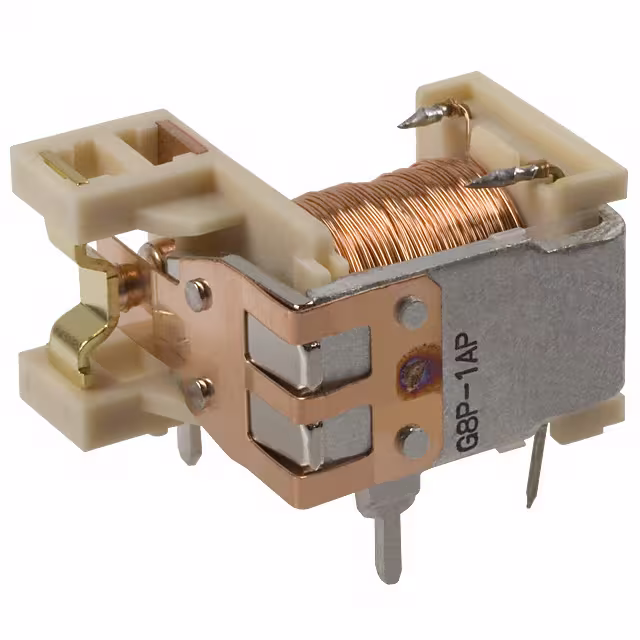

G8P-1AP DC110RELAY GEN PURPOSE SPST 30A 110V |
2364 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1AP DC48RELAY GEN PURPOSE SPST 30A 48V |
2493 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1AP DC9RELAY GEN PURPOSE SPST 30A 9V |
3374 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1AP-FD DC48RELAY GEN PURPOSE SPST 30A 48V |
3389 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Indium (AgSnIn) |
|
G8P-1ATP DC110RELAY GEN PURPOSE SPST 30A 110V |
2824 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1ATP DC12RELAY GEN PURPOSE SPST 30A 12V |
3955 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
