| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDX15A2-ASENSOR PRESS ABS 15PSI |
2564 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-DIP Module | Tray | SDX | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 20V | Male - 0.11 (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C |
|
SDX15A4-ASENSOR PRESS ABS 15PSI |
3397 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-DIP Module | Tray | SDX | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 20V | Male - 0.11 (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C |
|
|
SDX15G2-ASENSOR PRESS GAUGE 15PSI |
3293 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-DIP Module | Tray | SDX | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.25% | 20V | Male - 0.11 (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C |
|

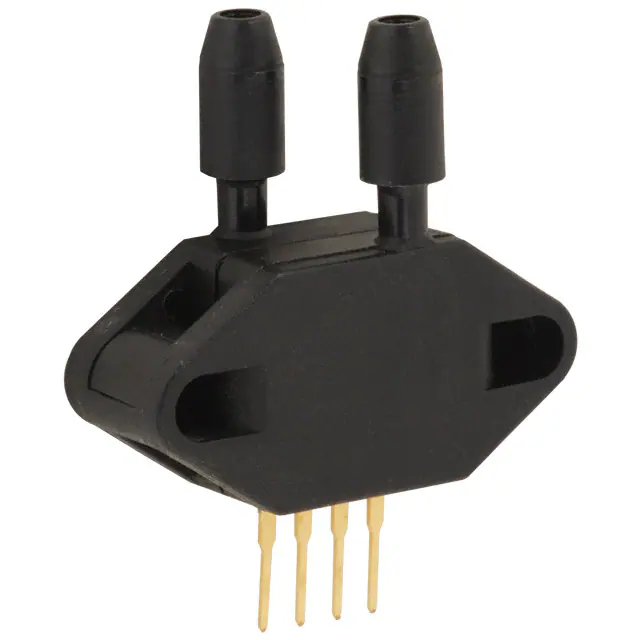

SX100DNSENSOR PRESS DIFF 100PSI |
2274 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tray | - | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | - | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C |
|

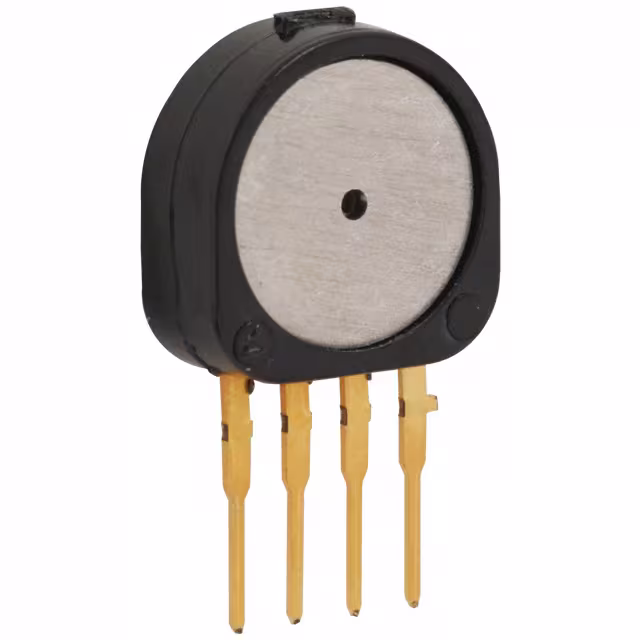

SX7030DSENSOR PRESS DIFF 30PSI |
3492 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tray | SX7 | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | - | No Port | - | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C |
|
|
SX7100DSENSOR PRESS DIFF 100PSI |
2637 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tray | SX7 | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | - | No Port | - | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C |
|
24PCAFB6GSENSOR PSI GAGE |
2708 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | - | 24PC | Active | Board Mount | Gauge | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.19 (4.78mm) Tube | Barbed | - | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C |
|
2 INCH-D1-4V-MINISENSOR PRESSURE DIFF 2 H2O 4SIP |
3631 | 0.00 |
ДобавитьНемедленный |
4-SIP Module | Bulk | MAMP | Obsolete | Board Mount | Differential | 0.07PSI (0.5kPa) | - | - | - | 4.5V ~ 5.5V | - | - | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | |
|

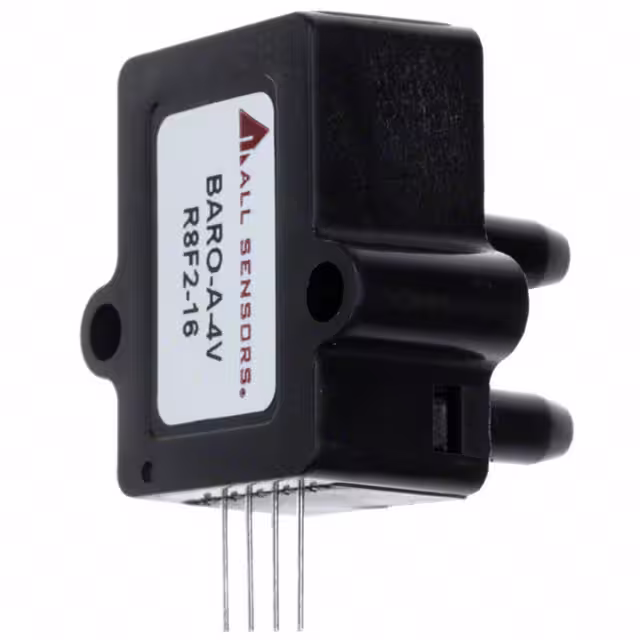

BARO-A-4V-REF-PRIMESENSOR PRESS BAROMETRIC 4V |
2032 | 0.00 |
ДобавитьНемедленный |
4-SIP | Bulk | - | Obsolete | Board Mount | Absolute | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0 V ~ 4.25 V | ±2% | 5.5V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbless | Temperature Compensated | - | 60PSI (413.69kPa) | -40°C ~ 125°C | |
|
|
KP125IC PRESSURE SENSOR BAROM DSOF-8 |
3266 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-SMD Module | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Board Mount | Absolute | 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.174PSI (±1.2kPa) | 4.5V ~ 5.5V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | - | -40°C ~ 125°C |
|
MPXA4115A6T1PRESSURE SENS 16.7PSI MAX 8-SOP |
2234 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-SMD Module | Tape & Reel (TR),Cut Tape (CT) | MPXA4115A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPXAZ4115A6T1PRESSURE SENS 16.7PSI MAX 8-SOP |
3371 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-SMD Module | Tape & Reel (TR),Cut Tape (CT) | MPXAZ4115A | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXV7025GC6T1PRESSURE SENSOR AXIAL PORT 8-SOP |
2152 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-SMD, Gull Wing, Top Port | Cut Tape (CT) | MPXV7025 | Obsolete | - | - | - | - | - | - | - | - | - | - | PCB | - | - |
|
|
XPC05DTCSENSOR PRESSURE DIFF -5/5 PSI |
2650 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Bulk | XPC | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | - | 15PSI (103.42kPa) | -25°C ~ 85°C |
|
|
BSM-015G-LFPRESSURE SNESOR 15PSIG SM |
2793 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-CLCC | Tube | - | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 79.5 mV (3V) | ±2% | 6V | - | No Port | - | SMD (SMT) Tab | 45PSI (310.26kPa) | -25°C ~ 85°C |
|

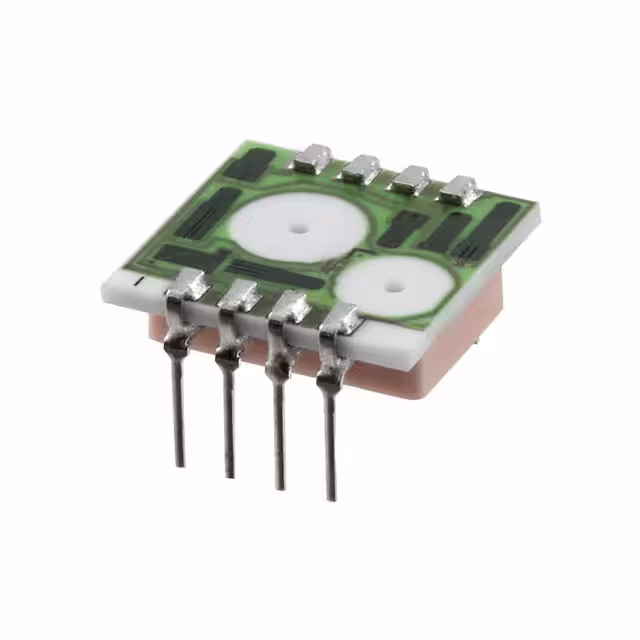

1220A-005G-3NSENSOR PRES 5PSID 0-50MV 8-DIP |
2015 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-DIP Module | Bulk,Tray | - | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | No Port | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C |
|

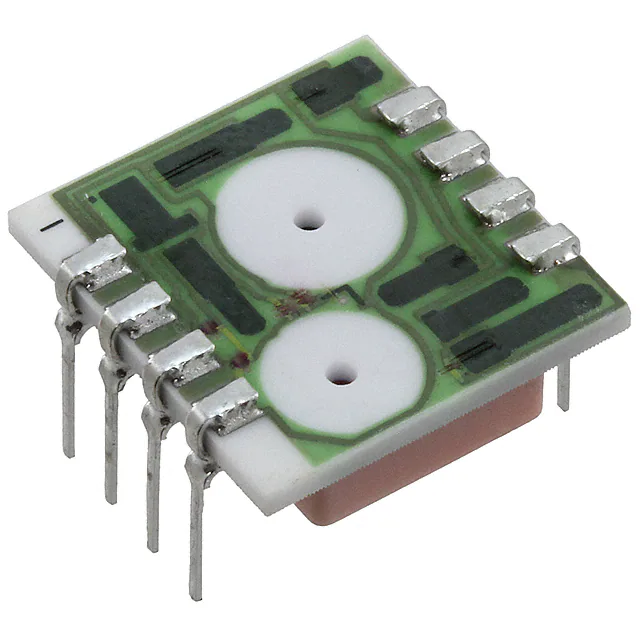

1220A-100G-3NSENSOR 100PSID 50MV 8PIN PCB |
3697 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-DIP Module | Bulk | - | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | No Port | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C |
|
|
XCA415DNPRESS SENSOR 4V 15PSI |
2438 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Bulk | XCA4 | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 2.25 V ~ 6.25 V (5V) | ±1% | 3V ~ 16V | Male - 0.19 (4.8mm) Tube, Dual | Barbed | Amplified Output | - | 45PSI (310.26kPa) | -25°C ~ 85°C |
|
NPC-1210-10WG/DSENSOR PRESS DIFF 10 H2O 8DIP |
3099 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-DIP Module | Bulk | NPC-1210 | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13 (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C |
|
|
NPC-1210-001G/DSENSOR PRES 1PSI 0-75MV DIP |
2182 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
8-DIP Module | Bulk | NPC-1210 | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 75 mV | ±0.5% | - | Male - 0.13 (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C |
