| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC0.3DFHSENSOR DIFF VACUUM GAUGE .3PSI |
3999 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Differential | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
CPC0.3GFHSENSOR VACUUM GAUGE .3PSI |
2965 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Bulk | CPC | Obsolete | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
CPC01DFCSENSOR DIFF VACUUM GAUGE 1PSI |
2827 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
CPC01GFHSENSOR VACUUM GAUGE 1PSI |
3243 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|

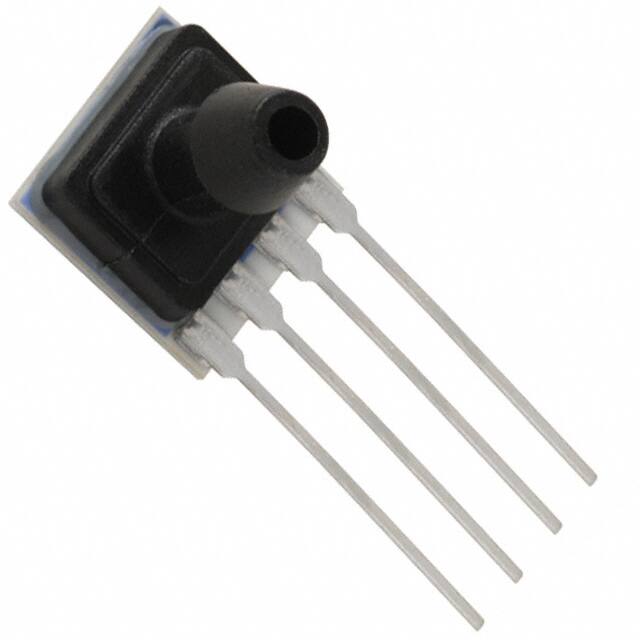

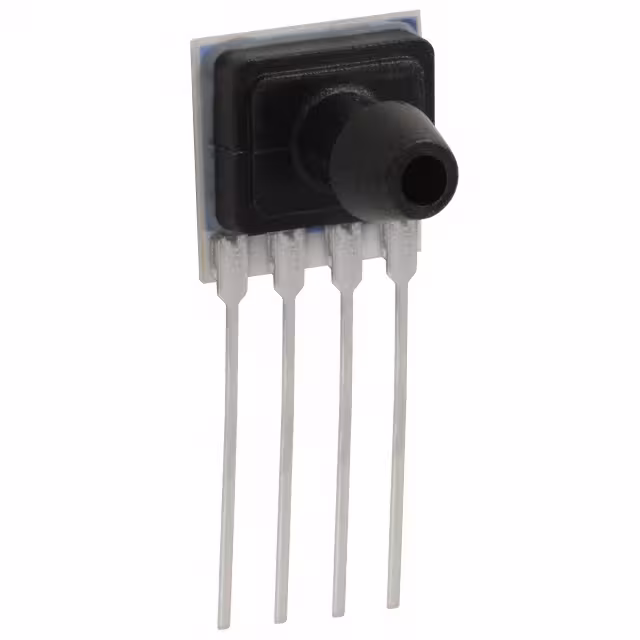

CPC05GFCSENSOR VACUUM GAUGE 5PSI |
3733 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C |
|
|
CPC05GFHSENSOR VACUUM GAUGE 5PSI |
2935 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C |
|
|
CPC15AFHSENSOR ABSOLUTE 2-15PSIA |
3478 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C |
|

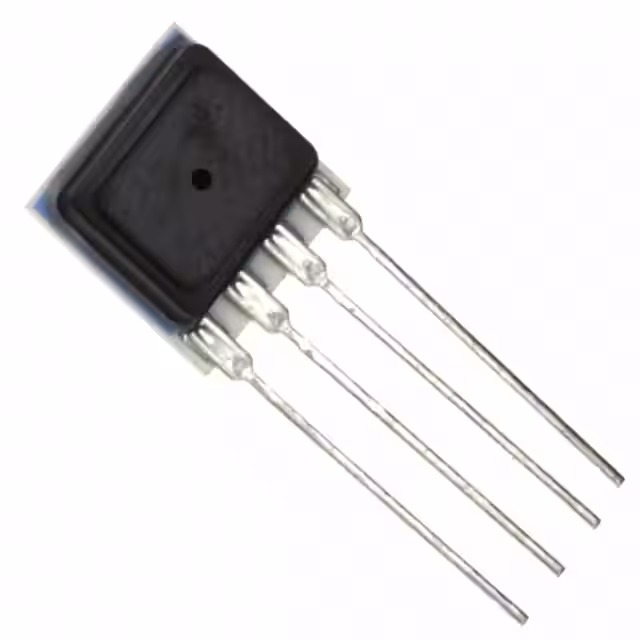

CPC15AHSENSOR ABSOLUTE 2-15PSIA |
2583 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C |
|
|
CPCL04DFCSENSOR PRESSURE DIFF 4 H2O 4SIP |
2480 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPCL | Obsolete | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C |
|

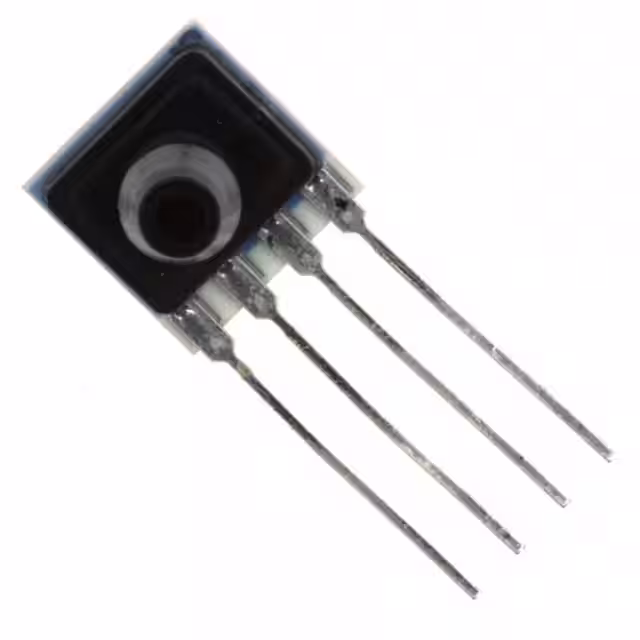

CPCL04GFCSENSOR PRESS GAUGE 4 H2O 4SIP |
2652 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPCL | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C |
|
CPCL10DFCSENSOR PRESS DIFF 10 H2O 4SIP |
3820 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPCL | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
CPCL10GFCSENSOR PRESS GAUGE 10 H2O 4SIP |
3144 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | CPCL | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
DC010NDC4SENSOR PRESS DIFF 10 H2O 4SIP |
2259 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | DC | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C |
|
|
DC030NDC4SENSOR PRESS DIFF 30 H2O 4SIP |
3864 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | DC | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 16.26PSI (112.13kPa) | -25°C ~ 85°C |
|
|
DC2R5BDC4SENSOR AMP DIFFERENTIAL 2.5 MBAR |
2541 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | DC | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C |
|

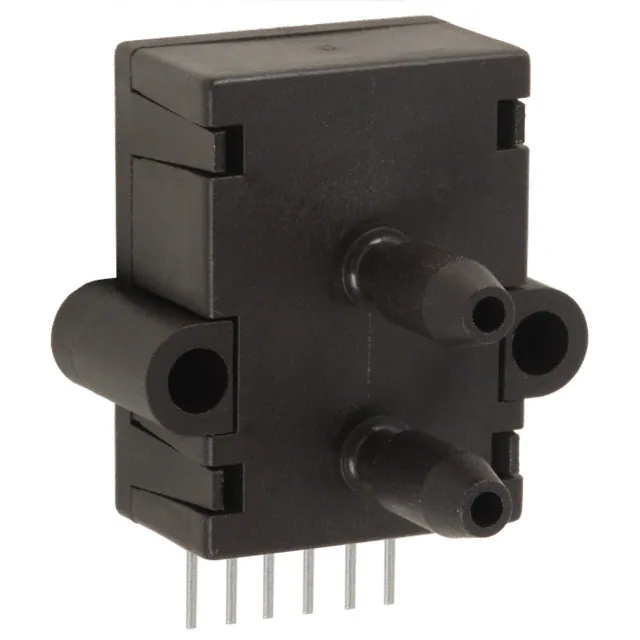

DCXL01DSSENSOR PRESSURE DIFF 1 H2O 6SIP |
3113 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-SIP Module | Tube | DCXL-DS | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
DCXL05DSSENSOR PRESSURE DIFF 5 H2O 6SIP |
3943 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-SIP Module | Tube | DCXL-DS | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
DCXL10DSSENSOR PRESS DIFF 10 H2O 6SIP |
2377 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-SIP Module | Tube | DCXL-DS | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
DCXL30DSSENSOR PRESS DIFF 30 H2O 6SIP |
2056 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
6-SIP Module | Tube | DCXL-DS | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 3V ~ 16V | Male - 0.19 (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|

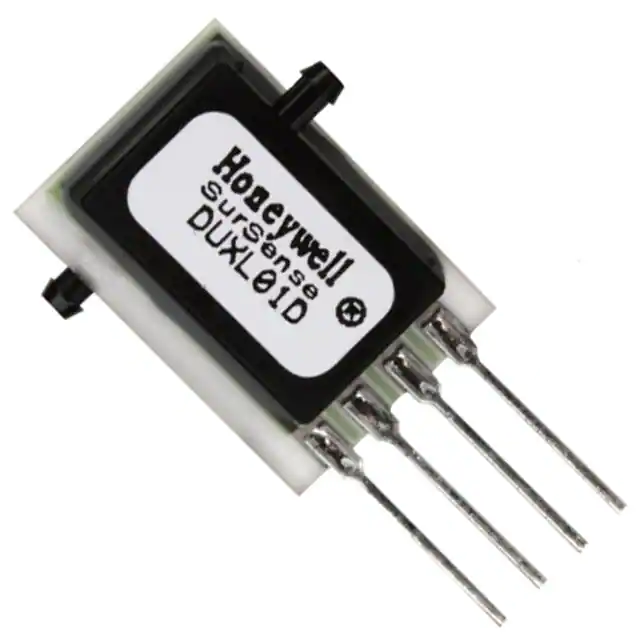

DUXL01DSENSOR PRESSURE DIFF 1 H2O 4SIP |
3149 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
4-SIP Module | Tube | DUXL | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 6 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08 (2.03mm) Tube, Dual | Barbed | - | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C |
