Производитель. Часть #	Акции	Цены	А	Таблицы данных	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J102K1AS3P6VDC.20 RELAY GEN PURPOSE SPST 3A 6V CIT Relay and Switch	3924	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	6VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS3P5VDC.45 RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch	2856	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	5VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	89.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS324VDC.36 RELAY GEN PURPOSE SPST 3A 24V CIT Relay and Switch	2508	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J102K1AS324VDC.20 RELAY GEN PURPOSE SPST 3A 24V CIT Relay and Switch	3974	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J102K1CS3P12VDC.20 RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch	2344	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS3P12VDC.45 RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch	3799	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS3P9VDC.45 RELAY GEN PURPOSE SPST 3A 9V CIT Relay and Switch	3961	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	9VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.75 VDC	0.9 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS3P9VDC.36 RELAY GEN PURPOSE SPST 3A 9V CIT Relay and Switch	2409	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	9VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.75 VDC	0.9 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS3P5VDC.36 RELAY GEN PURPOSE SPST 3A 5V CIT Relay and Switch	2162	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	66.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS3P5VDC.20 RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch	3581	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	5VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)

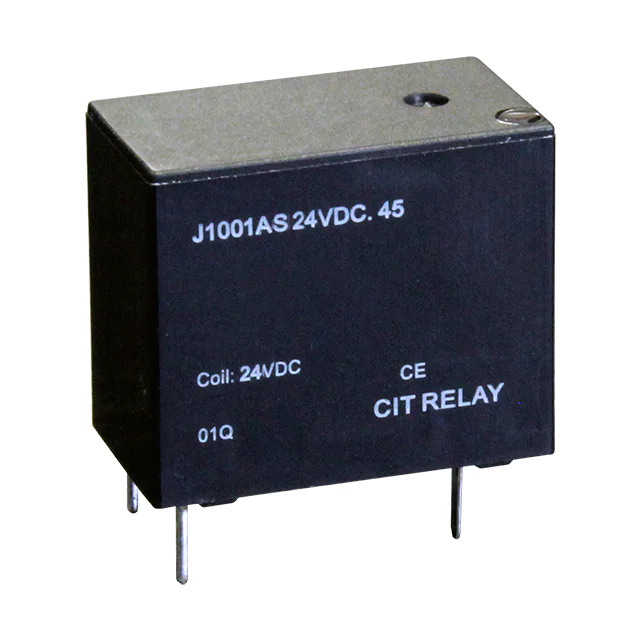

J1001AS24VDC.45 RELAY GEN PURPOSE SPST 10A 24V CIT Relay and Switch	3421	0.62	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)

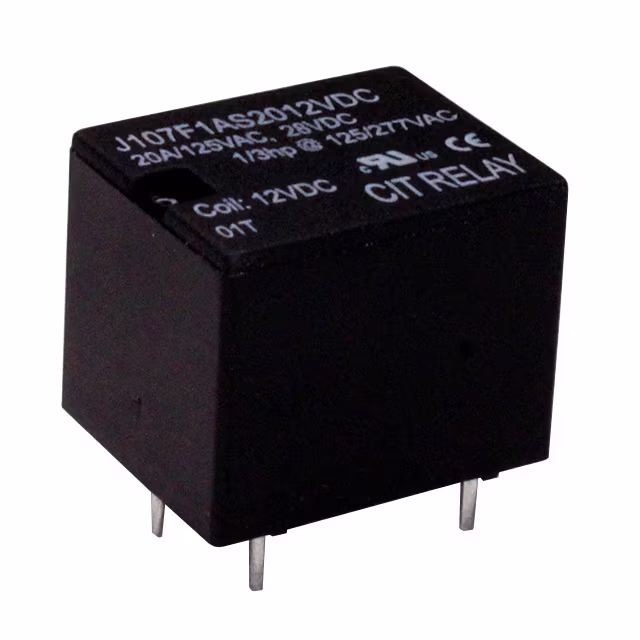

J107F1AS2012VDC.45 RELAY GEN PURPOSE SPST 20A 12V CIT Relay and Switch	2362	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	12VDC	SPST-NO (1 Form A)	20 A	380VAC, 110VDC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS1524VDC.36 RELAY GEN PURPOSE SPST 15A 24V CIT Relay and Switch	3545	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	15 A	380VAC, 110VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)

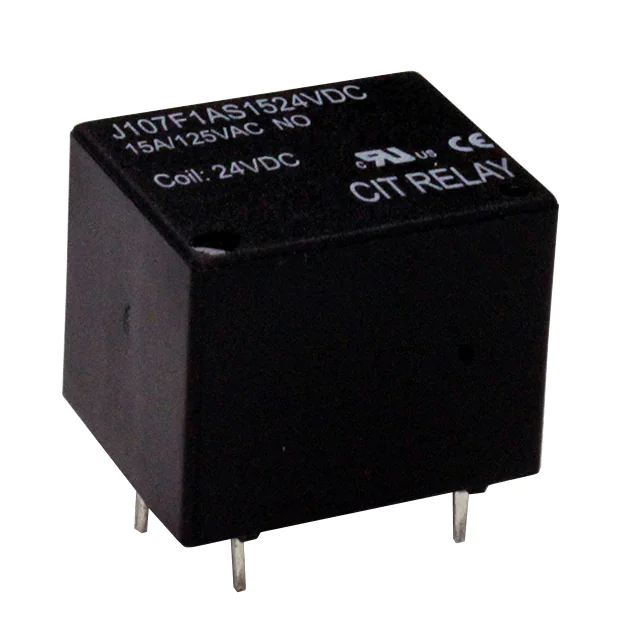

J107F1AS1524VDC.80 RELAY GEN PURPOSE SPST 15A 24V CIT Relay and Switch	2639	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	15 A	380VAC, 110VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS1524VDC.45 RELAY GEN PURPOSE SPST 15A 24V CIT Relay and Switch	2560	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	15 A	380VAC, 110VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS209VDC.45 RELAY GEN PURPOSE SPST 20A 9V CIT Relay and Switch	2882	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	9VDC	SPST-NO (1 Form A)	20 A	380VAC, 110VDC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	6.75 VDC	0.9 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS153VDC.36 RELAY GEN PURPOSE SPST 15A 3V CIT Relay and Switch	2730	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	3VDC	SPST-NO (1 Form A)	15 A	380VAC, 110VDC - Max	120 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	2.25 VDC	0.3 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J1131AS5VDC.20 RELAY GEN PURPOSE SPST 5A 5V CIT Relay and Switch	3005	0.62	- + Добавить Немедленный	Datenblatt	Tube	J113	Active	Through Hole	5VDC	SPST-NO (1 Form A)	5 A	277VAC, 30VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J107F1AS153VDC.80 RELAY GEN PURPOSE SPST 15A 3V CIT Relay and Switch	2833	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	3VDC	SPST-NO (1 Form A)	15 A	380VAC, 110VDC - Max	272.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	2.25 VDC	0.3 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1CS125VDC.80 RELAY GEN PURPOSE SPDT 12A 5V CIT Relay and Switch	3151	0.62	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	5VDC	SPDT (1 Form C)	12 A	380VAC, 110VDC - Max	161.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.75 VDC	0.5 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
