Производитель. Часть #	Акции	Цены	А	Таблицы данных	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J102K1CS3P6VDC.36 RELAY GEN PURPOSE SPDT 3A 6V CIT Relay and Switch	3813	0.61	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	6VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021AS3P12VDC.20 RELAY GEN PURPOSE SPST 3A 12V CIT Relay and Switch	3146	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS3P6VDC.20 RELAY GEN PURPOSE SPDT 3A 6V CIT Relay and Switch	2292	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	6VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS3P12VDC.45 RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch	2020	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS3P12VDC.20 RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch	3226	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS3P12VDC.36 RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch	2068	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS3P5VDC.45 RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch	2661	0.58	- + Добавить Немедленный	Datenblatt	Tube	J102	Active	Through Hole	5VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	89.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)

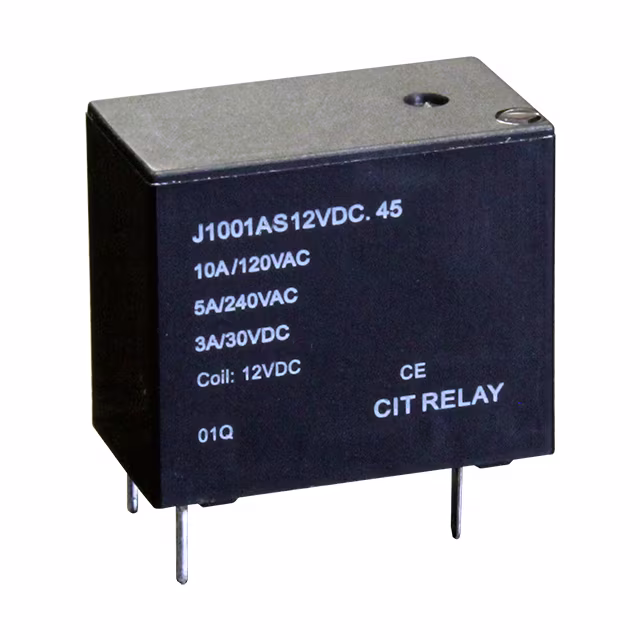

J1001AS12VDC.45 RELAY GEN PURPOSE SPST 10A 12V CIT Relay and Switch	3105	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)

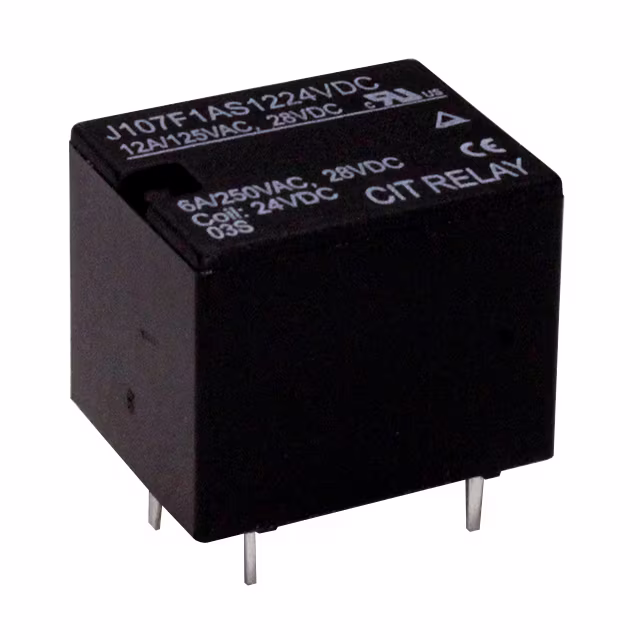

J107F1AS1224VDC.45 RELAY GEN PURPOSE SPST 12A 24V CIT Relay and Switch	3538	0.59	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	12 A	380VAC, 110VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J1001AS6VDC.45 RELAY GEN PURPOSE SPST 10A 6V CIT Relay and Switch	2377	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	75 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS9VDC.45 RELAY GEN PURPOSE SPST 10A 9V CIT Relay and Switch	3270	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	9VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.75 VDC	0.9 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS9VDC.20 RELAY GEN PURPOSE SPST 10A 9V CIT Relay and Switch	3220	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	9VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	22.2 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.75 VDC	0.9 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS5VDC.45 RELAY GEN PURPOSE SPST 10A 5V CIT Relay and Switch	2288	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	90.9 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS3VDC.45 RELAY GEN PURPOSE SPST 10A 3V CIT Relay and Switch	3780	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	3VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	150 mA	Non Latching	-	PC Pin	Sealed - Fully	-	2.25 VDC	0.3 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS3VDC.20 RELAY GEN PURPOSE SPST 10A 3V CIT Relay and Switch	2036	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	3VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	66.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	2.25 VDC	0.3 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS6VDC.20 RELAY GEN PURPOSE SPST 10A 6V CIT Relay and Switch	2840	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J107F1AS1224VDC.80 RELAY GEN PURPOSE SPST 12A 24V CIT Relay and Switch	2094	0.59	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	12 A	380VAC, 110VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J1001AS18VDC.20 RELAY GEN PURPOSE SPST 10A 18V CIT Relay and Switch	3948	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	18VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	11.1 mA	Non Latching	-	PC Pin	Sealed - Fully	-	13.5 VDC	1.8 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J1001AS18VDC.45 RELAY GEN PURPOSE SPST 10A 18V CIT Relay and Switch	3458	0.59	- + Добавить Немедленный	Datenblatt	Tray	J100	Active	Through Hole	18VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Fully	-	13.5 VDC	1.8 VDC	10 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
J107F1AS123VDC.45 RELAY GEN PURPOSE SPST 12A 3V CIT Relay and Switch	3446	0.59	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	3VDC	SPST-NO (1 Form A)	12 A	380VAC, 110VDC - Max	150 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	2.25 VDC	0.3 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
