Производитель. Часть #	Акции	Цены	А	Таблицы данных	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J105D1CS48VDC.45 RELAY GEN PURPOSE SPDT 10A 48V CIT Relay and Switch	800	1.66	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	48VDC	SPDT (1 Form C)	10 A	277VAC - Max	9.4 mA	Non Latching	-	PC Pin	Sealed - Fully	-	36 VDC	4.8 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J104B2C3VDC.20S RELAY GEN PURPOSE DPDT 3A 3V CIT Relay and Switch	787	1.66	- + Добавить Немедленный	Datenblatt	Tube	J104	Active	Through Hole	3VDC	DPDT (2 Form C)	3 A	250VAC, 220VDC - Max	66.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	2.25 VDC	0.3 VDC	4.5 ms	1.5 ms	-40°C ~ 85°C	Silver Nickel (AgNi), Gold (Au)
OJS-SS-112HEF, 00000 RELAY GEN PURPOSE SPST 16A 12V TE Connectivity Potter & Brumfield Relays	823	1.69	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	250VAC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	9 VDC	0.6 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
OJS-SH-105HMF, 00000 RELAY GEN PURPOSE SPST 10A 5V TE Connectivity Potter & Brumfield Relays	961	1.74	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.75 VDC	0.25 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
OJS-SH-124HMF, 00000 RELAY GEN PURPOSE SPST 10A 24V TE Connectivity Potter & Brumfield Relays	695	1.74	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	1.2 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
OJS-SS-124HEF, 00000 RELAY GEN PURPOSE SPST 16A 24V TE Connectivity Potter & Brumfield Relays	980	1.76	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	250VAC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	1.2 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
OJS-SS-105HEF, 00000 RELAY GEN PURPOSE SPST 16A 5V TE Connectivity Potter & Brumfield Relays	716	1.76	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	5VDC	SPST-NO (1 Form A)	16 A	250VAC - Max	89.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.75 VDC	0.25 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
LKP1AF-12V RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	208	1.77	- + Добавить Немедленный	Datenblatt	Bulk	LK-P	Obsolete	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	277VAC, 30VDC - Max	44.2 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
JS1A-6V-F RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	2082	1.77	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.2 VDC	0.6 VDC	10 ms	10 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
AZ576-1A-5DE RELAY GEN PURPOSE SPST 20A 5V American Zettler	798	1.79	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	5VDC	SPST-NO (1 Form A)	20 A	480VAC, 30VDC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.75 VDC	0.5 VDC	15 ms	8 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
JS1AF-B-6V-F RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	443	1.80	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	4.2 VDC	0.6 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JS1A-B-6V-F RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	337	1.80	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	4.2 VDC	0.6 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JS1AF-24V-F RELAY GEN PURPOSE SPST 10A 24V Panasonic Electric Works	281	1.80	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	16.8 VDC	2.4 VDC	10 ms	10 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
JS1AF-F-5V-F RELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works	3323	1.82	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	72 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.5 VDC	0.5 VDC	10 ms	10 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)

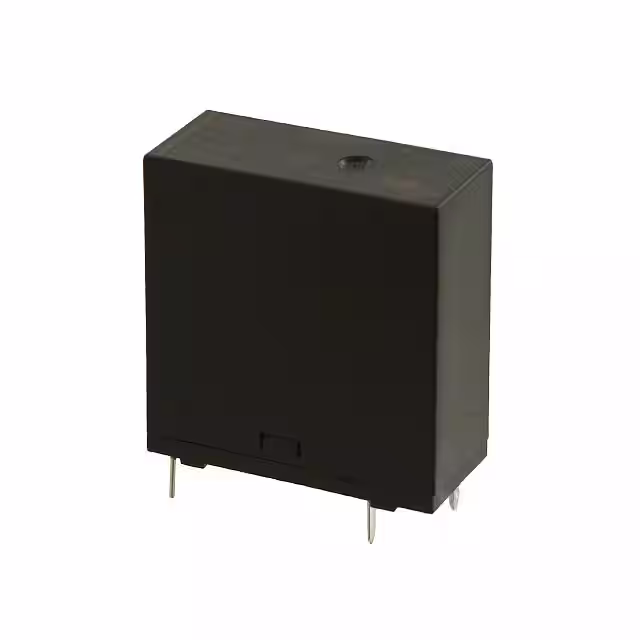

LKT1AF-9V RELAY GEN PURPOSE SPST 5A 9V Panasonic Electric Works	151	1.85	- + Добавить Немедленный	Datenblatt	Tray	LK-T	Obsolete	Through Hole	9VDC	SPST-NO (1 Form A)	5 A	277VAC - Max	27.8 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	6.3 VDC	0.9 VDC	15 ms	5 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
J104A2C48VDC.40S RELAY GEN PURPOSE DPDT 3A 48V CIT Relay and Switch	998	1.86	- + Добавить Немедленный	Datenblatt	Tube	J104	Active	Through Hole	48VDC	DPDT (2 Form C)	3 A	250VAC, 220VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	36 VDC	4.8 VDC	4.5 ms	1.5 ms	-40°C ~ 85°C	Silver Nickel (AgNi), Gold (Au)
J109F1CS1248VDC.45 RELAY GEN PURPOSE SPDT 12A 48V CIT Relay and Switch	994	1.86	- + Добавить Немедленный	Datenblatt	Tube	J109F	Active	Through Hole	48VDC	SPDT (1 Form C)	12 A	380VAC, 110VDC - Max	9.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	7 ms	4 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J109F1CS1048VDC.45 RELAY GEN PURPOSE SPDT 10A 48V CIT Relay and Switch	982	1.86	- + Добавить Немедленный	Datenblatt	Tube	J109F	Active	Through Hole	48VDC	SPDT (1 Form C)	10 A	380VAC, 110VDC - Max	9.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	7 ms	4 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
JS1-18V-F RELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works	3174	1.95	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	18VDC	SPDT (1 Form C)	10 A	250VAC, 100VDC - Max	20 mA	Non Latching	-	PC Pin	Sealed - Fully	-	12.6 VDC	1.8 VDC	10 ms	10 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
J123F1A48VDC.36 RELAY GEN PURPOSE SPST 20A 48V CIT Relay and Switch	971	1.97	- + Добавить Немедленный	Datenblatt	Tube	J123F	Active	Through Hole	48VDC	SPST-NO (1 Form A)	20 A	380VAC, 110VDC - Max	7.5 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
