Производитель. Часть #	Акции	Цены	А	Таблицы данных	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J107F1AS2024VDC.80 RELAY GEN PURPOSE SPST 20A 24V CIT Relay and Switch	832	1.21	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	24VDC	SPST-NO (1 Form A)	20 A	380VAC, 110VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
JS1-B-24V-F RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works	328	1.21	- + Добавить Немедленный	Datenblatt	Bulk	JS	Obsolete	Through Hole	24VDC	SPDT (1 Form C)	10 A	250VAC, 100VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
J105D1AS24VDC.45 RELAY GEN PURPOSE SPST 10A 24V CIT Relay and Switch	984	1.31	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	277VAC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS1248VDC.36 RELAY GEN PURPOSE SPST 12A 48V CIT Relay and Switch	966	1.44	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	48VDC	SPST-NO (1 Form A)	12 A	380VAC, 110VDC - Max	7.5 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1CS1248VDC.80 RELAY GEN PURPOSE SPDT 12A 48V CIT Relay and Switch	984	1.46	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	48VDC	SPDT (1 Form C)	12 A	380VAC, 110VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)

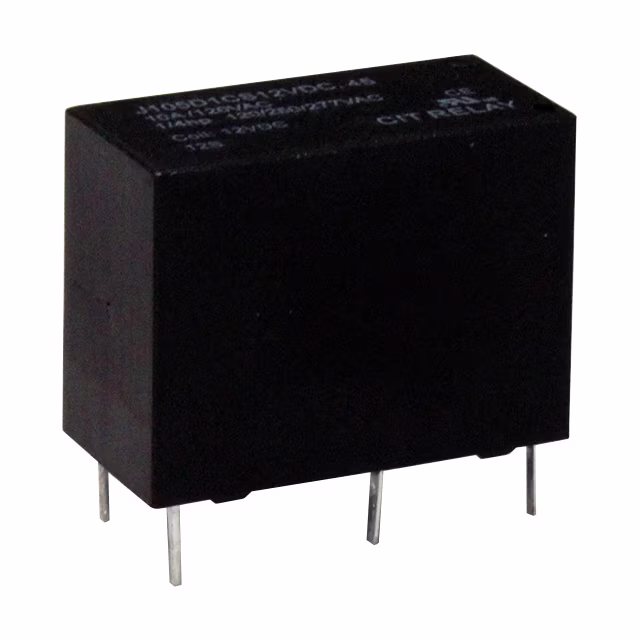

J105D1CS12VDC.45 RELAY GEN PURPOSE SPDT 10A 12V CIT Relay and Switch	606	1.46	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	12VDC	SPDT (1 Form C)	10 A	277VAC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J109F1CS1224VDC.45 RELAY GEN PURPOSE SPDT 12A 24V CIT Relay and Switch	933	1.49	- + Добавить Немедленный	Datenblatt	Tube	J109F	Active	Through Hole	24VDC	SPDT (1 Form C)	12 A	380VAC, 110VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	7 ms	4 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J109F1CS1024VDC.45 RELAY GEN PURPOSE SPDT 10A 24V CIT Relay and Switch	822	1.49	- + Добавить Немедленный	Datenblatt	Tube	J109F	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	380VAC, 110VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	7 ms	4 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
AZ9422-1CE-5DF RELAY GEN PURPOSE SPDT 20A 5V American Zettler	944	1.56	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	5VDC	SPDT (1 Form C)	20 A	277VAC, 30VDC - Max	71.4 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	3.8 VDC	0.5 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZ9422-1CE-12DEF RELAY GEN PURPOSE SPDT 20A 12V American Zettler	2349	1.56	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	12VDC	SPDT (1 Form C)	20 A	277VAC, 30VDC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
J105D1CS6VDC.45 RELAY GEN PURPOSE SPDT 10A 6V CIT Relay and Switch	998	1.59	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	6VDC	SPDT (1 Form C)	10 A	277VAC - Max	75 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J105D1CS24VDC.45 RELAY GEN PURPOSE SPDT 10A 24V CIT Relay and Switch	991	1.59	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	277VAC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)

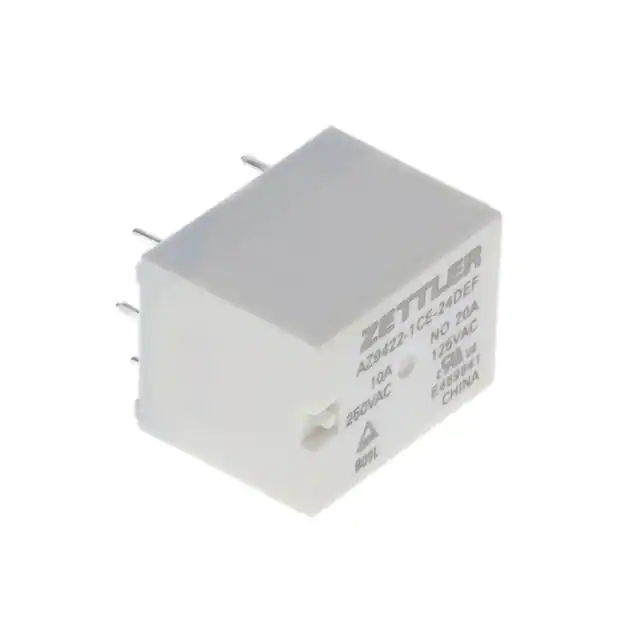

AZ9422-1CE-24DEF RELAY GEN PURPOSE SPDT 20A 24V American Zettler	990	1.59	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	24VDC	SPDT (1 Form C)	20 A	277VAC, 30VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
AZ9422-1CE-24DF RELAY GEN PURPOSE SPDT 20A 24V American Zettler	989	1.59	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	24VDC	SPDT (1 Form C)	20 A	277VAC, 30VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	2.4 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
J105D1CS18VDC.45 RELAY GEN PURPOSE SPDT 10A 18V CIT Relay and Switch	987	1.59	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	18VDC	SPDT (1 Form C)	10 A	277VAC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Fully	-	13.5 VDC	1.8 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J105D1CS9VDC.45 RELAY GEN PURPOSE SPDT 10A 9V CIT Relay and Switch	980	1.59	- + Добавить Немедленный	Datenblatt	Tray	J105D	Active	Through Hole	9VDC	SPDT (1 Form C)	10 A	277VAC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.75 VDC	0.9 VDC	10 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1AS2048VDC.80 RELAY GEN PURPOSE SPST 20A 48V CIT Relay and Switch	925	1.59	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	48VDC	SPST-NO (1 Form A)	20 A	380VAC, 110VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J107F1CS2048VDC.80 RELAY GEN PURPOSE SPDT 20A 48V CIT Relay and Switch	993	1.61	- + Добавить Немедленный	Datenblatt	Tube	J107F	Active	Through Hole	48VDC	SPDT (1 Form C)	20 A	380VAC, 110VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	36 VDC	4.8 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
J104A2C3VDC.40S RELAY GEN PURPOSE DPDT 3A 3V CIT Relay and Switch	971	1.66	- + Добавить Немедленный	Datenblatt	Tube	J104	Active	Through Hole	3VDC	DPDT (2 Form C)	3 A	250VAC, 220VDC - Max	130.4 mA	Non Latching	-	PC Pin	Sealed - Fully	-	2.25 VDC	0.3 VDC	4.5 ms	1.5 ms	-40°C ~ 85°C	Silver Nickel (AgNi), Gold (Au)
OJS-SH-112HMF, 00000 RELAY GEN PURPOSE SPST 10A 12V TE Connectivity Potter & Brumfield Relays	925	1.66	- + Добавить Немедленный	Datenblatt	Tray	OJS, OEG	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	0.6 VDC	15 ms	4 ms	-40°C ~ 85°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
