| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

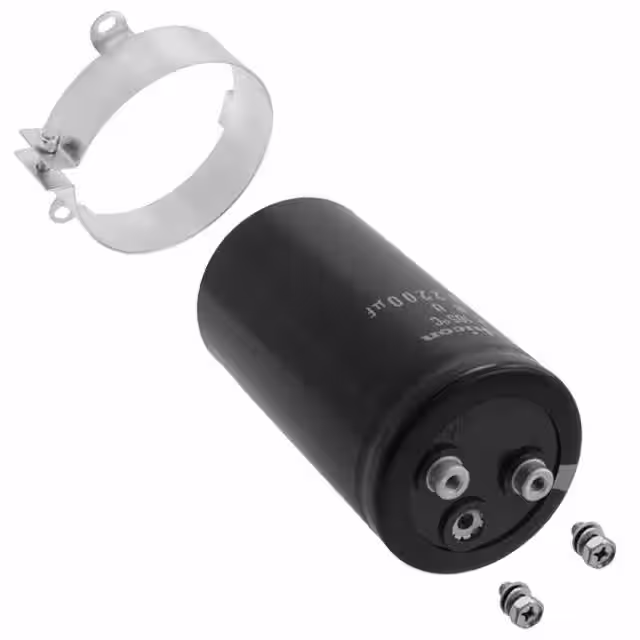

LNU2H222MSEGCAP ALUM 2200UF 20% 500V SCREW |
2168 | 74.52 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNU | Active | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.9 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

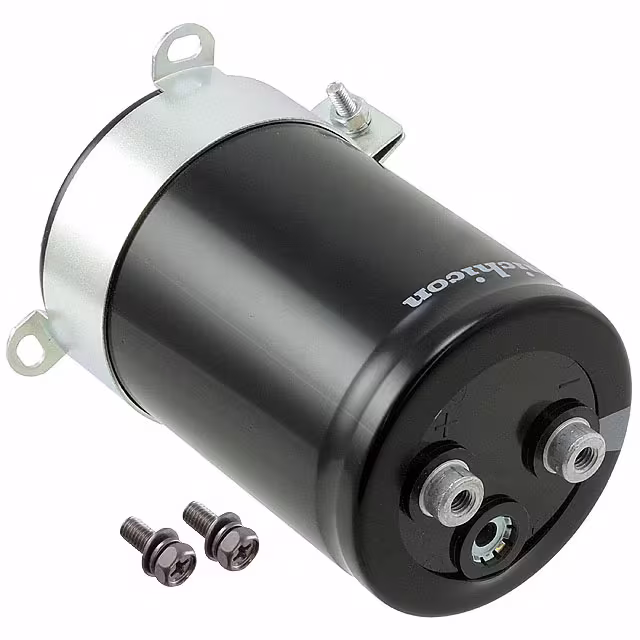

LNUN7182MSEGCAP ALUM 1800UF 20% 525V SCREW |
3929 | 80.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNU | Active | 1800 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 A @ 120 Hz | 11.2 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
LNR1J154MSECAP ALUM 150000UF 20% 63V SCREW |
2914 | 78.68 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNR | Active | 150000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 29.9 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
LNR2E153MSECAP ALUM 15000UF 20% 250V SCREW |
3017 | 78.84 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNR | Active | 15000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.4 A @ 120 Hz | 19.68 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
LNR1A105MSECAP ALUM 1F 20% 10V SCREW |
2581 | 82.43 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNR | Active | 1 F | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.7 A @ 120 Hz | 31.855 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
UVK2W101MHDCAP ALUM 100UF 20% 450V RADIAL |
3855 | 6.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UVK | Not For New Designs | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
475MXK120MEFCSN22X30CAP ALUM 120UF 20% 475V SNAP |
3532 | 6.01 |
ДобавитьНемедленный |
Datenblatt |
Tray | MXK | Active | 120 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.358 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ELG108M200AT2AACAP ALUM 1000UF 20% 200V SNAP |
2097 | 6.01 |
ДобавитьНемедленный |
Datenblatt |
Box | ELG | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43584E2229M000CAP ALUM 22000UF 20% 200V SCREW |
3886 | 175.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Not For New Designs | 22000 µF | ±20% | 200 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.9 A @ 100 Hz | - | 6 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 5.728 (145.50mm) | - | Chassis, Stud Mount |
|
450MXK220MEFCSN30X25CAP ALUM 220UF 20% 450V SNAP |
3139 | 6.24 |
ДобавитьНемедленный |
Datenblatt |
Tray | MXK | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.806 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMR401VSN391MP50SCAP ALUM 390UF 20% 400V SNAP |
2037 | 6.24 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SMR | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.432 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.067 (52.50mm) | - | Through Hole |
|
LAR2E471MELA35CAP ALUM 470UF 20% 250V SNAP |
2930 | 6.25 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LAR | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
SLP152M160H5P3CAP ALUM 1500UF 20% 160V SNAP |
2531 | 6.26 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SLP0712TE (750W) | Active | 1500 µF | ±20% | 160 V | 133mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
LGU1E273MELCCAP ALUM 27000UF 20% 25V SNAP |
2768 | 6.59 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 27000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.75 A @ 120 Hz | 5.4625 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGW2W181MELC25CAP ALUM 180UF 20% 450V SNAP |
3728 | 6.60 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGW | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.288 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
B43624B2108M000CAP ALUM 1000UF 20% 200V SNAP |
3760 | 6.61 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43624 | Active | 1000 µF | ±20% | 200 V | 120mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.83 A @ 100 Hz | - | 190 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
LGW2G271MELC25CAP ALUM 270UF 20% 400V SNAP |
2336 | 6.61 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGW | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
LGN2C222MELB45CAP ALUM 2200UF 20% 160V SNAP |
2496 | 6.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGN | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
400MXK330MEFCSN30X30CAP ALUM 330UF 20% 400V SNAP |
3474 | 6.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MXK | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
LGN2W271MELB35CAP ALUM 270UF 20% 450V SNAP |
3882 | 6.77 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGN | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
