| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU1K332MELCCAP ALUM 3300UF 20% 80V SNAP |
3975 | 5.23 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | 3.1165 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

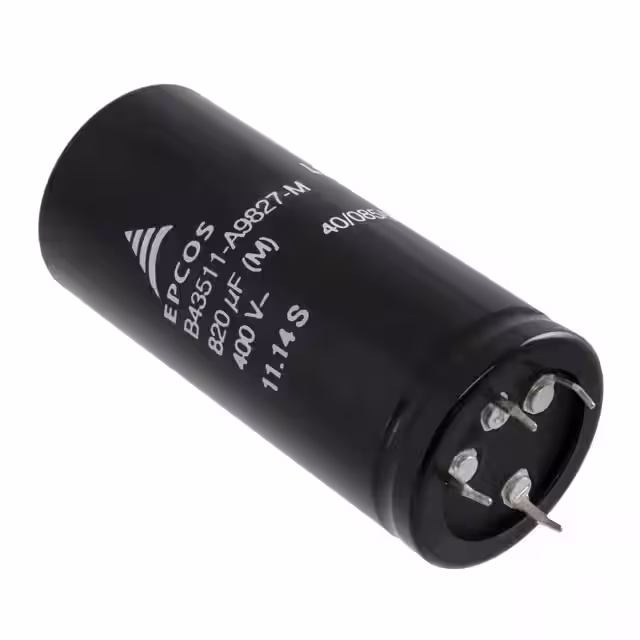

B43511A9827M000CAP ALUM 820UF 20% 400V SNAP |
3077 | 28.22 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43511 | Not For New Designs | 820 µF | ±20% | 400 V | 110mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | - | 130 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
PSU43015ACAP ALUM 430UF 125V QC TERM |
3256 | 35.16 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PSU | Active | 430 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 3.375 (85.73mm) | - | Chassis Mount |
|
UVK2D471MRDCAP ALUM 470UF 20% 200V RADIAL |
3459 | 5.26 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UVK | Not For New Designs | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LKX2W101MESA25CAP ALUM 100UF 20% 450V SNAP |
2066 | 5.26 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKX | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 690 mA @ 120 Hz | 986.7 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LNR2E222MSECAP ALUM 2200UF 20% 250V SCREW |
3950 | 30.80 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNR | Active | 2200 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.8 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
UBY1H272MHLCAP ALUM 2700UF 20% 50V RADIAL |
3555 | 5.28 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 2700 µF | ±20% | 50 V | 24mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 2.565 A @ 120 Hz | 3.42 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
|
UBY1E912MHLCAP ALUM 9100UF 20% 25V RADIAL |
3923 | 5.30 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 9100 µF | ±20% | 25 V | 19mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.341 A @ 120 Hz | 3.93 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
381LX183M025J052CAP ALUM 18000UF 20% 25V SNAP |
2949 | 5.34 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 381LX | Active | 18000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.5 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
228LBA100M2CGCAP ALUM 2200UF 20% 100V SNAP |
2979 | 5.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LBA | Active | 2200 µF | ±20% | 100 V | 150.70mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 4.2625 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
860040881012CAP ALUM 470UF 20% 100V RADIAL |
2946 | 7.21 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.6 A @ 100 kHz | 47 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

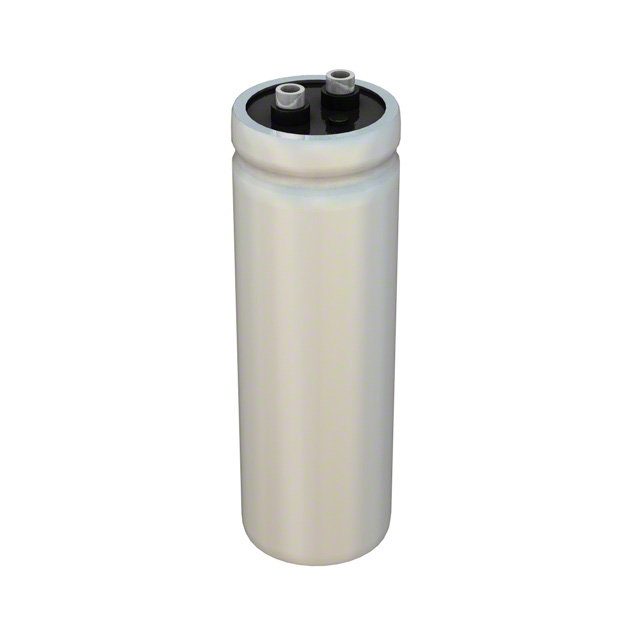

CG922U025R4CCAP ALUM 9200UF 25V SCREW |
2680 | 26.51 |
ДобавитьНемедленный |
Datenblatt |
Bulk,Bulk | CG | Active | 9200 µF | -10%, +75% | 25 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 8.625 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CGS123U040R4CCAP ALUM 12000UF 40V SCREW |
2474 | 32.82 |
ДобавитьНемедленный |
Datenblatt |
Bulk,Bulk | CGS | Active | 12000 µF | -10%, +75% | 40 V | 49mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 6.5 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
LKG1H153MKZSCAP ALUM 15000UF 20% 50V SOLDER |
2047 | 33.30 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKG | Active | 15000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 8.4 A @ 120 Hz | - | - | 0.709 (18.00mm) | 1.969 Dia (50.00mm) | 4.055 (103.00mm) | - | Through Hole |
|
MAL225631472E3CAP ALUM 4700UF 20% 50V SNAP |
3297 | 5.38 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 256 PMG-SI | Active | 4700 µF | ±20% | 50 V | 99mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UBX1H102MHLCAP ALUM 1000UF 20% 50V RADIAL |
2346 | 5.40 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBX | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 951.4 mA @ 120 Hz | 1.42 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
LGNW6181MELY45CAP ALUM 180UF 20% 420V SNAP |
3838 | 5.42 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGN | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LNR1V104MSECAP ALUM 100000UF 20% 35V SCREW |
2151 | 34.87 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNR | Active | 100000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.6 A @ 120 Hz | 13.8 A @ 10 kHz | - | 0.500 (12.70mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

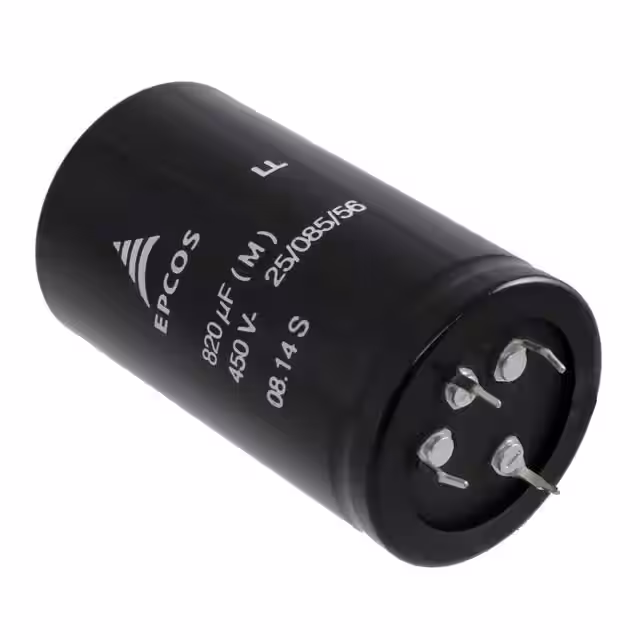

B43511A5827M000CAP ALUM 820UF 20% 450V SNAP |
2817 | 35.30 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43511 | Not For New Designs | 820 µF | ±20% | 450 V | 190mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | - | 200 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.835 (72.00mm) | - | Through Hole |
|

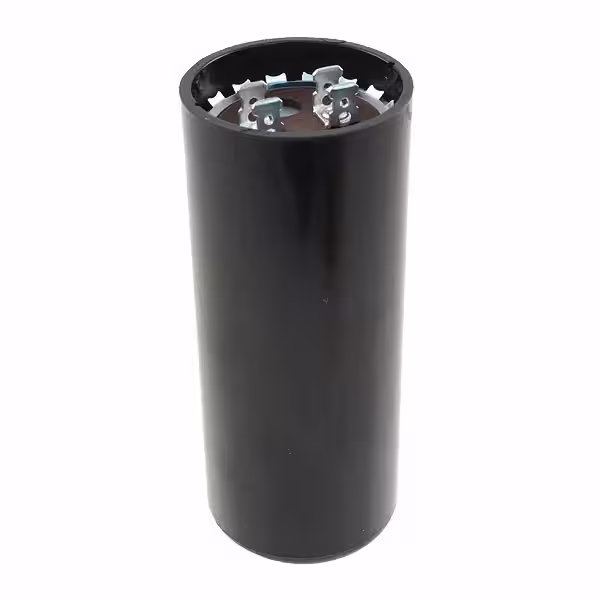

PSU54015BCAP ALUM 540UF 125V QC TERM |
2964 | 43.18 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PSU | Active | 540 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.435 (112.65mm) | - | Chassis Mount |
