Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TP0610K-T1-GE3MOSFET P-CH 60V 185MA SOT23-3 |
120508 | 0.52 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 185mA (Ta) | 4.5V, 10V | 6Ohm @ 500mA, 10V | 3V @ 250µA | 1.7 nC @ 15 V | ±20V | 23 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
SSM6J501NU,LFMOSFET P-CH 20V 10A 6UDFNB |
2272 | 0.52 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 1.5V, 4.5V | 15.3mOhm @ 4A, 4.5V | 1V @ 1mA | 29.9 nC @ 4.5 V | ±8V | 2600 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
![]() |
TP0610K-T1-E3MOSFET P-CH 60V 185MA SOT23-3 |
487467 | 0.52 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 185mA (Ta) | 4.5V, 10V | 6Ohm @ 500mA, 10V | 3V @ 250µA | 1.7 nC @ 15 V | ±20V | 23 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
IRLML6244TRPBFMOSFET N-CH 20V 6.3A SOT23 |
620162 | 0.53 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.3A (Ta) | 2.5V, 4.5V | 21mOhm @ 6.3A, 4.5V | 1.1V @ 10µA | 8.9 nC @ 4.5 V | ±12V | 700 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
IRLML2060TRPBFMOSFET N-CH 60V 1.2A SOT23 |
28299 | 0.53 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.2A (Ta) | 4.5V, 10V | 480mOhm @ 1.2A, 10V | 2.5V @ 25µA | 0.67 nC @ 4.5 V | ±16V | 64 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
NDS332PMOSFET P-CH 20V 1A SUPERSOT3 |
131883 | 0.52 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 2.7V, 4.5V | 300mOhm @ 1.1A, 4.5V | 1V @ 250µA | 5 nC @ 4.5 V | ±8V | 195 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
DMN65D8LW-7MOSFET N-CH 60V 300MA SOT323 |
14975 | 0.53 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 5V, 10V | 3Ohm @ 115mA, 10V | 2V @ 250µA | 0.87 nC @ 10 V | ±20V | 22 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
DMP3028LFDE-13MOSFET P-CH 30V 6.8A 6UDFN |
184548 | 0.49 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Ta) | 4.5V, 10V | 32mOhm @ 7A, 10V | 2.4V @ 250µA | 22 nC @ 10 V | ±20V | 1241 pF @ 15 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
CMPDM7002AG TR PBFREEMOSFET N-CH 60V 280MA SOT23 |
131120 | 0.54 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 250µA | - | 40V | 50 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
![]() |
DMP2123LQ-7MOSFET P-CH 20V 3A SOT23 |
48688 | 0.54 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 2.5V, 4.5V | 72mOhm @ 3.5A, 4.5V | 1.25V @ 250µA | 7.3 nC @ 4.5 V | ±12V | 443 pF @ 16 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
AO7401MOSFET P-CH 30V 1.4A SC70-3 |
45449 | 0.43 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 2.5V, 10V | 150mOhm @ 1.2A, 10V | 1.4V @ 250µA | 5.06 nC @ 4.5 V | ±12V | 409 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
DMN61D8L-7MOSFET N-CH 60V 470MA SOT23 |
232760 | 0.44 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 470mA (Ta) | 3V, 5V | 1.8Ohm @ 150mA, 5V | 2V @ 1mA | 0.74 nC @ 5 V | ±12V | 12.9 pF @ 12 V | - | 390mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |

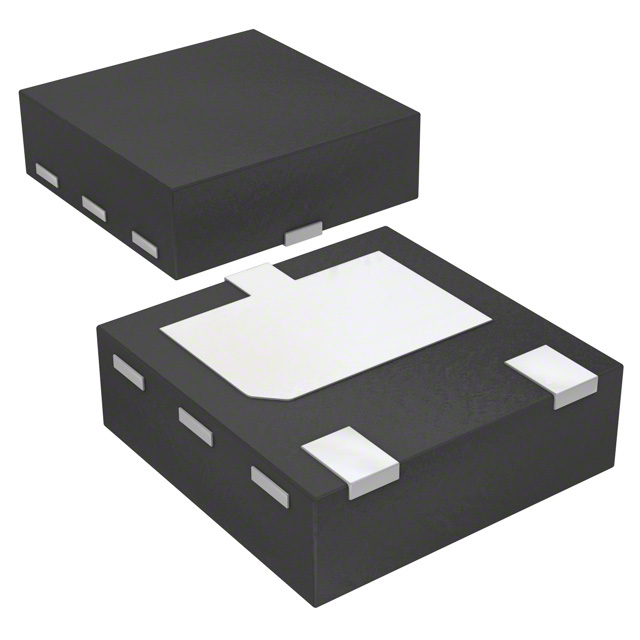

DMG3415UFY4Q-7MOSFET P-CH 16V 2.5A X2-DFN2015 |
100664 | 0.44 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 16 V | 2.5A (Ta) | 1.8V, 4.5V | 39mOhm @ 4A, 4.5V | 1V @ 250µA | 10 nC @ 4.5 V | ±8V | 282 pF @ 10 V | - | 650mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
BUK6D56-60EXMOSFET N-CH 60V 4A/11A 6DFN |
17435 | 0.56 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta), 11A (Tc) | 4.5V, 10V | 56mOhm @ 4A, 10V | 2.7V @ 250µA | 12 nC @ 10 V | ±20V | 435 pF @ 30 V | - | 2W (Ta), 15W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
![]() |
DMP3056LDM-7MOSFET P-CH 30V 4.3A SOT-26 |
166222 | 0.46 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.3A (Ta) | 4.5V, 10V | 45mOhm @ 5A, 10V | 2.1V @ 250µA | 21.1 nC @ 10 V | ±20V | 948 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
DMP6350S-7MOSFET P-CH 60V 1.5A SOT23 |
88345 | 0.47 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.5A (Ta) | 4.5V, 10V | 350mOhm @ 900mA, 10V | 3V @ 250µA | 4.1 nC @ 10 V | ±20V | 206 pF @ 30 V | - | 720mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
BSS87,115MOSFET N-CH 200V 400MA SOT89 |
136388 | 0.54 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 200 V | 400mA (Ta) | 10V | 3Ohm @ 400mA, 10V | 2.8V @ 1mA | - | ±20V | 120 pF @ 25 V | - | 580mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
IRLML0040TRPBFMOSFET N-CH 40V 3.6A SOT23 |
78630 | 0.48 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 3.6A (Ta) | 4.5V, 10V | 56mOhm @ 3.6A, 10V | 2.5V @ 25µA | 3.9 nC @ 4.5 V | ±16V | 266 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
![]() |
SSM3J130TU,LFMOSFET P-CH 20V 4.4A UFM |
262227 | 0.48 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.5V, 4.5V | 25.8mOhm @ 4A, 4.5V | 1V @ 1mA | 24.8 nC @ 4.5 V | ±8V | 1800 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
![]() |

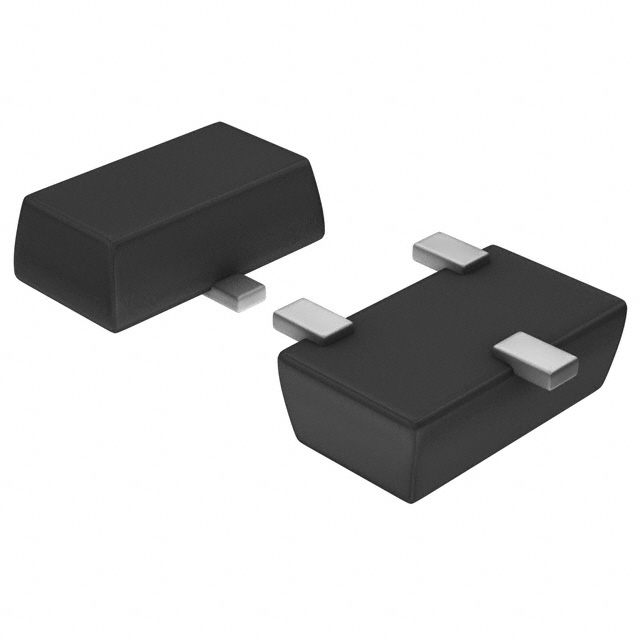

SSM3K2615R,LFMOSFET N-CH 60V 2A SOT23F |
52353 | 0.48 |
ДобавитьНемедленный |
![]() Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | π-MOSV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 3.3V, 10V | 300mOhm @ 1A, 10V | 2V @ 1mA | - | ±20V | 150 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
