| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OMIF-S-124LM,300RELAY GEN PURPOSE SPST 20A 24V |
2269 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | OMIF, OEG | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 30VDC - Max | 22.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-124L,000RELAY GEN PURPOSE SPDT 16A 24V |
2633 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | OMIH, OEG | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
1-1461766-0RELAY GEN PURPOSE SPDT 10A 24V |
2359 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | OUDH, OEG | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 110VDC - Max | 20.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
PRD-11AG0-277RELAY GEN PURPOSE DPDT 30A 277V |
3897 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 277VAC | DPDT (2 Form C) | 30 A | 240VAC - Nom | 35.4 mA | Non Latching | - | Screw Terminal | - | Class B | 235.5 VAC | 27.7 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-11AH0-208RELAY GEN PURPOSE DPDT 20A 208V |
2409 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 208VAC | DPDT (2 Form C) | 20 A | 125VDC - Nom | 41.7 mA | Non Latching | - | Screw Terminal | - | Class B | 176.8 VAC | 20.8 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) |
|
|
PRD-11AK1-24RELAY GEN PURPOSE DPDT 24V |
2351 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | - | - | 410 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | 2.4 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-11DG0-125RELAY GEN PURPOSE DPDT 30A 125V |
2530 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 125VDC | DPDT (2 Form C) | 30 A | 240VAC - Nom | 16 mA | Non Latching | - | Screw Terminal | - | Class B | 93.75 VDC | 12.5 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-4AG0-240RELAY GEN PURPOSE 30A 240V |
3598 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Obsolete | Chassis Mount | 240VAC | - | 30 A | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-5DY0-75RELAY GEN PURPOSE SPDT 25A 75V |
2398 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 75VDC | SPDT (1 Form C) | 25 A | 277VAC - Nom | 26.7 mA | Non Latching | - | Screw Terminal | - | Class B | 56.25 VDC | 7.5 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) |
|
PRD-7DH0-48RELAY GEN PURPOSE DPST 20A 48V |
3198 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 20 A | 125VDC - Nom | 41.7 mA | Non Latching | - | Screw Terminal | - | Class B | 36 VDC | 4.8 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) |
|
R10-E1L2-115VRELAY GEN PURPOSE DPDT 7.5A 115V |
2797 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Active | Socketable | 115VAC | DPDT (2 Form C) | 7.5 A | 120VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) |
|
|
R10-E1L4-115VRELAY GEN PURPOSE 4PDT 7.5A 115V |
2388 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Active | Socketable | 115VAC | 4PDT (4 Form C) | 7.5 A | 120VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) |
|
|
5-1393765-2RELAY GEN PURPOSE 4PDT 7.5A 24V |
3549 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 7.5 A | 120VAC, 30VDC - Max | 13.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) |
|
|
R10-E4172-1RELAY DRY CIR 8A PCB |
2583 | 0.00 |
ДобавитьНемедленный |
Bulk | R10 | Obsolete | - | - | 7PDT (7 Form C) | - | - | - | Non Latching | - | - | - | - | - | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | |
|
|
R10-E5827-1RELAY DRY CIR |
2268 | 0.00 |
ДобавитьНемедленный |
Bulk | R10 | Obsolete | - | - | DPDT (2 Form C) | - | - | - | Non Latching | - | - | - | - | - | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | |
|
|
R10-E6400-1RELAY DRY CIR |
3590 | 0.00 |
ДобавитьНемедленный |
Bulk | R10 | Obsolete | Socketable | - | - | - | - | - | Non Latching | - | Plug In | - | - | - | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | |
|
|
R10-R0004-1RELAY DRY CIR |
3144 | 0.00 |
ДобавитьНемедленный |
Bulk | R10 | Obsolete | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | |
|
|
R10-T1P2-V700RELAY GEN PURPOSE DPDT 3A 24V |
2953 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | R10 | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC, 30VDC - Max | 34.3 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|

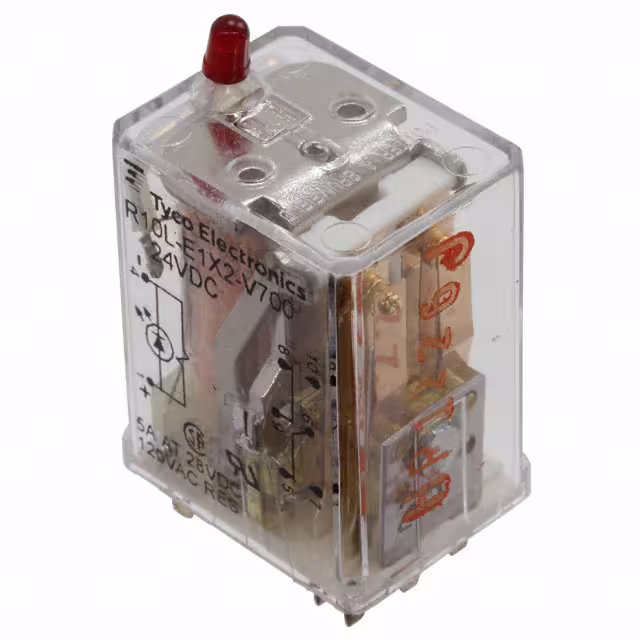

R10L-E1X2-V700RELAY GEN PURPOSE DPDT 5A 24V |
3334 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | R10 | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 120VAC, 30VDC - Max | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|
|
R10S-0069-2RELAY DRY CIR |
3810 | 0.00 |
ДобавитьНемедленный |
Bulk | R10S | Obsolete | - | 115VAC | - | - | - | 12.8 mA | Non Latching | - | - | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) |
