| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM602012RELAY GEN PURPOSE 3PST 10A 12V |
2475 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 12VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 140 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9 VDC | 1.2 VDC | 20 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|

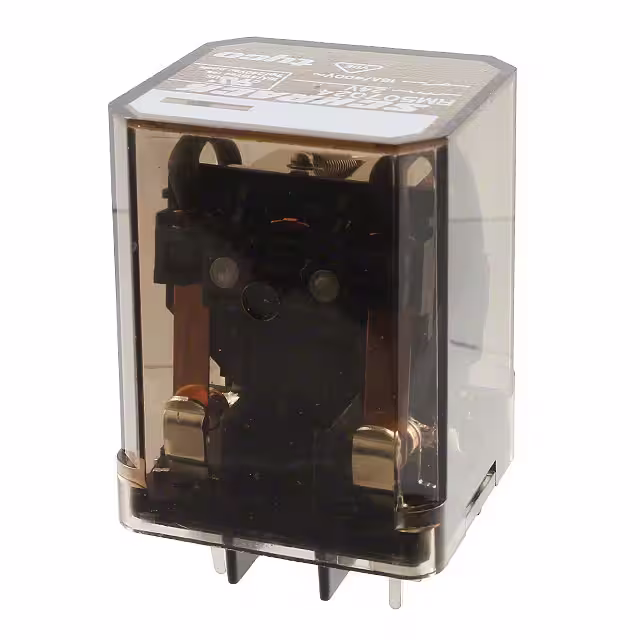

RM507024RELAY GEN PURPOSE DPST 16A 24V |
3064 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 70.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
9400-03Q1999RELAY GEN PURPOSE SPDT 18A 24V |
3896 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
|
|
RM202506RELAY GEN PURPOSE DPDT 16A 6V |
2286 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 4.8 VAC | 1.8 VAC | - | - | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
RY610048RELAY GEN PURPOSE SPDT 8A 48V |
3745 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RY, SCHRACK | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 5.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
9400-04T1999RELAY GEN PURPOSE SPDT 18A 120V |
3865 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 120VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 102 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
|
|
9400-04U1999RELAY GEN PURPOSE SPDT 18A 240V |
2088 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 240VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 204 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
|
RY210005RELAY GEN PURPOSE SPDT 8A 5V |
2848 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RY, SCHRACK | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
9400-03T1999RELAY GEN PURPOSE SPDT 18A 120V |
3976 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 120VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 102 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
|
SRUDH-SH-112DM1,000RELAY GEN PURPOSE SPST 12A 12V |
3334 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | SRUDH, OEG | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
PCKWK-124D2M,000RELAY GEN PURPOSE SPST 16A 24V |
2742 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | PCKWK, OEG | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 75 mA | Latching, Dual Coil | - | PC Pin | - | - | 18 VDC | - | 10 ms | 10 ms | -30°C ~ 70°C | Silver Alloy |
|
|
PCKWK-112D2M,000RELAY GEN PURPOSE SPST 16A 12V |
3708 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | PCKWK, OEG | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 150 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 10 ms | 10 ms | -30°C ~ 70°C | Silver Alloy |
|
|
PCI-205DMH,000RELAY GEN PURPOSE DPST 3A 5V |
2315 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | PCI, OEG | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 50VDC - Max | 69.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Alloy |
|
|
PCE-112D1MH,000RELAY GEN PURPOSE SPST 10A 12V |
2452 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PCE, OEG | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

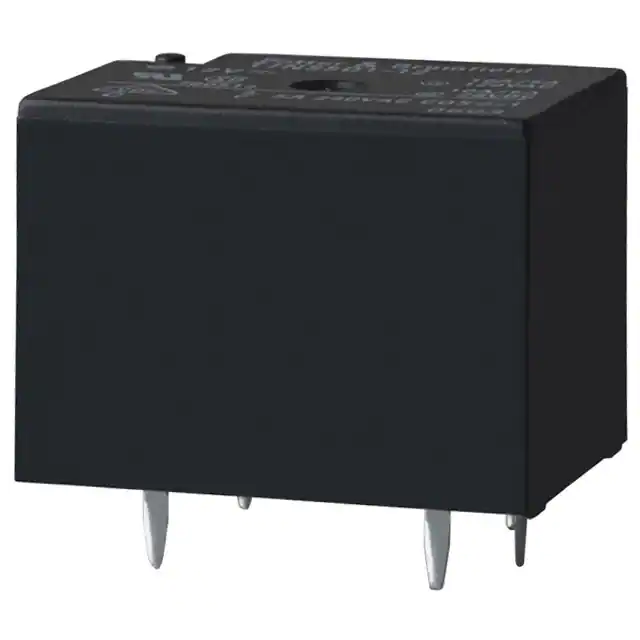

T7NS5D1-18RELAY GEN PURPOSE SPDT 10A 18V |
3314 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T7N | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 12.6 VDC | 1.8 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
MT328230RELAY GEN PURPOSE 3PDT 10A 230V |
3215 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MT, SCHRACK | Obsolete | Socketable | 230VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | - | Non Latching | Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 184 VAC | 92 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
|
9400-14Q1999RELAY GEN PURPOSE SPDT 18A 24V |
2134 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 9400, Products Unlimited | Obsolete | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy |
|
|
MT3211B0RELAY GEN PURPOSE 3PDT 10A 110V |
3025 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MT, SCHRACK | Obsolete | Socketable | 110VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 11 mA | Non Latching | Diode, Test Button | Plug In, 11 Pin (Octal) | - | - | 82.5 VDC | 11.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
T90S5D12-48RELAY GEN PURPOSE SPDT 20A 48V |
2722 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | T90 | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 240VAC, 28VDC - Max | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T90S5D12-18RELAY GEN PURPOSE SPDT 20A 18V |
2535 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | T90 | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 20 A | 240VAC, 28VDC - Max | 47 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
