| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S87R5A2B1D1-120RELAY GEN PURPOSE SPDT 20A 120V |
2940 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | S87R | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 33 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
S89R11AAC1-24RELAY IMPULSE DPDT 15A 24V |
3198 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | S89R | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 375 mA | Latching, Single Coil | - | Quick Connect - 0.187 (4.7mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - |
|
|
S87R5A2B1D1-24RELAY GEN PURPOSE SPDT 20A 24V |
3170 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | S87R | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 165 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
|
S87R7A2B1D1-24RELAY GEN PURPOSE DPST 20A 24V |
2254 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | S87R | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 20 A | 277VAC - Max | 165 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
MT221110RELAY GEN PURPOSE DPDT 10A 110V |
3763 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 11 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 82.5 VDC | 11.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|

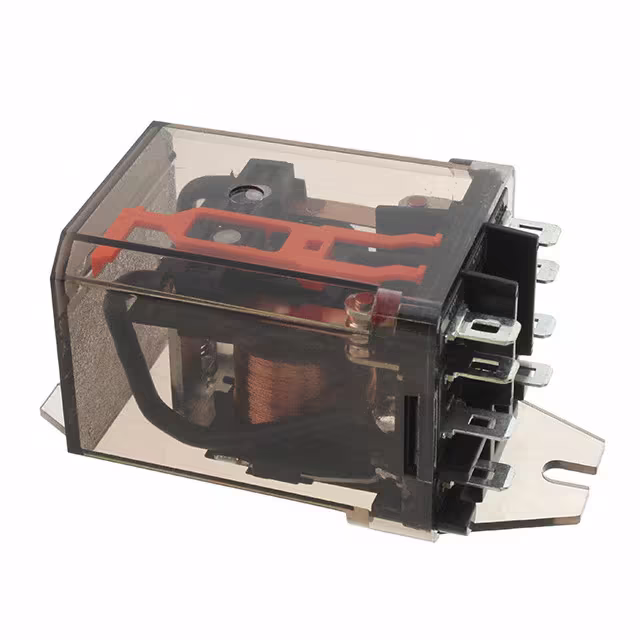

RM203012RELAY GEN PURPOSE DPDT 16A 12V |
2052 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 109 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
RM202524RELAY GEN PURPOSE DPDT 16A 24V |
2972 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
|
MT231024RELAY GEN PURPOSE DPDT 10A 24V |
2703 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 50 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
RM203110RELAY GEN PURPOSE DPDT 16A 110V |
2598 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 110VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 10.9 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
MT228024RELAY GEN PURPOSE DPDT 10A 24V |
2883 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | - | Non Latching | Lighted Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 9.6 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
|
MT221220RELAY GEN PURPOSE DPDT 10A 220V |
2619 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 220VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 5.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
RM203024RELAY GEN PURPOSE DPDT 16A 24V |
2448 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 50 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM203524RELAY GEN PURPOSE DPDT 16A 24V |
2382 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
RM607024RELAY GEN PURPOSE 3PST 10A 24V |
2567 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 24VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 70.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|

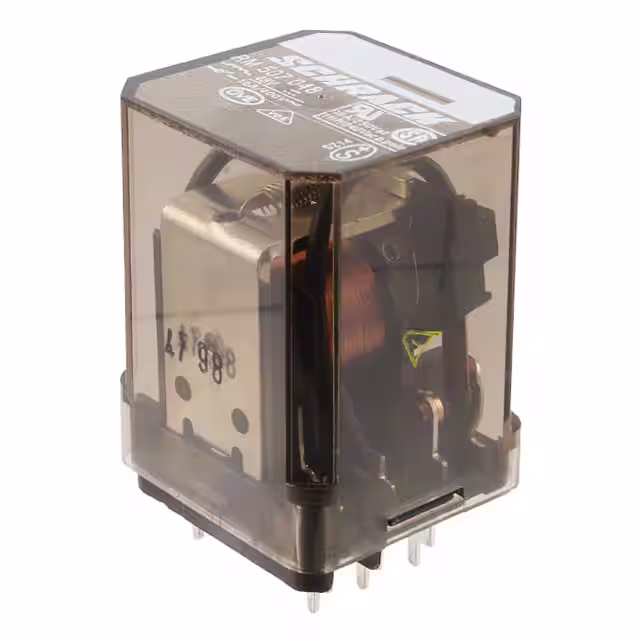

RM507048RELAY GEN PURPOSE DPST 16A 48V |
3688 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 48VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 35.4 mA | Non Latching | - | PC Pin | - | - | 36 VDC | 4.8 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM507012RELAY GEN PURPOSE DPST 16A 12V |
2738 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 140 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 20 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM302524RELAY GEN PURPOSE 3PDT 10A 24V |
2628 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|

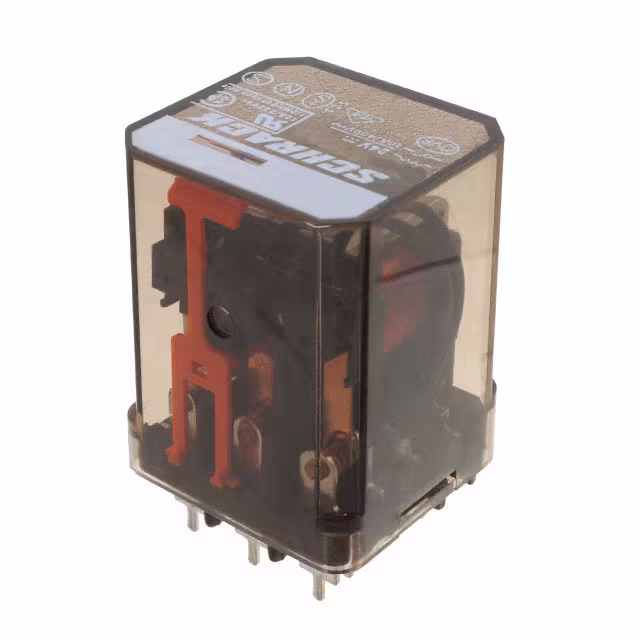

RM307024RELAY GEN PURPOSE 3PDT 10A 24V |
2924 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 50 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM203615RELAY GEN PURPOSE DPDT 16A 115V |
2737 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 115VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM302012RELAY GEN PURPOSE 3PDT 10A 12V |
2912 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 109 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
Запрос котировок
