| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM702524RELAY GEN PURPOSE 3PDT 16A 24V |
3816 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM702615RELAY GEN PURPOSE 3PDT 16A 115V |
2618 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
RM705615RELAY GEN PURPOSE 3PDT 16A 115V |
3641 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 115VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.250 (6.3mm) | - | - | 92 VAC | 34.5 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
RE030006RELAY GEN PURPOSE SPST 6A 6V |
2351 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RE030048RELAY GEN PURPOSE SPST 6A 48V |
2832 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 4.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RE032005RELAY GEN PURPOSE SPST 6A 5V |
3105 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
RE032006RELAY GEN PURPOSE SPST 6A 6V |
3033 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
RE032012RELAY GEN PURPOSE SPST 6A 12V |
3848 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|
|
RE032024RELAY GEN PURPOSE SPST 6A 24V |
2141 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|

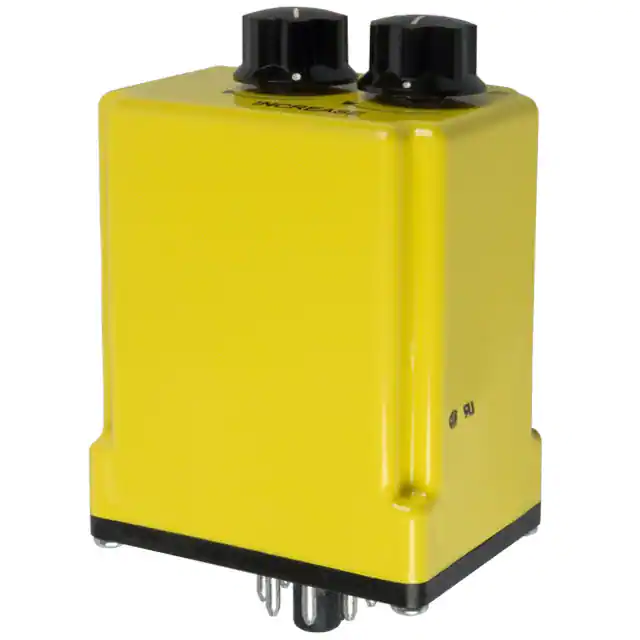

CSL-38-60010RELAY GEN PURPOSE DPDT 10A 110V |
3161 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | CS | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - |
|
PB134006RELAY GEN PURPOSE SPST 10A 6V |
3384 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | PB, SCHRACK | Discontinued at Mosen | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 60 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.6 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
G9EA-1-CA-DC60RELAY GEN PURPOSE SPST 30A 60V |
3549 | 330.13 |
ДобавитьНемедленный |
Datenblatt |
Bulk,Bulk | G9EA-1 | Obsolete | Chassis Mount | 60VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 86.2 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 45 VDC | 4.8 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - |
|

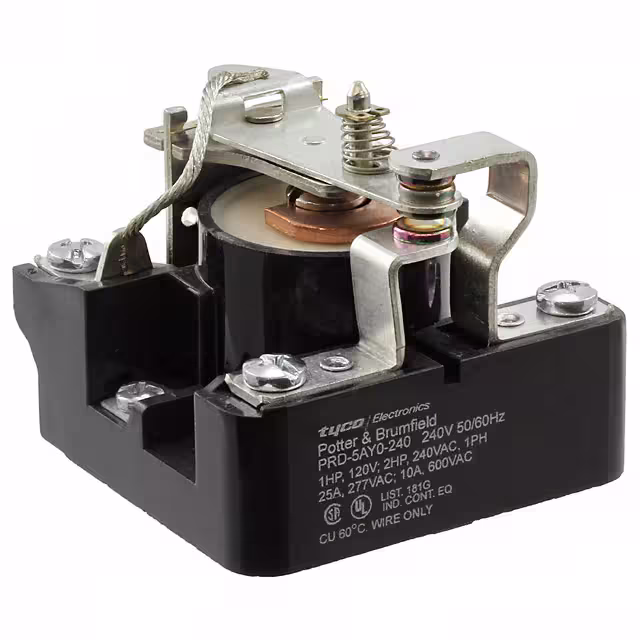

PRD-5AY0-240RELAY GEN PURPOSE SPDT 25A 240V |
3436 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 25 A | 277VAC - Nom | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) |
|
KRP-11AG-24RELAY GEN PURPOSE DPDT 10A 24V |
3030 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KRP | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
|
KRP-14AG-120RELAY GEN PURPOSE 3PDT 10A 120V |
2839 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KRP | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 17.5 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
KRPA-11AG-6RELAY GEN PURPOSE DPDT 10A 6V |
3106 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | KRPA | Active | Socketable | 6VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 335 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 5.1 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
MT221012RELAY GEN PURPOSE DPDT 10A 12V |
3011 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 109 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
|
MT226024RELAY GEN PURPOSE DPDT 10A 24V |
3738 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | - | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 9.6 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
|
MT226230RELAY GEN PURPOSE DPDT 10A 230V |
3658 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | MT, SCHRACK | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | - | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 184 VAC | 92 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
|
MT326115RELAY GEN PURPOSE 3PDT 10A 115V |
3076 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MT, SCHRACK | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | - | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | - | 92 VAC | 46 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
