| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7CS5D-05RELAY GEN PURPOSE SPDT 12A 5V |
3889 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T7C | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
G7P-2-DC24RELAY GEN PURPOSE DPDT 10A 24V |
2861 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G7P | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | - | - | - | - | - | - | - | - | - | - | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1S-ASI-DC12RELAY GEN PURPOSE SPDT 10A 12V |
2641 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G2RS | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 43.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - |
|
G8P-1AP DC12RELAY GEN PURPOSE SPST 30A 12V |
2621 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1AP DC24RELAY GEN PURPOSE SPST 30A 24V |
3182 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1AP DC5RELAY GEN PURPOSE SPST 30A 5V |
2048 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
G8P-1A4P DC12RELAY GEN PURPOSE SPST 30A 12V |
2692 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4P DC24RELAY GEN PURPOSE SPST 30A 24V |
3318 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1A4P DC5RELAY GEN PURPOSE SPST 30A 5V |
2515 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 185 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC12RELAY GEN PURPOSE SPDT 10A 12V |
2620 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|
|
G8P-1C4P DC24RELAY GEN PURPOSE SPDT 10A 24V |
3556 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G8P | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) |
|

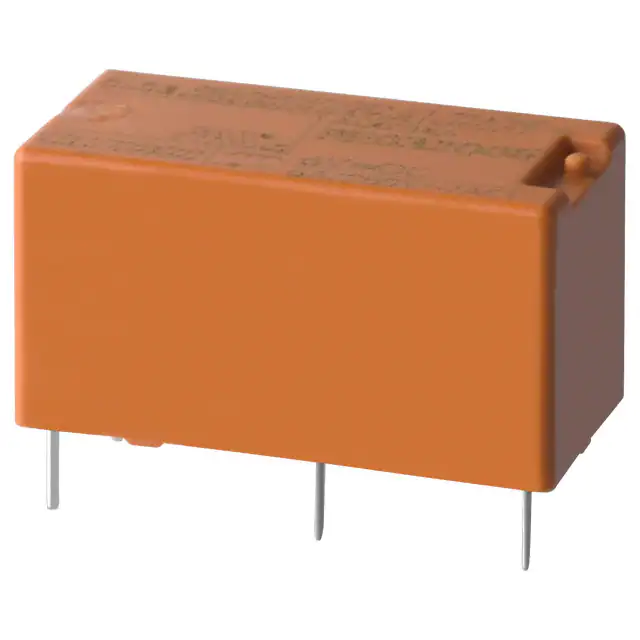

RE030005RELAY GEN PURPOSE SPST 6A 5V |
3919 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RE030012RELAY GEN PURPOSE SPST 6A 12V |
2927 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
RE030024RELAY GEN PURPOSE SPST 6A 24V |
2879 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | RE, SCHRACK | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
T73S5D15-05RELAY GEN PURPOSE SPDT 10A 5V |
3612 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T73 | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 120VAC, 28VDC - Max | 89 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.25 VDC | 0.25 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
T73S5D15-12RELAY GEN PURPOSE SPDT 10A 12V |
3423 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T73 | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 120VAC, 28VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 7.8 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
T73S5D15-24RELAY GEN PURPOSE SPDT 10A 24V |
2280 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T73 | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 120VAC, 28VDC - Max | 20.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 15.6 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
T7NS5D1-05RELAY GEN PURPOSE SPDT 10A 5V |
3132 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T7N | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T7NS5D1-12RELAY GEN PURPOSE SPDT 10A 12V |
2820 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T7N | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T7NS5D1-24RELAY GEN PURPOSE SPDT 10A 24V |
2704 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tube | T7N | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
