| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6EU-134P-US DC5RELAY GEN PURPOSE SPDT 3A 5V |
3840 | 6.02 |
ДобавитьНемедленный |
Bulk | G6E | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | |
|
|
G6EU-134P-US DC9RELAY GEN PURPOSE SPDT 3A 9V |
3368 | 6.02 |
ДобавитьНемедленный |
Bulk | G6E | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 22.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | |
|
|
RM84-2022-35-1060RELAY GEN PURPOSE DPST 8A 60V |
3320 | 6.02 |
ДобавитьНемедленный |
Bulk | RM84 | Active | Through Hole | 60VDC | DPST-NO (2 Form A) | 8 A | 440VAC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 42 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM85-2011-35-1005RELAY GEN PURPOSE SPDT 16A 5V |
2498 | 6.02 |
ДобавитьНемедленный |
Bulk | RM85 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 83.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM85-2011-35-1006RELAY GEN PURPOSE SPDT 16A 6V |
2528 | 6.02 |
ДобавитьНемедленный |
Bulk | RM85 | Active | Through Hole | 6VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM85-2011-35-1009RELAY GEN PURPOSE SPDT 16A 9V |
3147 | 6.02 |
ДобавитьНемедленный |
Bulk | RM85 | Active | Through Hole | 9VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM87N-2011-35-1005RELAY GEN PURPOSE SPDT 12A 5V |
2150 | 6.02 |
ДобавитьНемедленный |
Bulk | RM87N | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 440VAC - Max | 83.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM87N-2011-35-1006RELAY GEN PURPOSE SPDT 12A 6V |
3311 | 6.02 |
ДобавитьНемедленный |
Bulk | RM87N | Active | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 440VAC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
RM87N-2011-35-1009RELAY GEN PURPOSE SPDT 12A 9V |
2105 | 6.02 |
ДобавитьНемедленный |
Bulk | RM87N | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 440VAC - Max | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
T9AS5L22-48RELAY GEN PURPOSE SPDT 20A 48V |
2593 | 6.03 |
ДобавитьНемедленный |
Datenblatt |
Bulk | T9A | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
T9AP1D52-110RELAY GEN PURPOSE SPST 30A 110V |
2647 | 6.04 |
ДобавитьНемедленный |
Datenblatt |
Bulk | T9A | Active | Chassis Mount | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 9 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
G6C-1114P-US-DC6RELAY GEN PURPOSE SPST 10A 6V |
3457 | 6.05 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G6C | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|

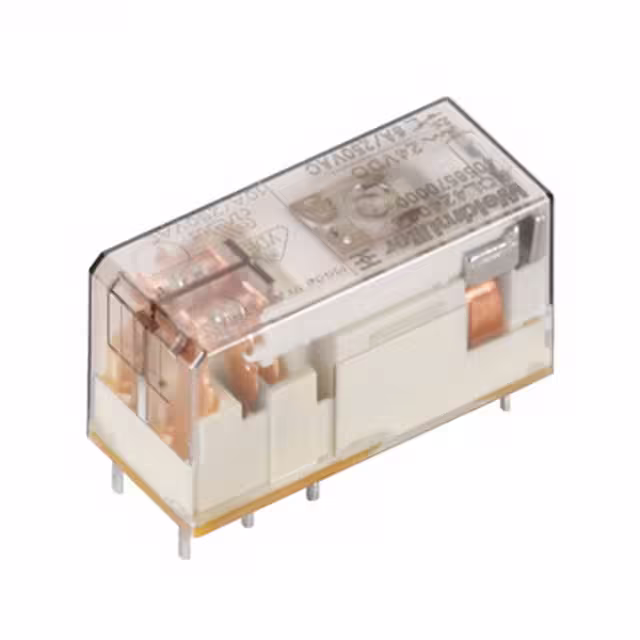

8693790000RELAY GEN PURPOSE DPDT 8A 5V |
3343 | 6.07 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RCL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 7 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|

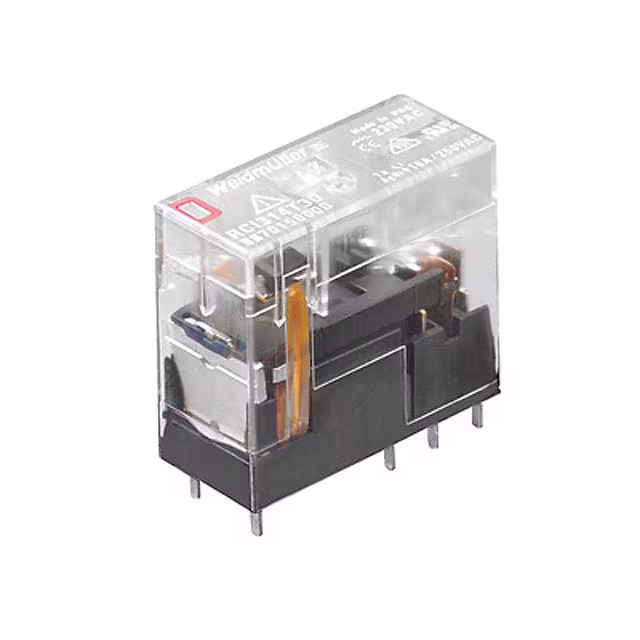

8869820000RELAY GEN PURPOSE SPDT 16A 48V |
2344 | 6.07 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RCI | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 8.7 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
8869840000RELAY GEN PURPOSE SPDT 16A 24V |
3690 | 6.07 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RCI | Active | Through Hole | 24VAC | SPDT (1 Form C) | 16 A | 250VAC - Max | 31.6 mA | Non Latching | - | PC Pin | - | - | 18 VAC | 3.6 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
T9AS5D22-48RELAY GEN PURPOSE SPDT 20A 48V |
3421 | 6.08 |
ДобавитьНемедленный |
Datenblatt |
Bulk | T9A | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 20.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
G6B-1184P-USDC24RELAY GEN PURPOSE SPST 8A 24V |
2034 | 6.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | G6B | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
40.31.7.012.0001RELAY GEN PURPOSE SPDT 10A 12V |
3905 | 6.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 40 | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 42 mA | Non Latching | - | Plug In | - | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
40.31.9.012.0001RELAY GEN PURPOSE SPDT 10A 12V |
3425 | 6.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 40 | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 55 mA | Non Latching | - | Plug In | - | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
40.31.9.024.0001RELAY GEN PURPOSE SPDT 10A 24V |
3409 | 6.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 40 | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 27 mA | Non Latching | - | Plug In | - | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
