Производитель. Часть #	Акции	Цены	А	Таблицы данных	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J116F11AW5VDCS1.5 RELAY SPST N.O. 5VDC 50A WIDE PC CIT Relay and Switch	3019	4.12	- + Добавить Немедленный	Datenblatt	Tube	J116F1	Active	Through Hole	5VDC	SPST-NO (1 Form A)	50 A	277VAC - Max	294.1 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	15 ms	10 ms	-40°C ~ 125°C	Silver Tin Oxide (AgSnO)
J116F11AW12VDCS1.5 RELAY SPST N.O. 12VDC 50A WIDE P CIT Relay and Switch	2276	4.12	- + Добавить Немедленный	Datenblatt	Tube	J116F1	Active	Through Hole	12VDC	SPST-NO (1 Form A)	50 A	277VAC - Max	125 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	15 ms	10 ms	-40°C ~ 125°C	Silver Tin Oxide (AgSnO)
AZ2280-1C-208AEF RELAY GEN PURPOSE SPDT 20A 208V American Zettler	2321	4.13	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Chassis Mount	208VAC	SPDT (1 Form C)	20 A	277VAC, 28VDC - Max	18.9 mA	Non Latching	-	Quick Connect - 0.187/0.250	Sealed - Fully	Class F	176.8 VAC	41.6 VAC	15 ms	10 ms	-55°C ~ 60°C	Silver Cadmium Oxide (AgCdO)
ALZ11F48 RELAY GEN PURPOSE SPDT 16A 48V Panasonic Electric Works	2778	4.13	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPDT (1 Form C)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
JW2SN-DC60V RELAY GEN PURPOSE DPDT 5A 60V Panasonic Electric Works	2928	4.20	- + Добавить Немедленный	Datenblatt	Box	JW	Active	Through Hole	60VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	-	Non Latching	-	PC Pin	Sealed - Fully	Class E	42 VDC	6 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
ALZ51B48T RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	2304	4.20	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ52B48T RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	2737	4.20	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ52F48 RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	2772	4.20	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
R49-5D12-24 RELAY GEN PURPOSE SPDT 12A 24V NTE Electronics, Inc	2006	4.22	- + Добавить Немедленный	Datenblatt	Bulk	R49	Active	-	24VDC	SPDT (1 Form C)	12 A	-	-	-	-	PC Pin	-	-	-	-	-	-	-40°C ~ 85°C	-

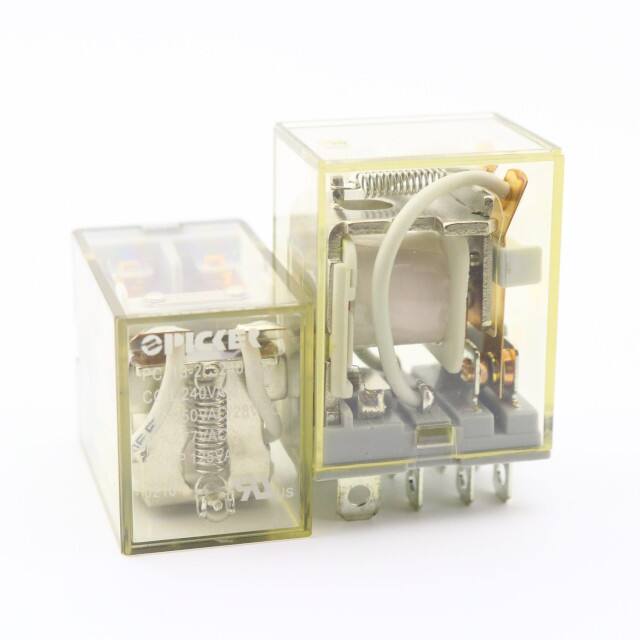

PC113-2C-240A-X RELAY GEN PURPOSE DPDT 12A 240V Picker Components	3649	4.25	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Socketable	240VAC	DPDT (2 Form C)	12 A	250VAC, 28VDC - Max	12.6 mA	Non Latching	-	Solder Lug	-	Class F	192 VAC	72 VAC	25 ms	25 ms	-40°C ~ 70°C	Silver Cadmium Oxide (AgCdO)
ALZ52B48 RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	3931	4.25	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ51F48T RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	2708	4.28	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZ52F48T RELAY GEN PURPOSE SPST 16A 48V Panasonic Electric Works	3746	4.28	- + Добавить Немедленный	Datenblatt	Tube	ALZ	Active	Through Hole	48VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
DSP1-DC9V-R-F RELAY GEN PURPOSE DPST 5A 9V Panasonic Electric Works	2606	4.29	- + Добавить Немедленный	Datenblatt	Tube	DSP	Active	Through Hole	9VDC	DPST-NO/NC (1 Form A, 1 Form B)	5 A	250VAC, 30VDC - Max	33.3 mA	Non Latching	Reverse Polarity	PC Pin	Sealed - Fully	-	7.2 VDC	0.9 VDC	10 ms	5 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
PC113-2C-P-120A-X RELAY GEN PURPOSE DPDT 12A 120V Picker Components	3792	4.30	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Through Hole	120VAC	DPDT (2 Form C)	12 A	250VAC, 28VDC - Max	26.4 mA	Non Latching	-	PC Pin	-	Class F	96 VAC	36 VAC	25 ms	25 ms	-40°C ~ 70°C	Silver Cadmium Oxide (AgCdO)
R49-5D16-12 RELAY GEN PURPOSE SPDT 16A 12V NTE Electronics, Inc	3144	4.33	- + Добавить Немедленный	Datenblatt	Bulk	R49	Active	-	12VDC	SPDT (1 Form C)	16 A	-	-	-	-	PC Pin	-	-	-	-	-	-	-40°C ~ 85°C	-

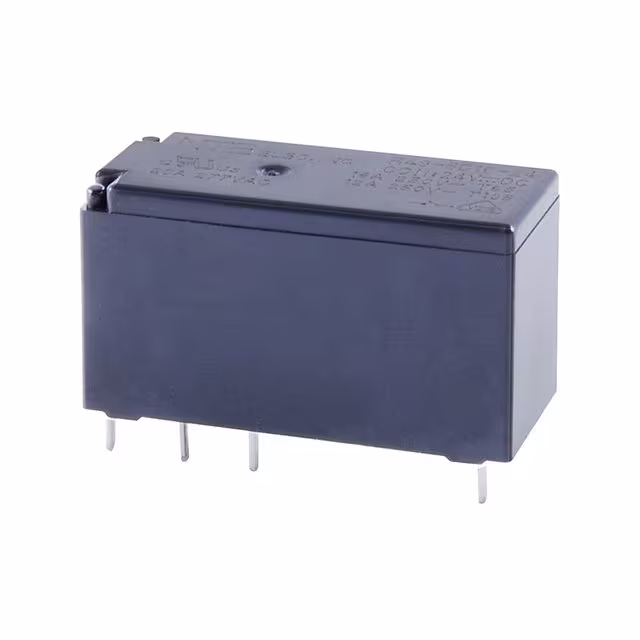

R49-5D16-24 RELAY GEN PURPOSE SPDT 16A 24V NTE Electronics, Inc	2341	4.33	- + Добавить Немедленный	Datenblatt	Bulk	R49	Active	-	24VDC	SPDT (1 Form C)	16 A	-	-	-	-	PC Pin	-	-	-	-	-	-	-40°C ~ 85°C	-
PC118-4C-120A-X RELAY GEN PURPOSE 4PDT 5A 120V Picker Components	2273	4.38	- + Добавить Немедленный	Datenblatt	Tray	-	Active	Socketable	120VAC	4PDT (4 Form C)	5 A	220VAC, 28VDC - Max	26.4 mA	Non Latching	-	Solder Lug	-	-	96 VAC	36 VAC	25 ms	25 ms	-55°C ~ 70°C	Silver Cadmium Oxide (AgCdO)

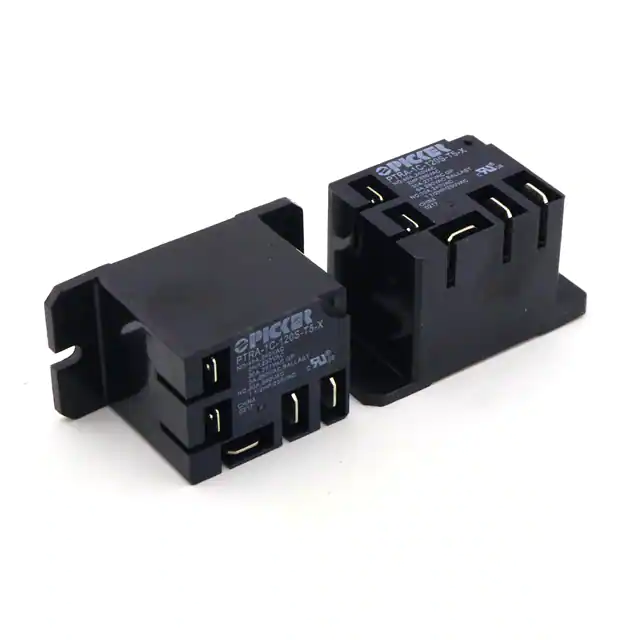

PTRA-1C-120S-T5-X RELAY GEN PURPOSE SPDT 40A 120V Picker Components	2343	4.41	- + Добавить Немедленный	Datenblatt	Tube	-	Active	Chassis Mount	120VAC	SPDT (1 Form C)	40 A	300VAC, 110VDC - Max	16.6 mA	Non Latching	-	Quick Connect - 0.187/0.250	-	Class F	90 VAC	36 VAC	15 ms	10 ms	-55°C ~ 100°C	Silver Cadmium Oxide (AgCdO)

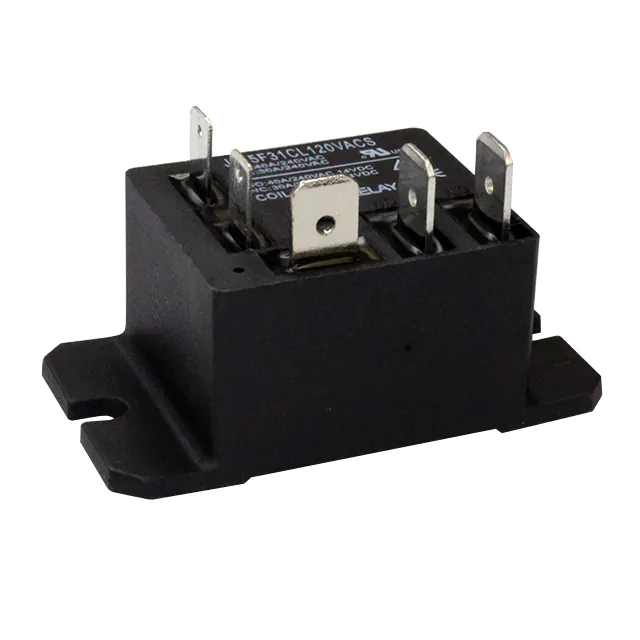

J115F31CL120VACS RELAY GEN PURPOSE SPDT 40A 120V CIT Relay and Switch	2895	4.41	- + Добавить Немедленный	Datenblatt	Tray	J115F3	Active	Chassis Mount	120VAC	SPDT (1 Form C)	40 A	277VAC, 110VDC - Max	39.5 mA	Non Latching	-	Quick Connect - 0.187/0.250	Sealed - Fully	Class F	90 VAC	36 VAC	15 ms	10 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
