| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SST-90-W57S-F11-GN200BIG CHIP LED HB MODULE WHITE |
2670 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SST-90 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | - | 3.15A | - | 3.25V | - | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
PT-120-B-C11-EPABIG CHIP LED HB MODULE BLUE |
2993 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | PT-120 | Obsolete | LED Module | Blue | - | 464nm | Rectangle | 435lm (Typ) | 18A | 40°C | 4.4V | 5 lm/W | - | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W |
|
SSR-90-W45S-R11-N2401BIG CHIP LED HB MODULE WHITE |
2957 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SSR-90 | Obsolete | LED Module | White, Neutral | 4500K | - | Starboard | 925lm (900lm ~ 950lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 9A | 70 | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia |
|
|
SST-90-W57S-F11-N2200BIG CHIP LED HB MODULE WHITE |
3805 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SST-90 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 925lm (900lm ~ 950lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
|
SST-90-W57S-F11-N3200BIG CHIP LED HB MODULE WHITE |
2152 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SST-90 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
|
SST-90-W45S-F11-GN400BIG CHIP LED HB MODULE WHITE |
3348 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SST-90 | Obsolete | Chip On Board (COB) | White, Neutral | 4500K | - | Square | - | 3.15A | - | 3.25V | - | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
|
SST-90-W45S-F11-N2400BIG CHIP LED HB MODULE WHITE |
2281 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SST-90 | Obsolete | Chip On Board (COB) | White, Neutral | 4500K | - | Square | 925lm (900lm ~ 950lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia |
|
|
SSR-90-W65S-R11-GN100BIG CHIP LED HB MODULE WHITE |
3364 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SSR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | 3.15A | - | 3.25V | - | 9A | 70 | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia |
|
|
SSR-90-W65S-R11-N2100BIG CHIP LED HB MODULE WHITE |
3977 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SSR-90 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 925lm (900lm ~ 950lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 9A | 70 | 100° | - | 19.90mm L x 19.90mm W | 7.10mm | 8.00mm Dia |
|
CBT-120-B-C11-KM301BIG CHIP LED HB MODULE BLUE |
3792 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CBT-120 | Obsolete | LED Module | Blue | - | 463nm (455nm ~ 470nm) | Square | - | 18A | - | 4.1V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W |
|

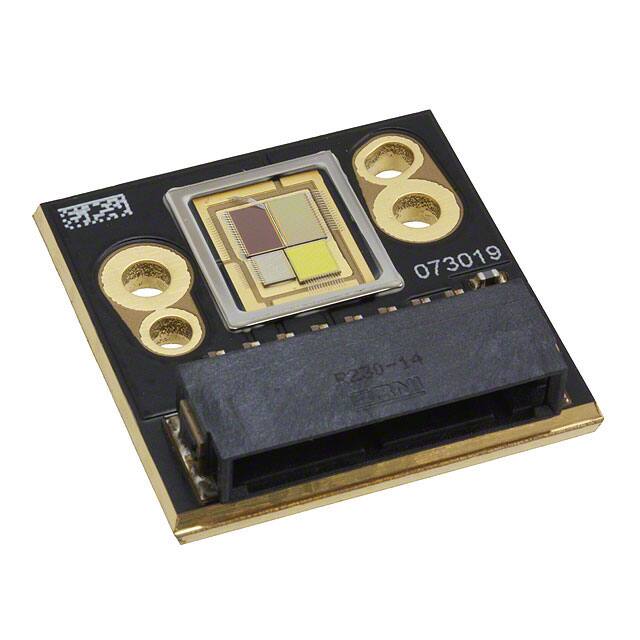

CBM-380-RGBW-D11-QF100BIG CHIP LED HB MODULE RGB, WHT |
3031 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CBM-380 | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6500K | 624nm Red, 533nm Green, 464nm Blue | Square | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | - | With Connector | - | - | - |
|

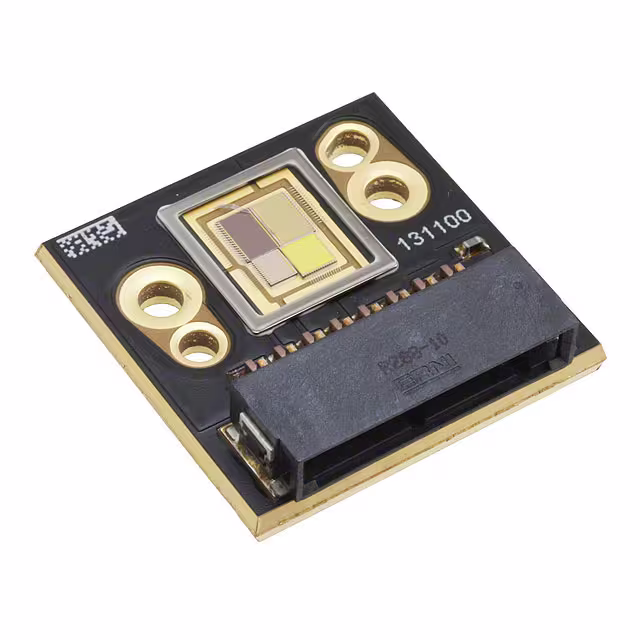

CBM-380-RGBW-D11-QG101BIG CHIP LED HB MODULE RGB, WHT |
3776 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CBM-380 | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6500K | 624nm Red, 533nm Green, 464nm Blue | Square | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | - | - | 12A Red, 12A Green, 8.1A Blue, 9A White | - | - | With Connector | - | - | - |
|
CSM-360-W65S-D22-GX102BIG CHIP LED HB MODULE WHITE |
3788 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CSM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Rectangle | 3950lm (3600lm ~ 4300lm) | 3.15A | 40°C | 13.14V | 95 lm/W | 6.3A | 70 (Typ) | 115° | With Connector | 36.00mm L x 51.00mm W | 5.61mm | 16.00mm Dia |
|
CST-90-W30M-C12-GK700BIG CHIP LED HB MODULE WHITE |
3614 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CST-90 | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 550lm (500lm ~ 600lm) | 3.15A | 40°C | 3.25V | 54 lm/W | 13.5A | 83 (Typ) | 95° | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 3.00mm W |
|
CBT-120-G-C11-JM201BIG CHIP LED HB MODULE GREEN |
2704 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CBT-120 | Obsolete | LED Module | Green | - | 530nm (520nm ~ 540nm) | Square | - | 18A | - | 4.3V | - | 36A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 2.60mm L x 4.63mm W |
|
|
CST-90-W45S-C12-GM400BIG CHIP LED HB MODULE WHITE |
2678 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CST-90 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 775lm (700lm ~ 850lm) | 3.15A | 25°C | 3.25V | 76 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia |
|
CBT-40-B-C21-KF301BIG CHIP LED HB MODULE BLUE |
3279 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CBT-40 | Obsolete | LED Module | Blue | - | 463nm (455nm ~ 470nm) | Rectangle | 110lm (Typ) | 5.9A | 40°C | 4.2V | 4 lm/W | 12A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W |
|
|
CST-90-W45S-C12-GN401BIG CHIP LED HB MODULE WHITE |
2360 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CST-90 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 925lm (850lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia |
|
|
CST-90-W45S-C13-GM400BIG CHIP LED HB MODULE WHITE |
3965 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | CST-90 | Obsolete | LED Module | White, Neutral | 4500K | - | Square | 775lm (700lm ~ 850lm) | 3.15A | 25°C | 3.25V | 76 lm/W | 13.5A | 70 (Typ) | - | With Connector | 42.00mm L x 28.00mm W | 7.90mm | 8.00mm Dia |
|
SSR-50-W65S-R21-GK100BIG CHIP LED HB MODULE WHITE |
2742 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Tray | SSR-50 | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 19.90mm L x 19.90mm W | 6.10mm | 5.60mm Dia |
