| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH10060C-150MA=P3FIXED IND 15UH 3.1A 27 MOHM SMD |
3394 | 1.72 |
ДобавитьНемедленный |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MDH10060C | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | 3.4A | Unshielded | 27mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
|
MDH10060C-151MA=P3FIXED IND 150UH 1A 240 MOHM SMD |
2410 | 1.72 |
ДобавитьНемедленный |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MDH10060C | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1 A | 1A | Unshielded | 240mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
|
MDH10060C-470MA=P3FIXED IND 47UH 2A 74 MOHM SMD |
3914 | 1.72 |
ДобавитьНемедленный |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MDH10060C | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | 1.9A | Unshielded | 74mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
|
MDH10060C-471MA=P3FIXED IND 470UH 560MA 750MOHM SM |
2236 | 1.72 |
ДобавитьНемедленный |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MDH10060C | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 560 mA | 560mA | Unshielded | 750mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
|
MDH10060C-4R7NA=P3FIXED IND 4.7UH 4.9A 10MOHM SMD |
2483 | 1.72 |
ДобавитьНемедленный |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MDH10060C | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.9 A | 5.9A | Unshielded | 10mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
MPXV1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM |
3235 | 1.79 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MPXV | Active | - | Metal Composite | 33 µH | ±20% | 3.7 A | 5A | Shielded | 119.7mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
MPXV1D1040L220FIXED IND 22UH 4.7A 76.1MOHM SMD |
2671 | 1.79 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MPXV | Active | - | Metal Composite | 22 µH | ±20% | 4.7 A | 7A | Shielded | 76.1mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
SRP1265A-R36MFIXED IND 360NH 45A 0.9 MOHM SMD |
3908 | 1.77 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1265A | Active | Drum Core, Wirewound | Carbonyl Powder | 360 nH | ±20% | 45 A | 66A | Shielded | 0.9mOhm Max | 10 @ 100kHz | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
MPEV1D1040L3R3FIXED IND 3.3UH 11.4A 12.8 MOHM |
3527 | 1.80 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | METCOM MPEV | Active | - | Metal Composite | 3.3 µH | ±20% | 11.4 A | 15A | Shielded | 12.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - |
|
|
MPEV1D1040L150FIXED IND 15UH 5.7A 51.2MOHM SMD |
3909 | 1.80 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | METCOM MPEV | Active | - | Metal Composite | 15 µH | ±20% | 5.7 A | 8.5A | Shielded | 51.2mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - |
|
|
MPEV1D1040L1R5FIXED IND 1.5UH 17.7A 5.4MOHM SM |
2963 | 1.80 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | METCOM MPEV | Active | - | Metal Composite | 1.5 µH | ±20% | 17.7 A | 26A | Shielded | 5.4mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - |
|
SRR1280A-120MFIXED IND 12UH 5.6A 28 MOHM SMD |
3090 | 1.55 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280A | Active | - | Ferrite | 12 µH | ±20% | 5.6 A | 6A | Shielded | 28mOhm Max | 26 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 |
|
|
SRR1280A-121KFIXED IND 120UH 1.95A 200MOHM SM |
2560 | 1.55 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280A | Active | - | Ferrite | 120 µH | ±10% | 1.95 A | 1.95A | Shielded | 200mOhm Max | 16 @ 796kHz | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 |
|
|
SRR1280A-821KFIXED IND 820UH 700MA 1.5OHM SMD |
3531 | 1.55 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1280A | Active | - | Ferrite | 820 µH | ±10% | 700 mA | 940mA | Shielded | 1.5Ohm Max | 20 @ 1KHz | 1.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 |
1.2mm.jpg)
|
744383240056FIXED IND 560NH 3.3A 49 MOHM SMD |
3974 | 1.41 |
ДобавитьНемедленный |
Datenblatt |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | WE-MAPI | Active | Molded | Metal Composite | 560 nH | ±20% | 3.3 A | 6A | Shielded | 49mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2512 |
.jpg)
|
744383430047FIXED IND 470NH 2.3A 63 MOHM SMD |
3276 | 1.41 |
ДобавитьНемедленный |
Datenblatt |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | WE-MAPI | Active | Molded | Metal Composite | 470 nH | ±30% | 2.3 A | 5.25A | Shielded | 63mOhm Max | - | 175MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 |
|
|
744383430056FIXED IND 560NH 2.1A 73 MOHM SMD |
2457 | 1.41 |
ДобавитьНемедленный |
Datenblatt |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | WE-MAPI | Active | Molded | Metal Composite | 560 nH | ±30% | 2.1 A | 5A | Shielded | 73mOhm Max | - | 135MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 |
|

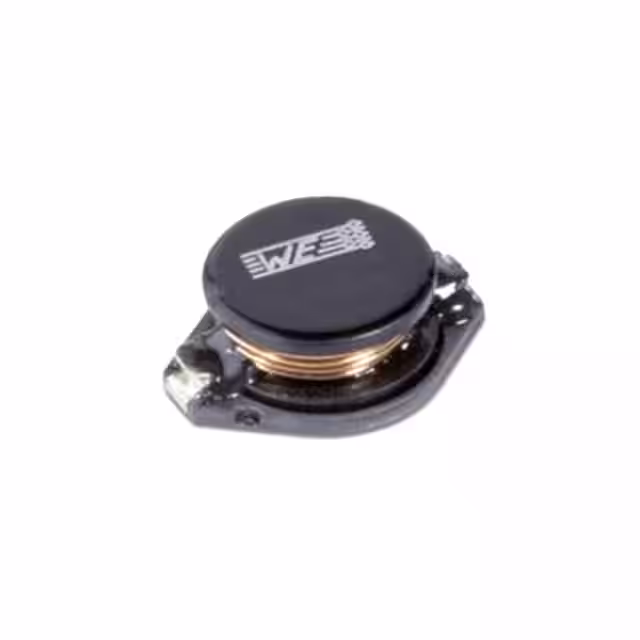

74458003FIXED IND 3.3UH 6.2A 18 MOHM SMD |
2460 | 1.94 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WE-PD4 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.2 A | 15.8A | Unshielded | 18mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
784775047FIXED IND 4.7UH 4.5A 19 MOHM SMD |
3922 | 2.25 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WE-PD2A | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.5 A | 4.5A | Unshielded | 19mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 |
|
|
784775233FIXED IND 330UH 430MA 1.26OHM SM |
3362 | 2.25 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WE-PD2A | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 430 mA | 480mA | Unshielded | 1.26Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 |
