| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-2012-330M-TFIXED IND 33UH 300MA 2.16OHM SMD |
2969 | 0.39 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | ASPI-2012 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 300 mA | 350mA | Shielded | 2.16Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
SRN4012T-1R0MFIXED IND 1UH 2.2A 42 MOHM SMD |
2829 | 0.41 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN4012T | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.2 A | 2.8A | Semi-Shielded | 42mOhm | 6 @ 100kHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
LQW04AN39NJ10DFIXED IND 39NH 200MA 1.08OHM SMD |
2965 | 0.42 |
ДобавитьНемедленный |
Datenblatt |
0302 (0804 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW04 | Active | Wirewound | Non-Magnetic | 39 nH | ±5% | 200 mA | - | Unshielded | 1.08Ohm Max | 16 @ 250MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) |
|
|
LQW04AN56NJ10DFIXED IND 56NH 180MA 1.32OHM SMD |
3735 | 0.42 |
ДобавитьНемедленный |
Datenblatt |
0302 (0804 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW04 | Active | Wirewound | Non-Magnetic | 56 nH | ±5% | 180 mA | - | Unshielded | 1.32Ohm Max | 13 @ 250MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) |
|
VLS3010ET-220MFIXED IND 22UH 380MA 900MOHM SMD |
2251 | 0.40 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 22 µH | ±20% | 380 mA | 380mA | Shielded | 900mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS3010ET-2R2MFIXED IND 2.2UH 1.2A 116MOHM SMD |
2318 | 0.40 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 2.2 µH | ±20% | 1.2 A | 1.2A | Shielded | 116mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
LQH32NH270J23LFIXED IND 27UH 195MA 1.2 OHM SMD |
2608 | 0.38 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LQH32 | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 195 mA | - | Unshielded | 1.2Ohm Max | 35 @ 1MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) |
-2,70mm.jpg)
|
CBC3225T1R0MRVFIXED IND 1UH 1.1A 71.5 MOHM SMD |
1062 | 0.14 |
ДобавитьНемедленный |
Datenblatt |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT),Bulk | CB, C Type | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.1 A | 2A | Unshielded | 71.5mOhm Max | - | 250MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) |
|
SRN2510F-R24MFIXED IND 240NH 5.5A 22 MOHM SMD |
2878 | 0.40 |
ДобавитьНемедленный |
Datenblatt |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2510F | Active | - | Metal | 240 nH | ±20% | 5.5 A | 9.5A | Semi-Shielded | 22mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|

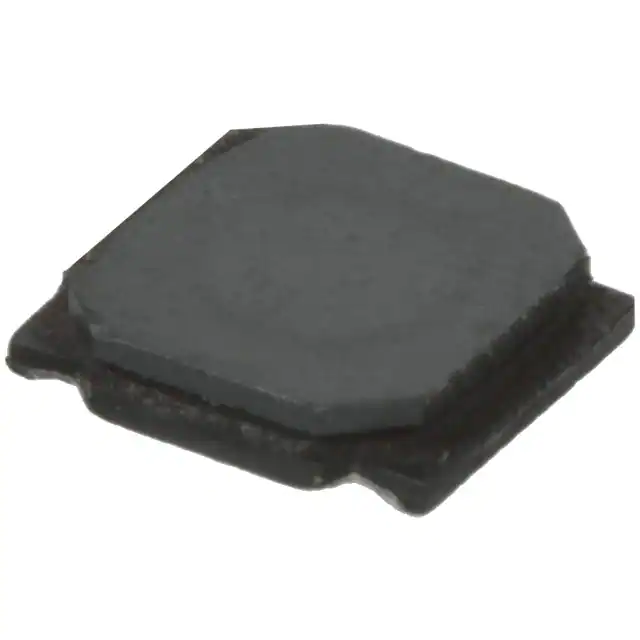

NR4010T4R7MFIXED IND 4.7UH 750MA 252MOHM SM |
3106 | 0.42 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 900mA | Shielded | 252mOhm Max | - | 47MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
LQW04AN33NH00DFIXED IND 33NH 140MA 1.11OHM SMD |
2573 | 0.45 |
ДобавитьНемедленный |
Datenblatt |
0302 (0804 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW04 | Active | Wirewound | - | 33 nH | ±3% | 140 mA | - | Unshielded | 1.11Ohm Max | 15 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) |
|
|
LQH32CH3R3M53LFIXED IND 3.3UH 710MA 156MOHM SM |
100 | 0.41 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LQH32 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 710 mA | - | Unshielded | 156mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
LBC3225T2R2MRVFIXED IND 2.2UH 930MA 80MOHM SMD |
1035 | 0.13 |
ДобавитьНемедленный |
Datenblatt |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT),Bulk | LB, C Type | Active | Wirewound | - | 2.2 µH | ±20% | 930 mA | - | Unshielded | 80mOhm | - | 190MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) |
|
NRS6014T220MMGGFIXED IND 22UH 1.09A 360MOHM SMD |
3549 | 0.42 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.09 A | 950mA | Shielded | 360mOhm Max | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

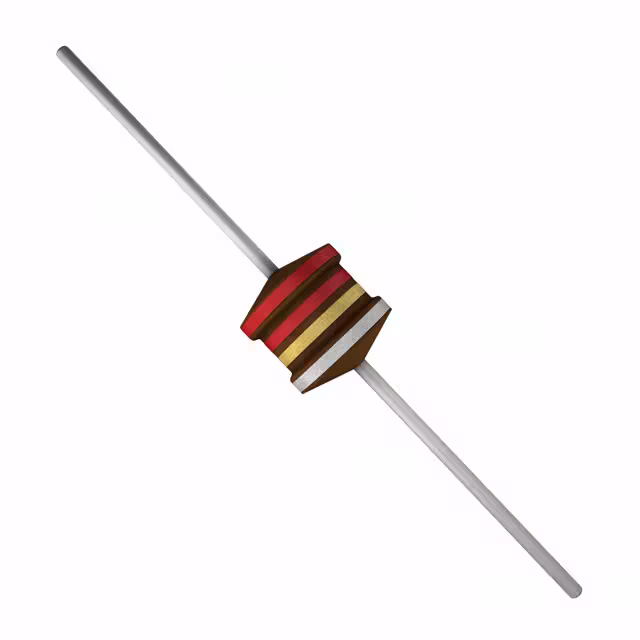

B78108E1222K000FIXED IND 2.2UH 3.4A 57 MOHM TH |
2024 | 0.47 |
ДобавитьНемедленный |
Datenblatt |
Axial | Tape & Reel (TR),Cut Tape (CT) | BC+ | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.4 A | 4A | Unshielded | 57mOhm Max | 50 @ 7.96MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - |
|
B82141A1474J000FIXED IND 470UH 90MA 12 OHM TH |
3473 | 0.43 |
ДобавитьНемедленный |
Datenblatt |
Axial | Tape & Reel (TR),Cut Tape (CT) | SBC | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 12Ohm Max | 60 @ 796kHz | 2.3MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - |
|
MDMK2020T1R5MMFIXED IND 1.5UH 1.65A 86MOHM SMD |
3293 | 0.45 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MCOIL™, MD | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 2A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
MDKK2020T150MMFIXED IND 15UH 480MA 1.18OHM SMD |
3478 | 0.59 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MCOIL™, MD | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 480 mA | 550mA | Shielded | 1.18Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
MDKK1616T6R8MMFIXED IND 6.8UH 520MA 820MOHM SM |
3383 | 0.63 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MCOIL™, MD | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 520 mA | 880mA | Shielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
MDKK1616T1R5MMFIXED IND 1.5UH 1.33A 185MOHM SM |
3102 | 0.44 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MCOIL™, MD | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.33 A | 1.75A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
