| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

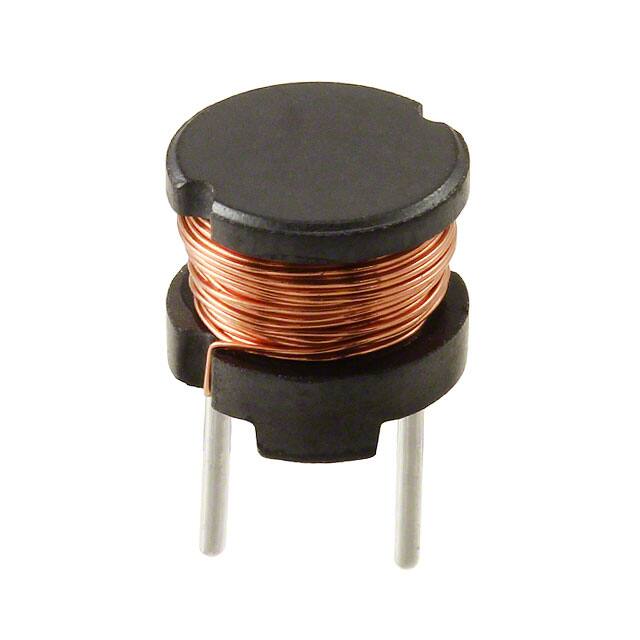

RCH875NP-102KFIXED IND 1MH 180MA 2.94 OHM TH |
2910 | 0.80 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder (Open) | Bulk | RCH-875 | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 180 mA | 270mA | Unshielded | 2.94Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - |
|

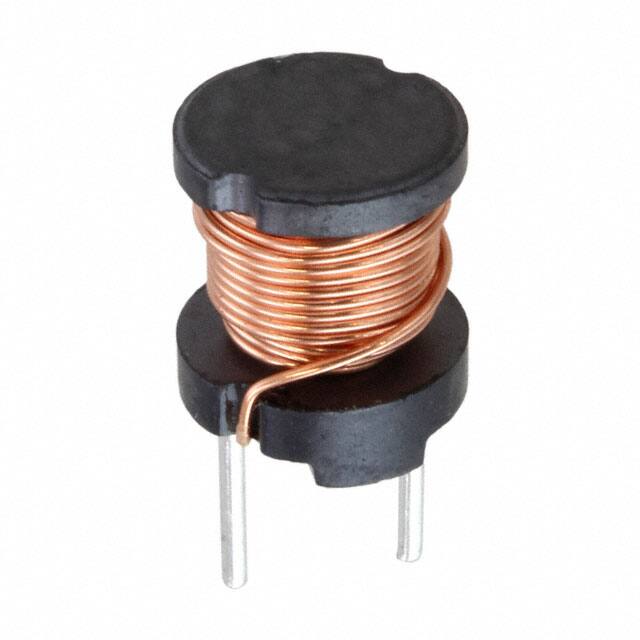

RCH895NP-151KFIXED IND 150UH 610MA 270MOHM TH |
3459 | 0.80 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder (Open) | Bulk | RCH-895 | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 610 mA | 740mA | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - |
|
CDRH60D45BT150NP-101MCFIXED IND 100UH 860MA 340MOHM SM |
2856 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CDRH60D45B/T150 | Active | - | Ferrite | 100 µH | ±20% | 860 mA | 900mA | Shielded | 340mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
|
CDRH60D45BT150NP-2R2NCFIXED IND 2.2UH 4.1A 19.5MOHM SM |
3906 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CDRH60D45B/T150 | Active | - | Ferrite | 2.2 µH | ±30% | 4.1 A | 5.7A | Shielded | 19.5mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRP1245C-8R2MFIXED IND 8.2UH 11.5A 21.5 MOHM |
2960 | 1.56 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1245C | Active | - | Metal | 8.2 µH | ±20% | 11.5 A | 20A | Shielded | 21.5mOhm Max | 20 @ 100kHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1245C-R22MFIXED IND 220NH 48A 0.55MOHM SMD |
3083 | 1.56 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1245C | Active | - | Metal | 220 nH | ±20% | 48 A | 95A | Shielded | 0.55mOhm Max | 15 @ 100kHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1245C-1R0MFIXED IND 1UH 30A 2.4 MOHM SMD |
2535 | 1.56 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1245C | Active | - | Metal | 1 µH | ±20% | 30 A | 50A | Shielded | 2.4mOhm Max | 20 @ 100kHz | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1245C-100MFIXED IND 10UH 11A 25.5 MOHM SMD |
3426 | 1.56 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1245C | Active | - | Metal | 10 µH | ±20% | 11 A | 17A | Shielded | 25.5mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
MPL-AL4020-2R2FIXED IND 2.2UH 5.5A 21.5MOHM SM |
2955 | 1.74 |
ДобавитьНемедленный |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | MPL-AL | Active | Molded | - | 2.2 µH | - | 5.5 A | 6.2A | Unshielded | 21.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | |
|
RLB0913-221KFIXED IND 220UH 700MA 650MOHM TH |
3862 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 700 mA | 640mA | Unshielded | 650mOhm | 20 @ 796kHz | 2.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-270KFIXED IND 27UH 2.5A 80 MOHM TH |
3878 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 2.5 A | 1.7A | Unshielded | 80mOhm | 30 @ 2.52MHz | 8.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-820KFIXED IND 82UH 1.35A 230 MOHM TH |
2999 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.35 A | 1.1A | Unshielded | 230mOhm | 30 @ 2.52MHz | 4.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-223KFIXED IND 22MH 80MA 56 OHM TH |
2142 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 80 mA | 30mA | Unshielded | 56Ohm | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-391KFIXED IND 390UH 500MA 1 OHM TH |
3577 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 500 mA | 480mA | Unshielded | 1Ohm | 20 @ 796kHz | 2.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-4R7KFIXED IND 4.7UH 4A 30 MOHM TH |
3526 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 4 A | 4.3A | Unshielded | 30mOhm | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - |
|
|
RLB0913-390KFIXED IND 39UH 2.4A 100 MOHM TH |
3350 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 2.4 A | 1.5A | Unshielded | 100mOhm | 30 @ 2.52MHz | 6.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-101KFIXED IND 100UH 1.2A 280 MOHM TH |
2173 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.2 A | 910mA | Unshielded | 280mOhm | 20 @ 796kHz | 3.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-153KFIXED IND 15MH 100MA 37 OHM TH |
1200 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 100 mA | 40mA | Unshielded | 37Ohm | 40 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
RLB0913-333KFIXED IND 33MH 70MA 59.8 OHM TH |
2814 | 0.81 |
ДобавитьНемедленный |
Datenblatt |
Radial, Vertical Cylinder | Tray | RLB0913 | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 70 mA | 30mA | Unshielded | 59.8Ohm | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
CMLS104T-R22MSFIXED IND 220NH 40A 0.95MOHM SMD |
3553 | 1.65 |
ДобавитьНемедленный |
Datenblatt |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CMLS104T | Active | - | Metal | 220 nH | ±20% | 40 A | 75A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
