| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4N055009FD4KSSDCAP FILM 50UF 10% 900VDC RAD |
3688 | 19.32 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | - | Active | 50 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.244 L x 1.378 W (57.00mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
B32656S7105K562CAP FILM 1UF 10% 1.25KVDC SCREW |
2924 | 12.93 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.476 (37.50mm) | Snubber | AEC-Q200 |
|
C4AQIBW5600M3NJCAP FILM 60UF 5% 800VDC RADIAL |
3554 | 12.95 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-M | Active | 60 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQQEW5270M3CJCAP FILM 27UF 5% 1.1KVDC RADIAL |
2997 | 13.07 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-M | Active | 27 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.496 W (42.00mm x 38.00mm) | 2.256 (57.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
B32656S7105K563CAP FILM 1UF 10% 1.25KVDC SCREW |
2324 | 13.23 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 2.244 (57.00mm) | Snubber | AEC-Q200 |
|
DCP4P052007JD4MSSDCAP FILM 20UF 20% 1100VDC RAD |
2788 | 13.35 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | - | Active | 20 µF | ±20% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 1.378 W (41.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
DCP4P052007JD2MSSDCAP FILM 20UF 20% 1.1KVDC RADIAL |
2628 | 13.35 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | - | Active | 20 µF | ±20% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 1.378 W (41.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AUIBW5550M3NJFILM, RADIAL, METALLIZED POLYPRO |
3536 | 13.50 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AU | Active | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.016 (51.20mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
BLC200J701B4BCAP FILM 20UF 5% 700VDC RADIAL |
2344 | 13.51 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | BLC | Active | 20 µF | ±5% | 230V | 700V | Polypropylene (PP), Metallized | 3.9 mOhms | -45°C ~ 85°C | Through Hole | 1.634 L x 1.102 W (41.50mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
C4AQQBW5300M3NJCAP FILM 30UF 5% 1.1KVDC RADIAL |
2167 | 13.52 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-M | Active | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQHBW5550P3MJCAP FILM 55UF 5% 600VDC RADIAL |
2054 | 13.57 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 55 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 125°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

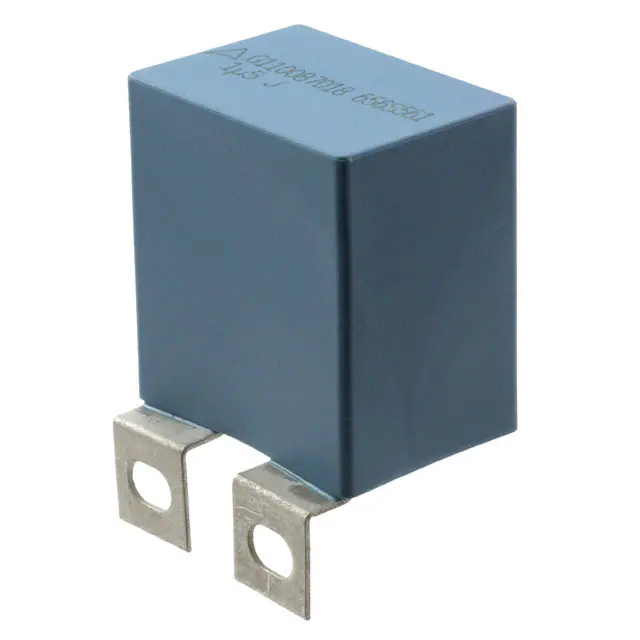

B32656S0155J561CAP FILM 1.5UF 5% 1KVDC SCREW |
2952 | 13.58 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1.5 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.004 (25.50mm) | Snubber | AEC-Q200 |
|
|
C4AQLBW5700M3LKCAP FILM 70UF 10% 500VDC RADIAL |
3077 | 13.65 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-M | Active | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.780 (45.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
B32678G1206K000CAP FILM 20UF 10% 750VDC RADIAL |
2260 | 13.82 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | B3267* - MKP DC-Link High Power | Active | 20 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQJBW5550M3MJCAP FILM 55UF 5% 700VDC RADIAL |
3279 | 13.94 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-M | Active | 55 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
EEC2G805HQA415CAP FILM 8UF 400VAC QC TERM |
3661 | 14.04 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | EEC | Active | 8 µF | -5%, +10% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 2.283 L x 1.024 W (58.00mm x 26.00mm) | 1.614 (41.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
|
C4AQJBW5550P3NJCAP FILM 55UF 5% 700VDC RADIAL |
3488 | 14.07 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ-P | Active | 55 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AF1EW5470T3AKFILM, POWER, METALLIZED POLYPROP |
2249 | 14.15 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AF | Active | 47 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
953BXW12KSF-FCAP FILM 12UF 10% 275VAC RADIAL |
2445 | 14.24 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | 953B | Active | 12 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.008 (51.00mm) | PC Pins | 2.067 (52.50mm) | EMI, RFI Suppression | - |
|
|
C4AF9EW5330T3AKFILM, POWER, METALLIZED POLYPROP |
3444 | 14.43 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AF | Active | 33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
