| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C20P33K-FCAP FILM 0.33UF 10% 2KVDC AXIAL |
3775 | 10.57 |
ДобавитьНемедленный |
Datenblatt |
Axial | Bulk,Bulk | 940C | Active | 0.33 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.063 Dia x 1.811 L (27.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

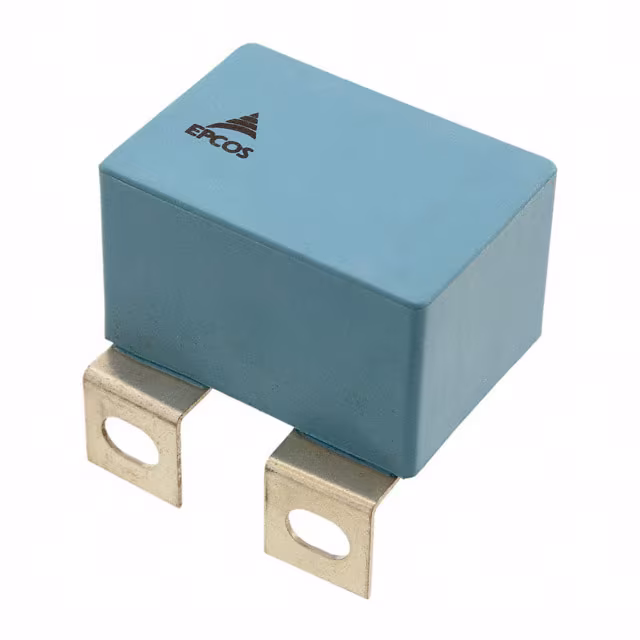

B32656S8155K561CAP FILM 1.5UF 10% 850VDC SCREW |
2896 | 10.58 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1.5 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.717 L x 1.220 W (43.60mm x 31.00mm) | 1.043 (26.50mm) | Screw Terminals | 1.004 (25.50mm) | Snubber | AEC-Q200 |
|
C4AQQBW5400A3NJCAP FILM 40UF 5% 1.1KVDC RADIAL |
3154 | 10.61 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ | Active | 40 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

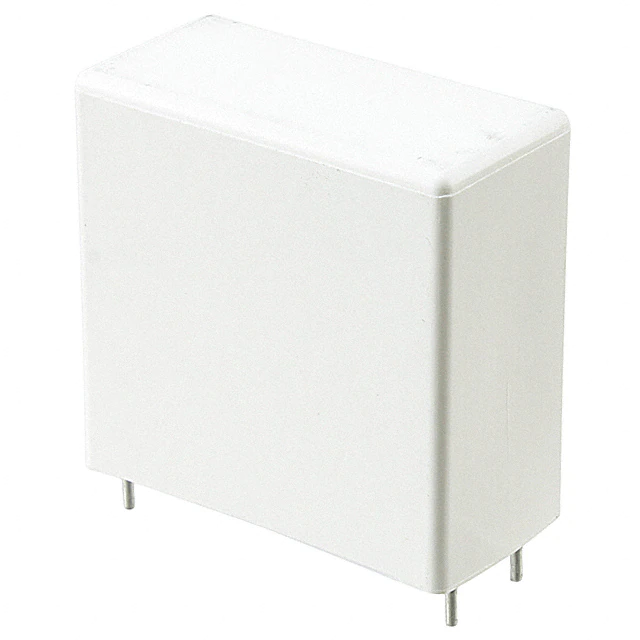

C4AEOBW5120A3FJCAP FILM 12UF 5% 900VDC RADIAL |
3082 | 10.62 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | C4AE | Active | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
B32916A3475M000CAP FILM 4.7UF 20% 760VDC RADIAL |
3947 | 10.81 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | B3291*A/B3 - X1 Standard | Active | 4.7 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.555 (39.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
|
940C10P68K-FCAP FILM 0.68UF 10% 1KVDC AXIAL |
2489 | 10.82 |
ДобавитьНемедленный |
Datenblatt |
Axial | Bulk | 940C | Active | 0.68 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.102 Dia x 1.339 L (28.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

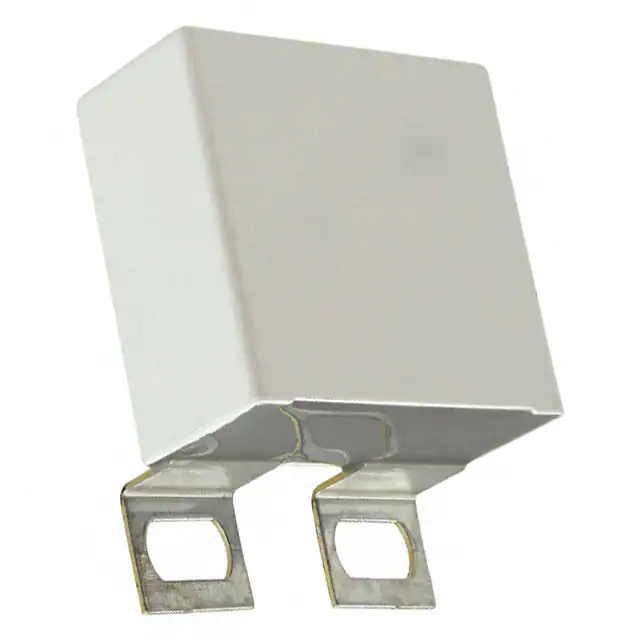

C4BSWBX3100ZAFJCAP FILM 0.1UF 5% 2KVDC SCREW |
2606 | 10.83 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | C4BS | Active | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
|
C4AQUBW5250A3NJCAP FILM 25UF 5% 1.3KVDC RADIAL |
3561 | 10.86 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ | Active | 25 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.980 (50.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQIBW5450A3MJCAP FILM 45UF 5% 800VDC RADIAL |
3988 | 11.31 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AQ | Active | 45 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
EZP-E50306MTACAP FILM 30UF 10% 500VDC RADIAL |
3258 | 11.46 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | EZPE | Active | 30 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 2.028 (51.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|

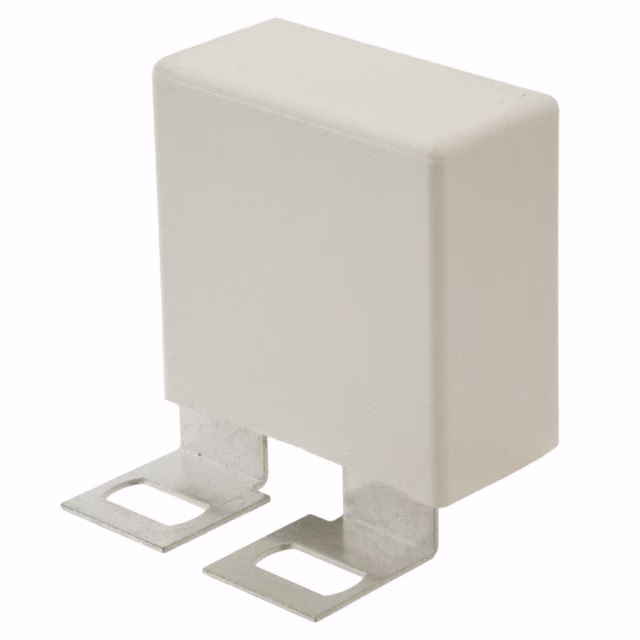

C4BSPBX3470ZBFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
3881 | 11.57 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AF3BW5100A3MKCAP FILM 10UF 10% 400VAC RADIAL |
2324 | 12.01 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AF | Active | 10 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
BFC238320105CAP FILM 1UF 5% 630VDC RADIAL |
3846 | 12.13 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | MMKP383 | Active | 1 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|

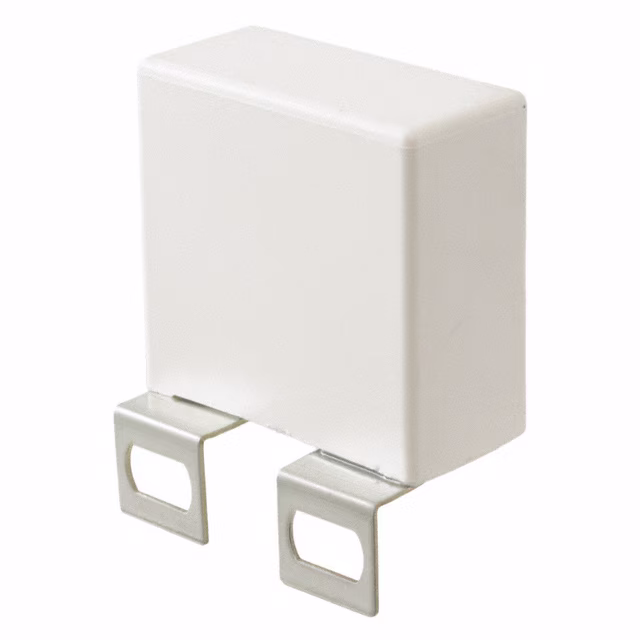

C4BSPBX3680ZAFJCAP FILM 0.68UF 5% 1.2KVDC SCREW |
2258 | 12.13 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | C4BS | Active | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
|
BFC238350154CAP FILM 0.15UF 5% 1.6KVDC RAD |
3648 | 12.84 |
ДобавитьНемедленный |
Datenblatt |
Radial | Bulk | MMKP383 | Active | 0.15 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|

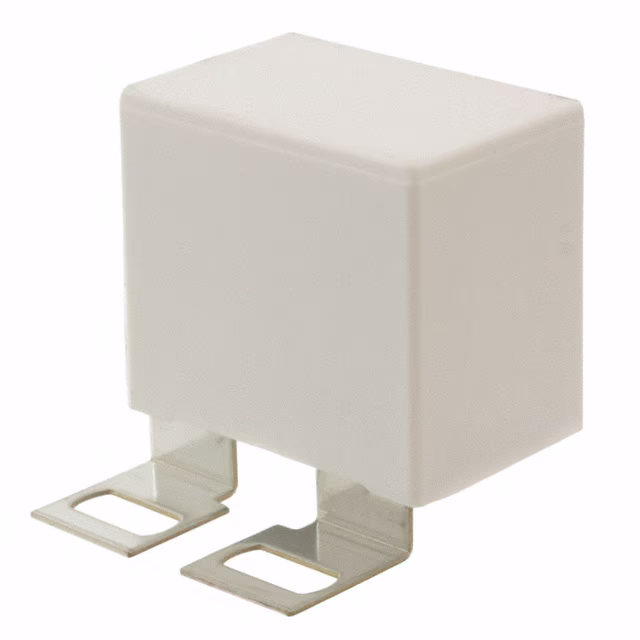

C4BSPBX4100ZBJJCAP FILM 1UF 5% 1.2KVDC SCREW |
3752 | 12.88 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|

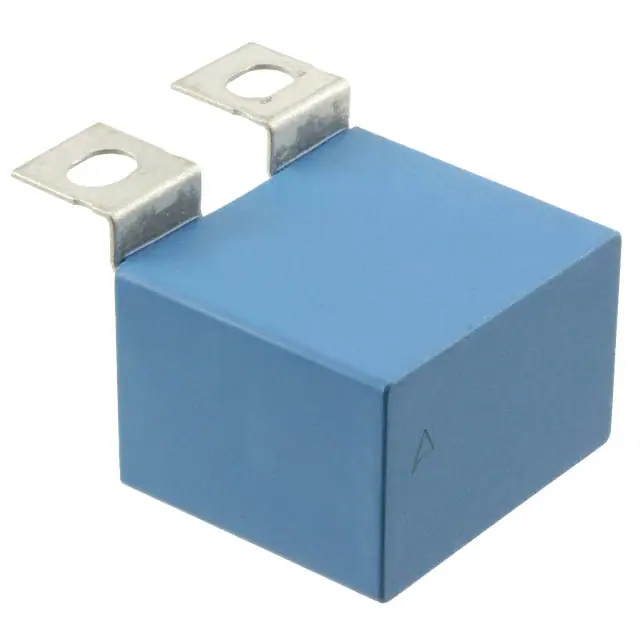

B32656S7105K561CAP FILM 1UF 10% 1.25KVDC SCREW |
3985 | 12.93 |
ДобавитьНемедленный |
Datenblatt |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.102 (28.00mm) | Snubber | AEC-Q200 |
|
C4ATDBW5300A30JCAP FILM 30UF 5% 250VDC RADIAL |
3399 | 13.25 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AT | Active | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.181 W (42.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4ATFBW5200A3LJCAP FILM 20UF 5% 400VDC RADIAL |
2671 | 13.36 |
ДобавитьНемедленный |
Datenblatt |
Radial - 4 Leads | Bulk | C4AT | Active | 20 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R75IW533050H4JCAP FILM 33UF 5% 250VDC RADIAL |
3398 | 13.40 |
ДобавитьНемедленный |
Datenblatt |
Radial | Tray | R75H | Active | 33 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
