| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Package / Case | Capacitance @ Vr, F | Supplier Device Package | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N2059DO9 275 AMP SILICON RECTIFIER |
3165 | 21.00 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 75 µA @ 300 V | 300 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |||
|
1N1201ADO4 12 AMP SILICON RECTIFIER |
2872 | 1.95 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 150 V | 150 V | 12A | -65°C ~ 200°C | 1.2 V @ 30 A | |||
|
VS-SD800C36LDIODE GP 3.6KV 1180A DO200AB |
2867 | 214.01 |
ДобавитьНемедленный |
Datenblatt |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 50 mA @ 3600 V | 3600 V | 1180A | - | 1.66 V @ 2000 A | |||
|
S3GSMB-CTCUT-TAPE VERSION. STANDARD RECO |
3716 | 0.71 |
ДобавитьНемедленный |
Datenblatt |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 3A | -50°C ~ 150°C | 1.1 V @ 3 A | |||
|
1N1183RADO5 35 AMP SILICON RECTFIER |
3981 | 2.50 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | - | - | 12A | -65°C ~ 200°C | 1.2 V @ 30 A | |||
|

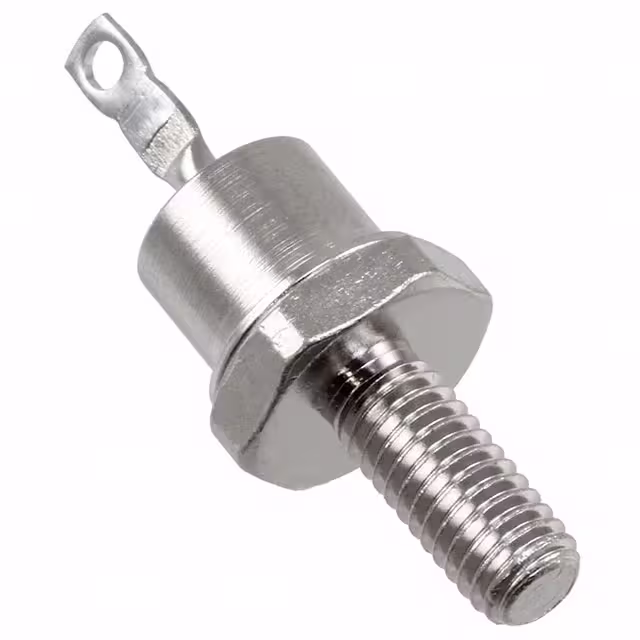

JANTX1N3890DIODE GEN PURP 100V 12A DO203AA |
2757 | 285.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | Military, MIL-PRF-19500/304 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 115pF @ 10V, 1MHz | 200 ns | 10 µA @ 100 V | 100 V | 12A | -65°C ~ 175°C | 1.5 V @ 20 A | ||
|
|
1N1663DO9 275 AMP SILICON RECTIFIER |
3843 | 21.00 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 75 µA @ 200 V | 200 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |||
|
|
1N1341RADO4 6 AMP SILICON RECTIFIER |
2943 | 1.95 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 16A | -65°C ~ 200°C | 1.3 V @ 30 A | |||
|
MSASC25H15KV/TRDIODE POWER SCHOTTKY |
3186 | 214.05 |
ДобавитьНемедленный |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||||
|
AL1B-CTCUT-TAPE VERSION. STANDARD RECO |
3100 | 0.71 |
ДобавитьНемедленный |
Datenblatt |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 1.5 µs | 3 µA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.2 V @ 1 A | |||
|
|
1N1184DO5 35 AMP SILICON RECTFIER |
3943 | 2.50 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | - | 12A | -65°C ~ 200°C | 1.2 V @ 30 A | |||
|

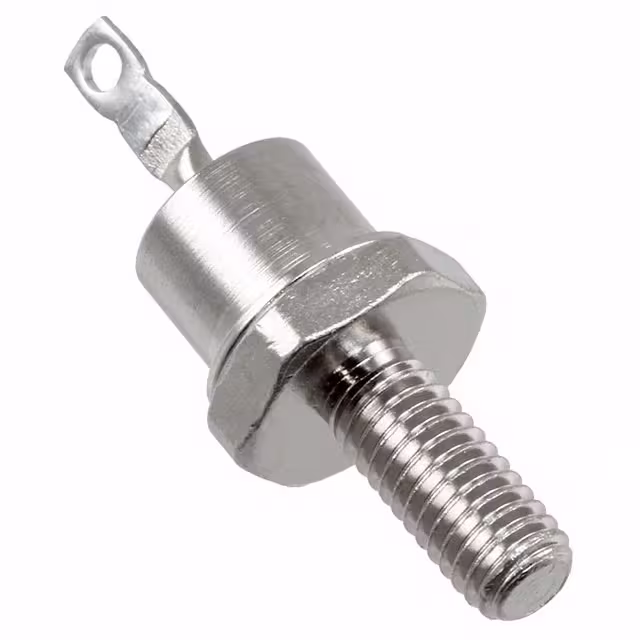

JANTX1N3891DIODE GEN PURP 200V 12A DO203AA |
2413 | 285.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | Military, MIL-PRF-19500/304 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 200 ns | 10 µA @ 200 V | 200 V | 12A | -65°C ~ 175°C | 1.5 V @ 38 A | ||
|
|
1N3260DO9 275 AMP SILICON RECTIFIER |
2239 | 21.00 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 75 µA @ 50 V | 50 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |||
|
|
1N1587DO4 16 AMP SILICON RECTIFIER |
3953 | 1.95 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 16A | -65°C ~ 200°C | 1.3 V @ 30 A | |||
|
|
MSASC25H30KV/TRDIODE POWER SCHOTTKY |
3049 | 214.05 |
ДобавитьНемедленный |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||||
|
SK1020D1SchottkyD, 20V, 10A |
3385 | 0.72 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 20 V | 20 V | 10A | -50°C ~ 150°C | 550 mV @ 10 A | |||
|
|
1N2021DO5 40 AMP SILICON RECTFIER |
3777 | 2.50 |
ДобавитьНемедленный |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 150 V | 150 V | 40A | -65°C ~ 200°C | 1.19 V @ 90 A | ||||
|
|
JANTX1N3893DIODE GEN PURP 400V 12A DO203AA |
2732 | 285.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | Military, MIL-PRF-19500/304 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 10 µA @ 400 V | 400 V | 12A | -65°C ~ 175°C | 1.5 V @ 38 A | ||
|
|
1N1662RDO9 275 AMP SILICON RECTIFIER |
2327 | 21.00 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 75 µA @ 150 V | 150 V | 275A | -65°C ~ 190°C | 1.3 V @ 300 A | |||
|
|
1N1341RDO4 6 AMP SILICON RECTIFIER |
3438 | 1.95 |
ДобавитьНемедленный |
Datenblatt |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 50 V | 50 V | 16A | -65°C ~ 200°C | 1.3 V @ 30 A |
