| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS0J332CAP ALUM 3300UF 20% 6.3V RADIAL |
2071 | 1.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FS-A | Active | 3300 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS1A222CAP ALUM 2200UF 20% 10V RADIAL |
2587 | 1.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FS-A | Active | 2200 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS1E122CAP ALUM 1200UF 20% 25V RADIAL |
2401 | 1.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FS-A | Active | 1200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

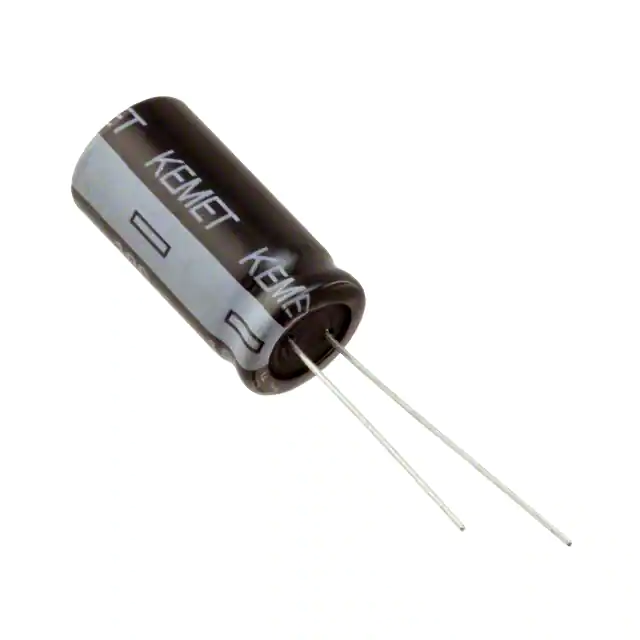

ESH107M160AL4AACAP ALUM 100UF 20% 160V RADIAL |
2246 | 1.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | ESH | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UKL1E101KPDANATDCAP ALUM 100UF 10% 25V RADIAL |
414 | 0.69 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UKL | Not For New Designs | 100 µF | ±10% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 420 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-HAH470XAPCAP ALUM 47UF 20% 50V SMD |
2025 | 0.65 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | 107.1 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UUX1E101MNL1GSCAP ALUM 100UF 20% 25V SMD |
3387 | 0.59 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UUX | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 181 mA @ 120 Hz | 235.3 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCM1V101MCL1GSCAP ALUM 100UF 20% 35V SMD |
2859 | 0.70 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UCM | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 260 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EMVH500ARA221MKE0SCAP ALUM 220UF 20% 50V SMD |
1597 | 2.09 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVH | Active | 220 µF | ±20% | 50 V | 230mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EEU-FR1V101BCAP ALUM 100UF 20% 35V RADIAL TH |
2135 | 0.70 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 100 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UWG1H220MCL1GSCAP ALUM 22UF 20% 50V SMD |
2100 | 0.70 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 60 mA @ 120 Hz | 120 mA @ 100 kHz | 700 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-FK1C151SPCAP ALUM 150UF 20% 16V SMD |
2092 | 0.70 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 150 µF | ±20% | 16 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPS1V151MPD1TDCAP ALUM 150UF 20% 35V RADIAL |
2160 | 0.71 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 410 mA @ 100 kHz | 280 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EMVH250ARA331MKE0SCAP ALUM 330UF 20% 25V SMD |
2526 | 2.11 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVH | Active | 330 µF | ±20% | 25 V | 140mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 375 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EEU-EE2V150CAP ALUM 15UF 20% 350V RADIAL |
2265 | 1.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | EE-A | Active | 15 µF | ±20% | 350 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 480 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHE1V102MHDCAP ALUM 1000UF 20% 35V RADIAL |
4169 | 1.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UHE | Not For New Designs | 1000 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.673 A @ 120 Hz | 2.23 A @ 100 kHz | 27 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
63YXJ330M12.5X20CAP ALUM 330UF 20% 63V RADIAL |
2000 | 1.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | YXJ | Active | 330 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 659.4 mA @ 120 Hz | 1.57 A @ 100 kHz | 60 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
50TRV33M6.3X8CAP ALUM 33UF 20% 50V SMD |
2242 | 0.67 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 33 µF | ±20% | 50 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 103.5 mA @ 120 Hz | 230 mA @ 100 kHz | 700 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UCD1V101MCL6GSCAP ALUM 100UF 20% 35V SMD |
2150 | 0.67 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 320 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ESK477M050AH4KACAP ALUM 470UF 20% 50V RADIAL |
3171 | 0.71 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | ESK | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 732 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
Запрос котировок
