| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

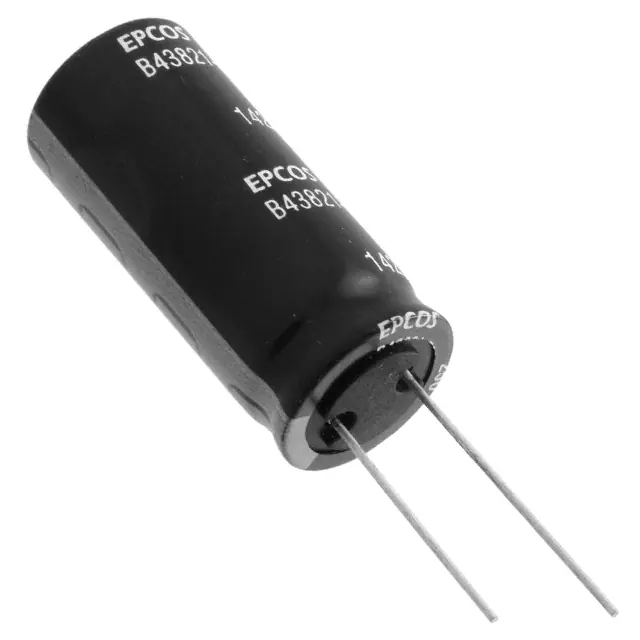

B43821F2227M000CAP ALUM 220UF 20% 250V RADIAL |
3121 | 3.17 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43821 | Active | 220 µF | ±20% | 250 V | 840mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
517D476M160DK6AE3CAP ALUM 47UF 20% 160V RADIAL |
216 | 2.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 517D | Last Time Buy | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|

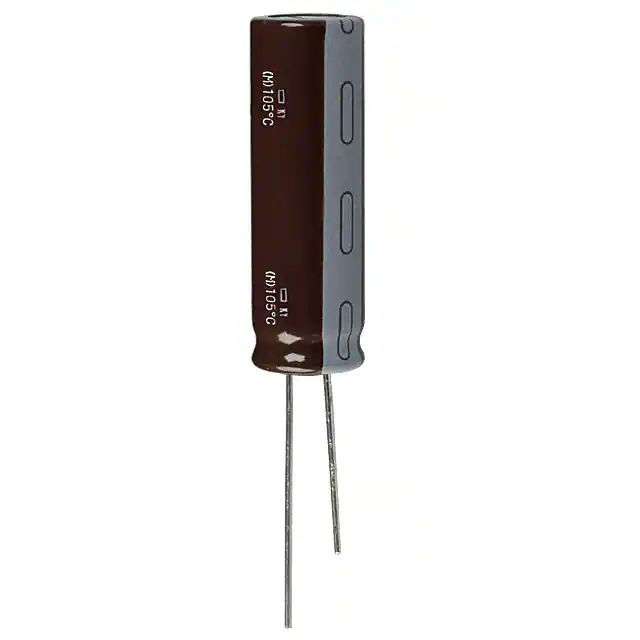

EKY-101ELL681ML40SCAP ALUM 680UF 20% 100V RADIAL |
3259 | 3.18 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KY | Active | 680 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 2.2 A @ 100 kHz | 27 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
UBW1A332MHD1TNCAP ALUM 3300UF 20% 10V RADIAL |
201 | 3.18 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UBW | Active | 3300 µF | ±20% | 10 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 1.541 A @ 120 Hz | 2.3 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UBW1C222MHD1TNCAP ALUM 2200UF 20% 16V RADIAL |
2069 | 3.18 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UBW | Active | 2200 µF | ±20% | 16 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 1.541 A @ 120 Hz | 2.3 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

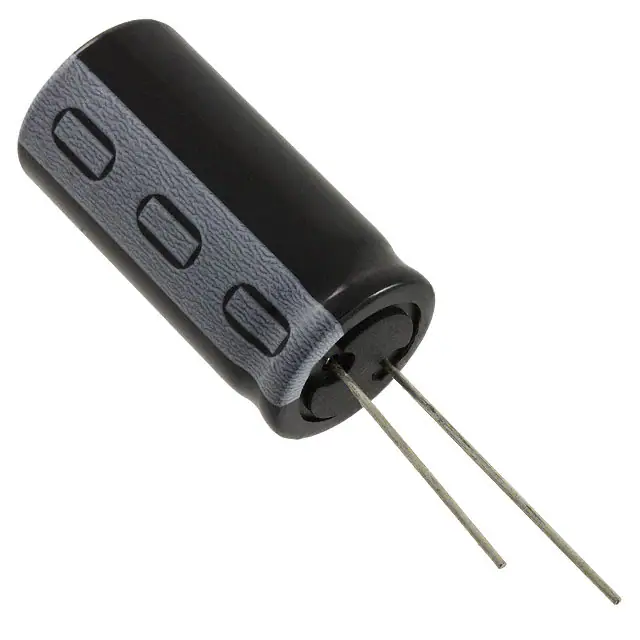

B41821A6228M000CAP ALUM 2200UF 20% 50V RADIAL |
474 | 3.19 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B41821 | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
860010680026CAP ALUM 1500UF 20% 50V RADIAL |
2977 | 2.36 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Active | 1500 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.848 A @ 120 Hz | 2.36544 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
860080680024CAP ALUM 1000UF 20% 50V RADIAL |
195 | 2.37 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLI | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3 A @ 100 kHz | 20 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEE-TKC102UAQCAP ALUM 1000UF 20% 16V SMD |
128 | 2.37 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 1000 µF | ±20% | 16 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
860240480011CAP ALUM 2200UF 20% 25V RADIAL |
3130 | 2.37 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-AT1H | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UCY2C271MHD1TNCAP ALUM 270UF 20% 160V RADIAL |
183 | 3.21 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 270 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.235 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
MAL215299605E3CAP ALUM 18UF 20% 400V SMD |
138 | 3.21 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | 152 CME | Active | 18 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100 mA @ 100 Hz | 250 mA @ 30 kHz | 2.1 Ohms | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.654 L x 0.654 W (16.60mm x 16.60mm) | Surface Mount |
|
860040378017CAP ALUM 3300UF 20% 16V RADIAL |
388 | 2.38 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 3300 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.345 A @ 120 Hz | 2.86 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
UCA2C151MHD6TNCAP ALUM 150UF 20% 160V RADIAL |
174 | 2.41 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 150 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.36 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UCY2W390MHD3TNCAP ALUM 39UF 20% 450V RADIAL |
122 | 3.29 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 39 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 880 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UCY2V820MHD9TNCAP ALUM 82UF 20% 350V RADIAL |
3242 | 3.29 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
860160578034CAP ALUM 1500UF 20% 35V RADIAL |
115 | 2.42 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 1500 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.777 A @ 120 Hz | 2.82 A @ 100 kHz | 48 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
860080578024CAP ALUM 1500UF 20% 35V RADIAL |
103 | 2.42 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLI | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.35 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
860241180004CAP ALUM 47UF 20% 250V RADIAL |
147 | 2.43 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | WCAP-AT1H | Active | 47 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 465 mA @ 120 Hz | 930 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | - | Through Hole |
|
UBX2A680MHL1TOCAP ALUM 68UF 20% 100V RADIAL |
410 | 3.33 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UBX | Active | 68 µF | ±20% | 100 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 380 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
