Производитель. Часть #	Акции	А	Таблицы данных	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UPB1H3R3MDD1TD CAP ALUM 3.3UF 20% 50V RADIAL Nichicon	2163	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	3.3 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	20 mA @ 120 Hz	33 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPB1H4R7MDD1TD CAP ALUM 4.7UF 20% 50V RADIAL Nichicon	3490	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	4.7 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	25 mA @ 120 Hz	40 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPB1HR47MDD1TD CAP ALUM 0.47UF 20% 50V RADIAL Nichicon	2964	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	0.47 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	5 mA @ 120 Hz	8.25 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPB1V102MHD1TO CAP ALUM 1000UF 20% 35V RADIAL Nichicon	2348	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	1000 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	570 mA @ 120 Hz	655.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPB1V330MDD1TD CAP ALUM 33UF 20% 35V RADIAL Nichicon	2851	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	33 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	50 mA @ 120 Hz	82.5 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPB1V331MPD1TD CAP ALUM 330UF 20% 35V RADIAL Nichicon	3208	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	330 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	364 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UPB2C101MHD1TN CAP ALUM 100UF 20% 160V RADIAL Nichicon	3487	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	100 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	550 mA @ 120 Hz	1.1 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2C220MPD1TD CAP ALUM 22UF 20% 160V RADIAL Nichicon	3813	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	22 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	250 mA @ 120 Hz	500 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UPB2C330MPD1TD CAP ALUM 33UF 20% 160V RADIAL Nichicon	2604	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	33 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	250 mA @ 120 Hz	500 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UPB2C470MHD1TO CAP ALUM 47UF 20% 160V RADIAL Nichicon	3581	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	47 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
UPB2C680MHD1TO CAP ALUM 68UF 20% 160V RADIAL Nichicon	2093	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	68 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	375 mA @ 120 Hz	750 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPB2D101MHD1TN CAP ALUM 100UF 20% 200V RADIAL Nichicon	3723	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	100 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	550 mA @ 120 Hz	1.1 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole

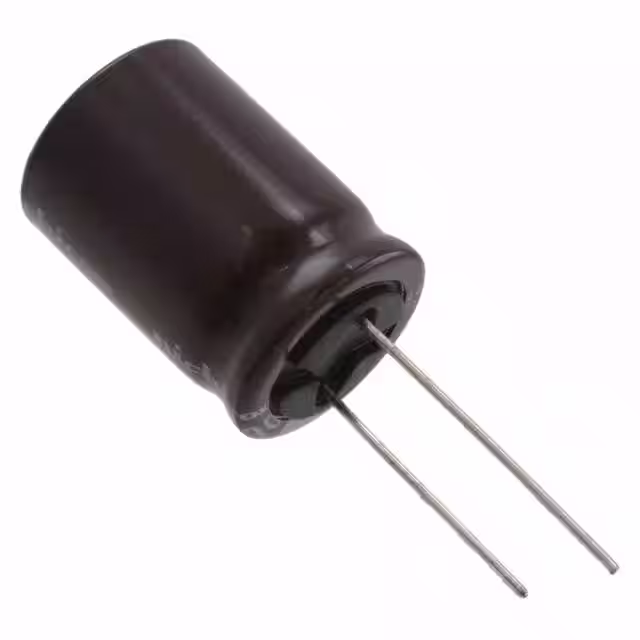

UPB2D151MHD1TN CAP ALUM 150UF 20% 200V RADIAL Nichicon	2336	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	150 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	650 mA @ 120 Hz	1.3 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2D220MPD1TD CAP ALUM 22UF 20% 200V RADIAL Nichicon	2508	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	22 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	250 mA @ 120 Hz	500 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UPB2D470MHD1TO CAP ALUM 47UF 20% 200V RADIAL Nichicon	3535	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	47 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

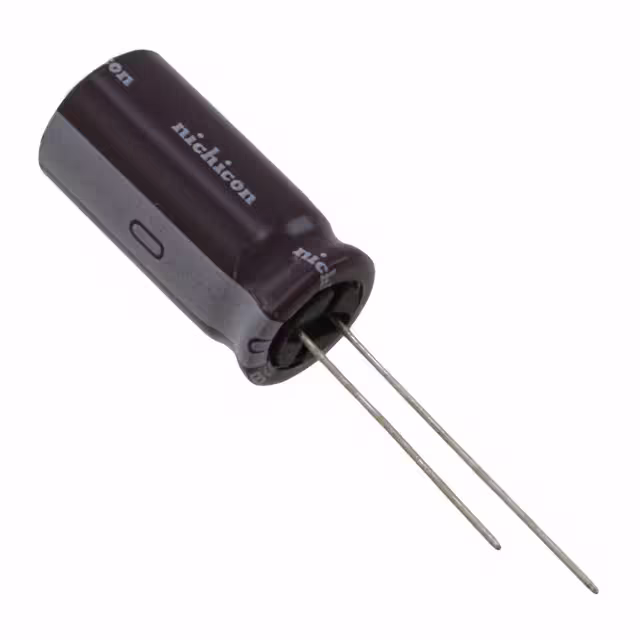

UPB2D680MHD1TO CAP ALUM 68UF 20% 200V RADIAL Nichicon	2148	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	68 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	375 mA @ 120 Hz	750 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPB2E101MHD1TN CAP ALUM 100UF 20% 250V RADIAL Nichicon	2137	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	100 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	600 mA @ 120 Hz	1.2 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2E220MHD1TO CAP ALUM 22UF 20% 250V RADIAL Nichicon	2240	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	22 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
UPB2E330MHD1TO CAP ALUM 33UF 20% 250V RADIAL Nichicon	2791	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	33 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
UPB2E470MHD1TO CAP ALUM 47UF 20% 250V RADIAL Nichicon	3235	- + Добавить Немедленный	Datenblatt	Cut Tape (CT),Tape & Box (TB)	UPB	Obsolete	47 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	350 mA @ 120 Hz	700 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
