| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43584A5608M003CAP ALUM 6000UF 20% 450V SCREW |
3477 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Obsolete | 6000 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A5688M000CAP ALUM 6800UF 20% 450V SCREW |
3491 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 6800 µF | ±20% | 450 V | 16mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.1 A @ 100 Hz | - | 19 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A5688M3CAP ALUM 6800UF 20% 450V SCREW |
3022 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 6800 µF | ±20% | 450 V | 16mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.1 A @ 100 Hz | - | 19 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A5828M000CAP ALUM 8200UF 20% 450V SCREW |
2636 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 8200 µF | ±20% | 450 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A5828M3CAP ALUM 8200UF 20% 450V SCREW |
2117 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 8200 µF | ±20% | 450 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A0608M000CAP ALUM 6000UF 20% 400V SCREW |
2675 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Obsolete | 6000 µF | ±20% | 400 V | - | - | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A0608M003CAP ALUM 6000UF 20% 400V SCREW |
3027 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Obsolete | 6000 µF | ±20% | 400 V | - | - | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A9109M000CAP ALUM 10000UF 20% 400V SCREW |
3106 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Obsolete | 10000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584A9109M3CAP ALUM 10000UF 20% 400V SCREW |
2453 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 10000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584E2279M000CAP ALUM 27000UF 20% 200V SCREW |
2943 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Active | 27000 µF | ±20% | 200 V | 4mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 44.5 A @ 100 Hz | - | 5 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|
|
B43584E2279M003CAP ALUM 27000UF 20% 200V SCREW |
3359 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43584 | Obsolete | 27000 µF | ±20% | 200 V | 4mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 44.5 A @ 100 Hz | - | 5 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis, Stud Mount |
|

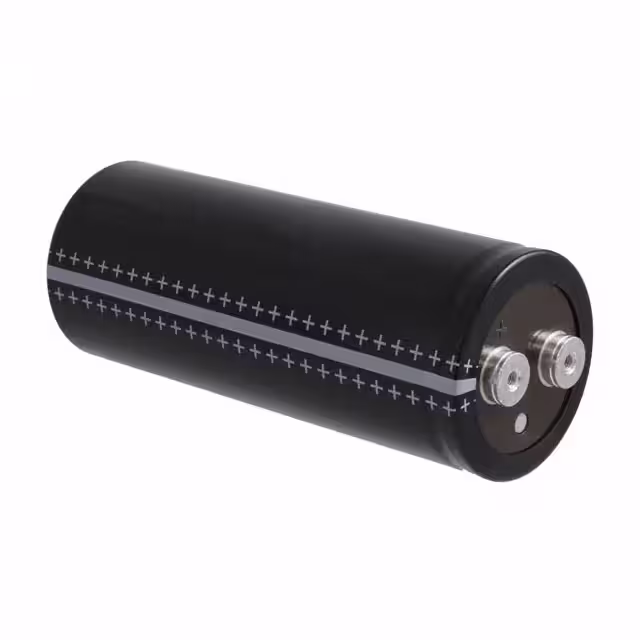

B43740A4109M000CAP ALUM 10000UF 20% 350V SCREW |
3967 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 10000 µF | ±20% | 350 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 21.2 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
|
|
B43740A4109M3CAP ALUM 10000UF 20% 350V SCREW |
3756 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 10000 µF | ±20% | 350 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 21.2 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
|
|
B43740A4109M7CAP ALUM 10000UF 20% 350V SCREW |
2881 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 10000 µF | ±20% | 350 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 21.2 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
|
|
B43740A4129M000CAP ALUM 12000UF 20% 350V SCREW |
3136 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 12000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 24.9 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
B43740A4129M3CAP ALUM 12000UF 20% 350V SCREW |
3035 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 12000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 24.9 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
B43740A4129M7CAP ALUM 12000UF 20% 350V SCREW |
3768 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 12000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 24.9 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
B43740A5568M000CAP ALUM 5600UF 20% 450V SCREW |
3736 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 5600 µF | ±20% | 450 V | 17mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 16.8 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
|
|
B43740A5568M3CAP ALUM 5600UF 20% 450V SCREW |
3375 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 5600 µF | ±20% | 450 V | 17mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 16.8 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
|
|
B43740A5568M7CAP ALUM 5600UF 20% 450V SCREW |
3666 | 0.00 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43740 | Active | 5600 µF | ±20% | 450 V | 17mOhm @ 100Hz | 6000 Hrs @ 105°C | - | Polar | - | General Purpose | 16.8 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 7.547 (191.70mm) | - | Chassis Mount |
