| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400MXR56M20X25CAP ALUM 56UF 20% 400V SNAP |
2114 | 1.78 |
ДобавитьНемедленный |
Bulk | MXR | Active | 56 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 460 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
EEU-FC2A391CAP ALUM 390UF 20% 100V RADIAL |
3378 | 1.78 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FC | Active | 390 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2 A @ 120 Hz | 1.6 A @ 100 kHz | 62 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

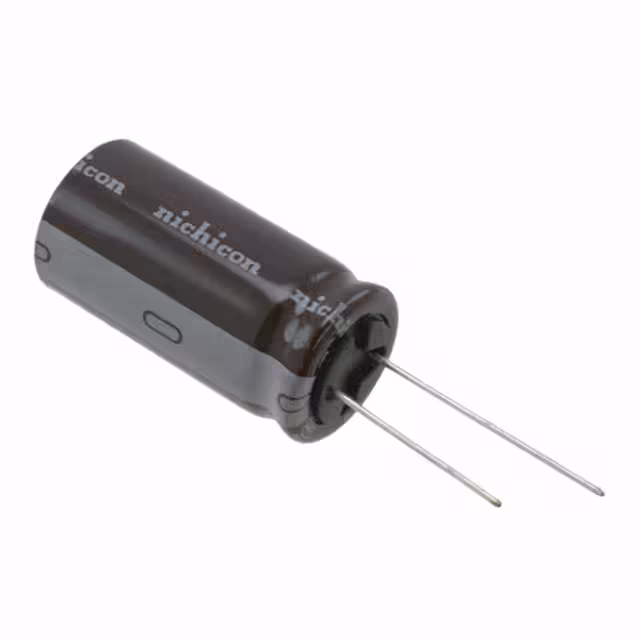

UPM1E392MHD6CAP ALUM 3900UF 20% 25V RADIAL |
2545 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPM | Not For New Designs | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 3.05 A @ 10 kHz | 21 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL225098685E3CAP ALUM 680UF 20% 63V RADIAL |
2593 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Box | 250 RMI-V | Active | 680 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 1.14 A @ 100 Hz | 1.5 A @ 100 kHz | 54 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL225054472E3CAP ALUM 4700UF 20% 10V RADIAL |
3331 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Box | 250 RMI-V | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 1.816 A @ 100 Hz | 2.39 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECE-A1EN222UECAP ALUM 2200UF 20% 25V RADIAL |
2876 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SU | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 900 mA @ 120 Hz | 1.53 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
EGXF630ELL122MM25SCAP ALUM 1200UF 20% 63V RAD TH |
2386 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | GXF | Active | 1200 µF | ±20% | 63 V | 44mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.464 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
EGXF101ELL361MU30SCAP ALUM 360UF 20% 100V RAD TH |
3304 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | GXF | Active | 360 µF | ±20% | 100 V | 50mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.31 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
EKXL421ELL121ML40SCAP ALUM 120UF 20% 420V RAD TH |
3360 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KXL | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
B43509A9826M000CAP ALUM 82UF 20% 400V SNAP |
2888 | 2.42 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43509 | Active | 82 µF | ±20% | 400 V | 960mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 100 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
16TGV3300M18X21.5CAP ALUM 3300UF 20% 16V SMD |
2362 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 3300 µF | ±20% | 16 V | 39mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
180MXC390MEFC22X25CAP ALUM 390UF 20% 180V SNAP |
3145 | 2.32 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MXC | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B41252A5189MCAP ALUM 18000UF 20% 25V SNAP |
2641 | 2.32 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B41252 | Active | 18000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.98 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 2.047 (52.00mm) | - | Through Hole |
|
EKXG251ELL221MMN3SCAP ALUM 220UF 20% 250V RADIAL |
3767 | 4.71 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KXG | Active | 220 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 2.5425 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
16USC8200MEFC20X25CAP ALUM 8200UF 20% 16V SNAP |
2913 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | USC | Active | 8200 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.56 A @ 120 Hz | 2.944 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
180VXR560MEFC30X25CAP ALUM 560UF 20% 180V SNAP |
3263 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | VXR | Active | 560 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
25MXC4700MEFC20X25CAP ALUM 4700UF 20% 25V SNAP |
3576 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MXC | Active | 4700 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 1.8975 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
35USC3300MEFC20X25CAP ALUM 3300UF 20% 35V SNAP |
2092 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | USC | Active | 3300 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 2.461 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
400VXR68MEFC22X30CAP ALUM 68UF 20% 400V SNAP |
3734 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | VXR | Active | 68 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 784 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
500BXC33MEFCRX16X31.5CAP ALUM 33UF 20% 500V RADIAL |
2391 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | BXC | Active | 33 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
