| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXZ500ELL182MM30SCAP ALUM 1800UF 20% 50V RADIAL |
3349 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LXZ | Active | 1800 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 120 Hz | 3 A @ 100 kHz | 25 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
LKG1C332MESZBKCAP ALUM 3300UF 20% 16V SNAP |
3400 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKG | Active | 3300 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.5 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
LKG1C392MESYBKCAP ALUM 3900UF 20% 16V SNAP |
2953 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKG | Active | 3900 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.55 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LKG1C472MESZAKCAP ALUM 4700UF 20% 16V SNAP |
2567 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKG | Active | 4700 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.35 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
LKG1H821MESZBKCAP ALUM 820UF 20% 50V SNAP |
3973 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKG | Active | 820 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

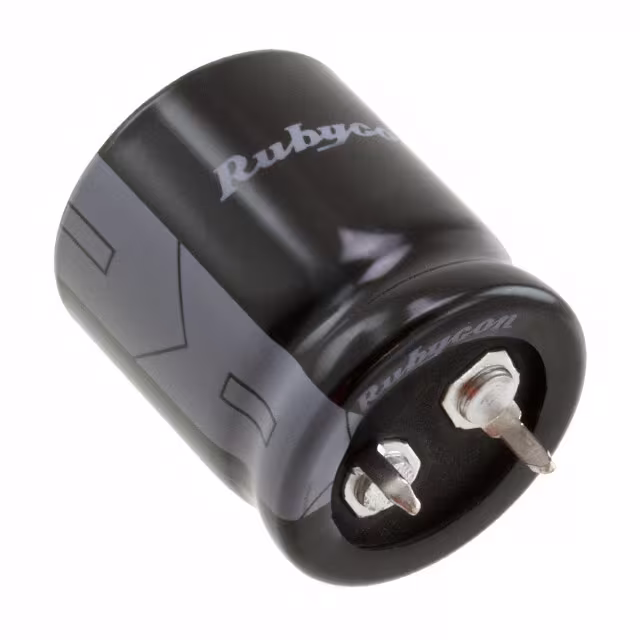

200MXC270MEFCSN22X25CAP ALUM 270UF 20% 200V SNAP |
2165 | 1.90 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MXC | Active | 270 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.65 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMG451ELL330MLN3SCAP ALUM 33UF 20% 450V RADIAL |
2906 | 1.98 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SMG | Active | 33 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 387 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UPJ1J821MHD6CAP ALUM 820UF 20% 63V RADIAL |
2037 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPJ | Not For New Designs | 820 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.11 A @ 10 kHz | 43 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
200BXF180MEFC18X20CAP ALUM 180UF 20% 200V RADIAL |
3466 | 1.99 |
ДобавитьНемедленный |
Datenblatt |
Bulk | BXF | Not For New Designs | 180 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.013 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
200BXF180MGC18X20CAP ALUM 180UF 20% 200V RADIAL |
3220 | 1.99 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | BXF | Not For New Designs | 180 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.013 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UUE1V681MNS1MSCAP ALUM 680UF 20% 35V SMD |
3701 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR) | UUE | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 804 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.689 (17.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
UBY1V302MHLCAP ALUM 3000UF 20% 35V RADIAL |
2844 | 1.99 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 3000 µF | ±20% | 35 V | 26mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.195 A @ 120 Hz | 4.26 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
400BXC68MEFCGC18X25CAP ALUM 68UF 20% 400V RADIAL |
3116 | 1.99 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | BXC | Active | 68 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 588 mA @ 120 Hz | 1.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
.JPG)
|
6.3TRV5600M18X16.5CAP ALUM 5600UF 20% 6.3V SMD |
3050 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 5600 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 64 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
ELXZ6R3ELL153MM35SCAP ALUM 15000UF 20% 6.3V RADIAL |
3902 | 1.99 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LXZ | Active | 15000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.128 A @ 120 Hz | 3.68 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.437 (36.50mm) | - | Through Hole |
|

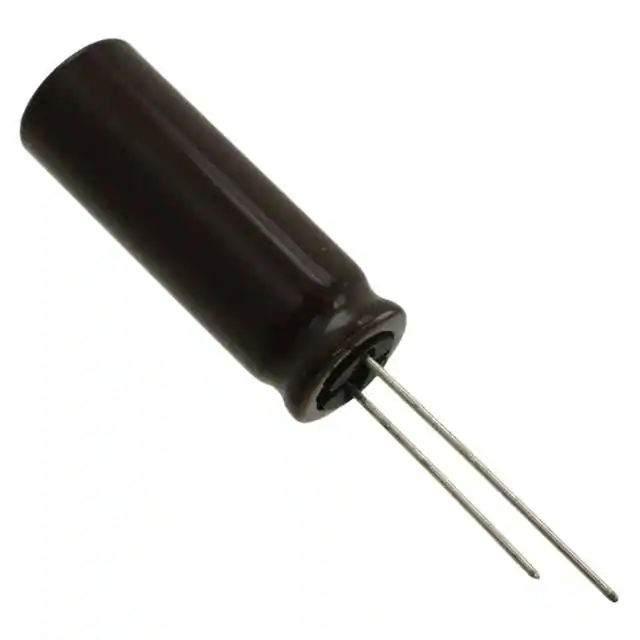

UPA1C392MHDCAP ALUM 3900UF 20% 16V RADIAL |
2358 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPA | Active | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
SLPX391M200A3P3CAP ALUM 390UF 20% 200V SNAP |
2086 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SLPX | Active | 390 µF | ±20% | 200 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 2.54 A @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
SLPX123M025A7P3CAP ALUM 12000UF 20% 25V SNAP |
3355 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SLPX | Active | 12000 µF | ±20% | 25 V | 50mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.77 A @ 120 Hz | 4.71 A @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
827LBA100M2BCCAP ALUM 820UF 20% 100V SNAP |
2518 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LBA | Active | 820 µF | ±20% | 100 V | 404.36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.325 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
380LX221M200H012CAP ALUM 220UF 20% 200V SNAP |
2525 | 1.46 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 380LX | Active | 220 µF | ±20% | 200 V | 900mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
