| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDH106M400S9RAACAP ALUM 10UF 20% 400V SMD |
3868 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR) | EDH | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | 62.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
EGXF350ELL152MU20SCAP ALUM 1500UF 20% 35V RAD TH |
2633 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Bulk | GXF | Active | 1500 µF | ±20% | 35 V | 30mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.068 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
EKXL401ELL680MK35SCAP ALUM 68UF 20% 400V RADIAL TH |
3560 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KXL | Active | 68 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 1.425 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
EGPA250ELL272MK35SCAP ALUM 2700UF 20% 25V RADIAL |
3901 | 1.44 |
ДобавитьНемедленный |
Datenblatt |
Bulk | GPA | Active | 2700 µF | ±20% | 25 V | 24mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.2275 A @ 120 Hz | 2.97 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
ELBG250ELL562ALN3SCAP ALUM 5600UF 25V RADIAL |
2824 | 1.44 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LBG | Active | 5600 µF | 0%, +30% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.72 A @ 120 Hz | 3.2 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
ELBG250ELL452AK40SCAP ALUM 4500UF 25V RADIAL |
2419 | 1.44 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LBG | Active | 4500 µF | 0%, +30% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.635 A @ 120 Hz | 3.1 A @ 100 kHz | 27 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
25WXA4700MEFC18X25CAP ALUM 4700UF 20% 25V RADIAL |
3620 | 1.44 |
ДобавитьНемедленный |
Datenblatt |
Bulk | WXA | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.49 A @ 120 Hz | 1.7135 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
25WXA4700MEFCGC18X25CAP ALUM 4700UF 20% 25V RADIAL |
2846 | 1.44 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | WXA | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.49 A @ 120 Hz | 1.7135 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
BIPOLAR CAPACITOR 33,0 UFCAP ALUM 33UF 10% 63V AXIAL |
3371 | 1.45 |
ДобавитьНемедленный |
Bulk | - | Active | 33 µF | ±10% | 63 V | - | - | - | Bi-Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 1.004 L (10.00mm x 25.50mm) | - | - | Through Hole | |
|
B41231B5129M000CAP ALUM 12000UF 20% 25V SNAP |
2315 | 1.38 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B41231 | Active | 12000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.37 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.457 (37.00mm) | - | Through Hole |
|
UHE1A822MHD6CAP ALUM 8200UF 20% 10V RADIAL |
3464 | 1.45 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UHE | Not For New Designs | 8200 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.336 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|

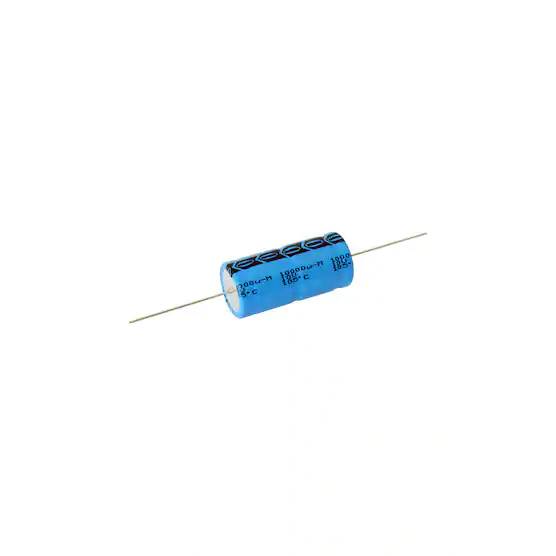

MAL212537829E3CAP ALUM 82UF 20% 40V AXIAL |
2373 | 1.05 |
ДобавитьНемедленный |
Box | 125 ALS | Active | 82 µF | ±20% | 40 V | 1.617Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 100 Hz | 126 mA @ 10 kHz | 2.1 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL212538479E3CAP ALUM 47UF 20% 63V AXIAL |
3472 | 1.05 |
ДобавитьНемедленный |
Box | 125 ALS | Active | 47 µF | ±20% | 63 V | 2.258Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 100 Hz | 112 mA @ 10 kHz | 3.6 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL212536181E3CAP ALUM 180UF 20% 25V AXIAL |
2242 | 1.05 |
ДобавитьНемедленный |
Box | 125 ALS | Active | 180 µF | ±20% | 25 V | 1.032Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 100 Hz | 136.5 mA @ 10 kHz | 1.2 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL212535331E3CAP ALUM 330UF 20% 16V AXIAL |
2795 | 1.05 |
ДобавитьНемедленный |
Box | 125 ALS | Active | 330 µF | ±20% | 16 V | 643mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 100 Hz | 143 mA @ 10 kHz | 1.25 Ohms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
MAL212534471E3CAP ALUM 470UF 20% 10V AXIAL |
3248 | 1.05 |
ДобавитьНемедленный |
Box | 125 ALS | Active | 470 µF | ±20% | 10 V | 564mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 100 Hz | 138 mA @ 10 kHz | 910 mOhms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
EEU-FR0J822CAP ALUM 8200UF 20% 6.3V RADIAL |
3857 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FR-A | Active | 8200 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
50PX2200MEFCGC16X31.5CAP ALUM 2200UF 20% 50V RADIAL |
3538 | 1.45 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | PX | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.84 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL214234682E3CAP ALUM 6800UF 20% 10V RADIAL |
2121 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | 142 RHS | Active | 6800 µF | ±20% | 10 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.944 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL214235472E3CAP ALUM 4700UF 20% 16V RADIAL |
3991 | 1.05 |
ДобавитьНемедленный |
Datenblatt |
Tape & Box (TB) | 142 RHS | Active | 4700 µF | ±20% | 16 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.702 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
