| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-TP1V152CAP ALUM 1500UF 20% 35V RADIAL |
2644 | 4.10 |
ДобавитьНемедленный |
Datenblatt |
Bulk | TP-A | Active | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LKS1V332MESYCAP ALUM 3300UF 20% 35V SNAP |
2890 | 4.10 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LKS | Active | 3300 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.5 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
UPTW6820MHD6CAP ALUM 82UF 20% 420V RADIAL |
3628 | 4.10 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPT | Active | 82 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 570 mA @ 120 Hz | 912 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

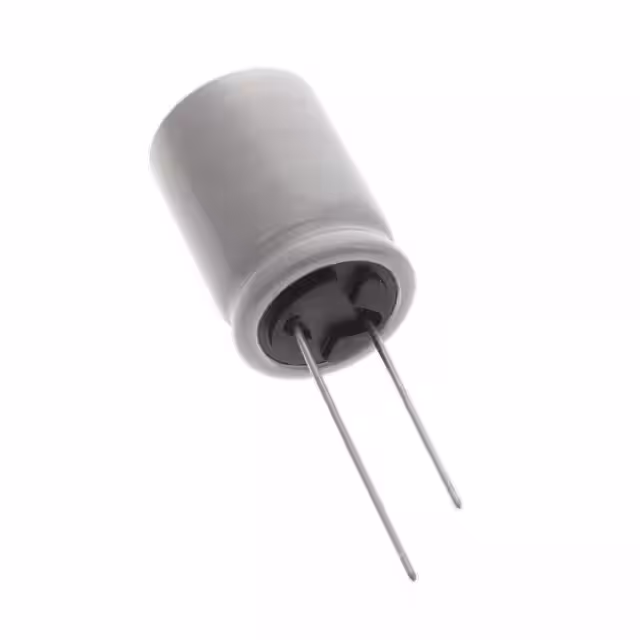

UBY1J132MHL6CAP ALUM 1300UF 20% 63V RADIAL |
2206 | 4.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 1300 µF | ±20% | 63 V | 35mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.848 A @ 120 Hz | 3.08 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
LGU1C153MELBCAP ALUM 15000UF 20% 16V SNAP |
3472 | 4.12 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 15000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.9555 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UKA1A103MHDCAP ALUM 10000UF 20% 10V RADIAL |
2476 | 4.13 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UKA | Not For New Designs | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 1.89 A @ 120 Hz | 2.1735 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPZW6820MHDCAP ALUM 82UF 20% 420V RADIAL |
3728 | 4.14 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPZ | Active | 82 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 855 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
LGY1C223MELA45CAP ALUM 22000UF 20% 16V SNAP |
3964 | 4.14 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGY | Active | 22000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UBT2W330MHDCAP ALUM 33UF 20% 450V RADIAL |
2392 | 4.15 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBT | Active | 33 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 203 mA @ 120 Hz | 365.4 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
LGY1V682MELB25CAP ALUM 6800UF 20% 35V SNAP |
2068 | 4.16 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGY | Active | 6800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LLS1E153MELZCAP ALUM 15000UF 20% 25V SNAP |
3163 | 4.16 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LLS | Active | 15000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.21 A @ 120 Hz | 4.8415 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
688LBA025M2CCCAP ALUM 6800UF 20% 25V SNAP |
3610 | 4.16 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LBA | Active | 6800 µF | ±20% | 25 V | 109.71mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.1875 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBY1E512MHLCAP ALUM 5100UF 20% 25V RADIAL |
2561 | 4.17 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 5100 µF | ±20% | 25 V | 24mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 2.95 A @ 120 Hz | 3.47 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
LAR2W101MELZ30CAP ALUM 100UF 20% 450V SNAP |
3977 | 4.18 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LAR | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 793.5 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
LGU2A122MELACAP ALUM 1200UF 20% 100V SNAP |
2203 | 4.19 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 1200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.024 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
LGY1E153MELA45CAP ALUM 15000UF 20% 25V SNAP |
3082 | 4.19 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGY | Active | 15000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
LLS1J472MELZCAP ALUM 4700UF 20% 63V SNAP |
2803 | 4.19 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LLS | Active | 4700 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.69 A @ 120 Hz | 4.2435 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGU1C183MELZCAP ALUM 18000UF 20% 16V SNAP |
2770 | 4.20 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 18000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 3.427 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
LGU2A152MELZCAP ALUM 1500UF 20% 100V SNAP |
3439 | 4.20 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGU | Active | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.2885 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LAR2E391MELA30CAP ALUM 390UF 20% 250V SNAP |
2886 | 4.21 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LAR | Active | 390 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
