| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

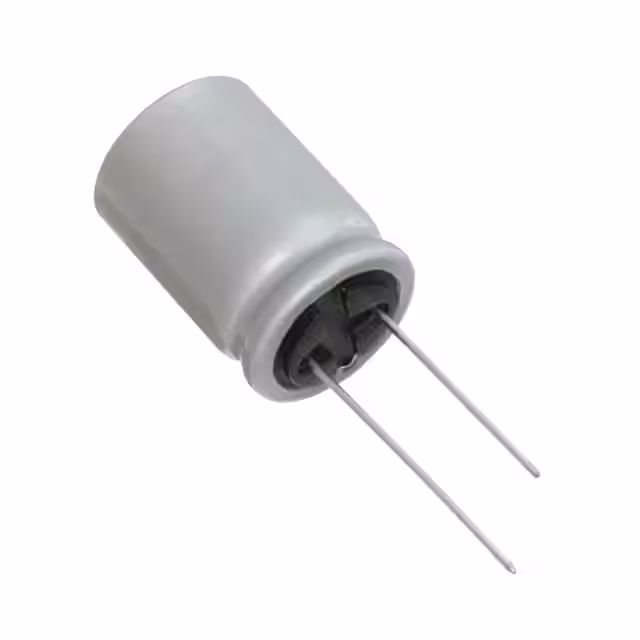

UBY1K821MHL6TNCAP ALUM 820UF 20% 80V RADIAL |
2782 | 4.26 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UBY | Active | 820 µF | ±20% | 80 V | 35mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.848 A @ 120 Hz | 3.08 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EGXF250ELL272MK25SCAP ALUM 2700UF 20% 25V RAD TH |
2564 | 2.20 |
ДобавитьНемедленный |
Datenblatt |
Bulk | GXF | Active | 2700 µF | ±20% | 25 V | 30mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.71 A @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UCA2C151MHDCAP ALUM 150UF 20% 160V RADIAL |
2752 | 2.20 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UCA | Not For New Designs | 150 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.36 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
EEU-FS1J821LCAP ALUM 820UF 20% 63V RADIAL |
2690 | 2.21 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FS-A | Active | 820 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.085 A @ 120 Hz | 2.78 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.398 (35.50mm) | - | Through Hole |
|

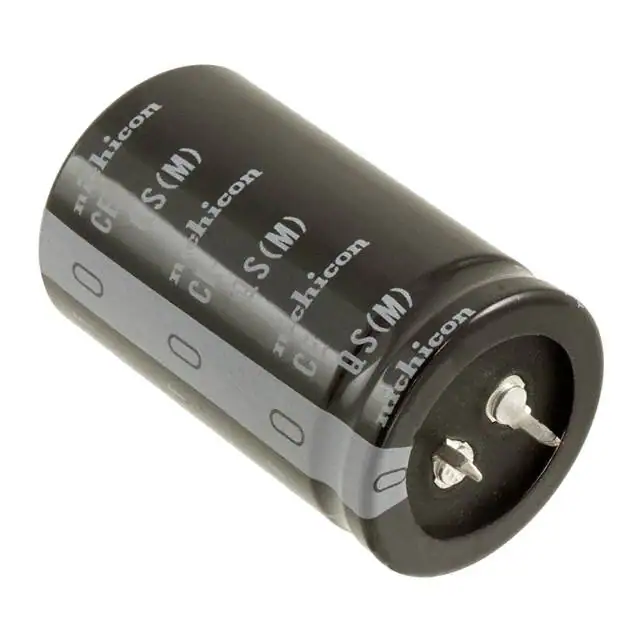

LQS2W391MELB50CAP ALUM 390UF 20% 450V SNAP |
3107 | 11.36 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LQS | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.3023 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
.JPG)
|
35TRV1500M18X16.5CAP ALUM 1500UF 20% 35V SMD |
3464 | 3.59 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 1500 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 64 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
PSU12415CAP ALUM 124UF 125V QC TERM |
2133 | 13.68 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PSU | Active | 124 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438 Dia (36.53mm) | 2.810 (71.37mm) | - | Chassis Mount |
|
UPJ1H122MHDCAP ALUM 1200UF 20% 50V RADIAL |
2001 | 2.22 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPJ | Not For New Designs | 1200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.26 A @ 10 kHz | 28 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

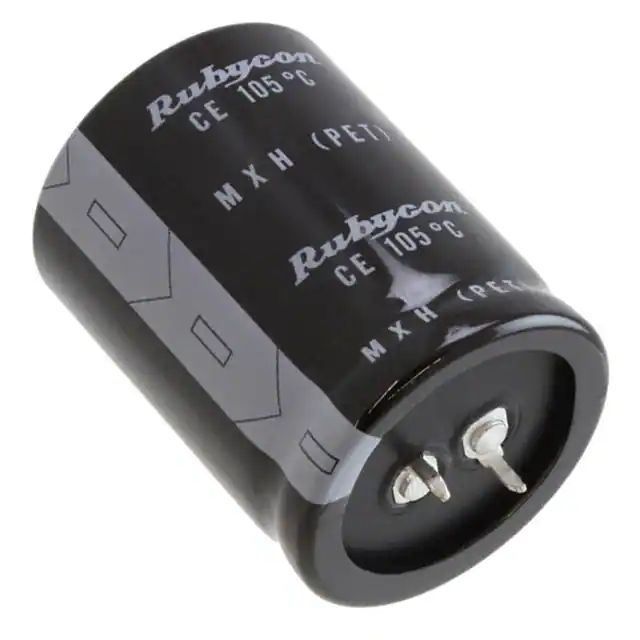

450MXH560MEFCSN35X45CAP ALUM 560UF 20% 450V SNAP |
3611 | 11.41 |
ДобавитьНемедленный |
Datenblatt |
Bulk | MXH | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 3.052 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UFG0J472MHMCAP ALUM 4700UF 20% 6.3V RADIAL |
3756 | 2.23 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UFG | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.431 A @ 120 Hz | 1.64565 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

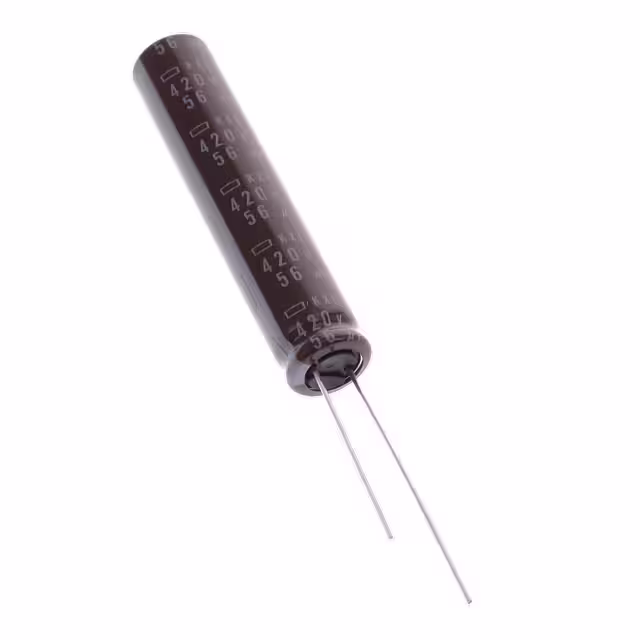

EKXL421ELL560MJ50SCAP ALUM 56UF 20% 420V RADIAL TH |
2312 | 2.23 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KXL | Active | 56 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
UFG1A332MHMCAP ALUM 3300UF 20% 10V RADIAL |
3533 | 2.23 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UFG | Not For New Designs | 3300 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.52 A @ 120 Hz | 1.748 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UCY2V560MHD6CAP ALUM 56UF 20% 350V RADIAL |
2053 | 2.23 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UCY | Active | 56 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 565 mA @ 120 Hz | 1.13 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXS501VSN221MR45SCAP ALUM 220UF 20% 500V SNAP |
3433 | 11.41 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LXS | Active | 220 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.9019 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
ULD2W220MHDCAP ALUM 22UF 20% 450V RADIAL |
3005 | 2.26 |
ДобавитьНемедленный |
Datenblatt |
Bulk | ULD | Not For New Designs | 22 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 456 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
865060563011CAP ALUM 1000UF 20% 35V SMD |
2658 | 3.08 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASLL | Active | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPM1J821MHDCAP ALUM 820UF 20% 63V RADIAL |
2836 | 2.29 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPM | Not For New Designs | 820 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.22 A @ 10 kHz | 29 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
UHW1J681MHDCAP ALUM 680UF 20% 63V RADIAL |
2728 | 2.29 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UHW | Not For New Designs | 680 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.656 A @ 120 Hz | 2.76 A @ 100 kHz | 44 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.299 (33.00mm) | - | Through Hole |
|
UBY1K391MHLCAP ALUM 390UF 20% 80V RADIAL |
2623 | 2.31 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBY | Active | 390 µF | ±20% | 80 V | 54mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 1.26 A @ 120 Hz | 2.52 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
UUJ2E470MNQ1MSCAP ALUM 47UF 20% 250V SMD |
2909 | 3.29 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UUJ | Not For New Designs | 47 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
