| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

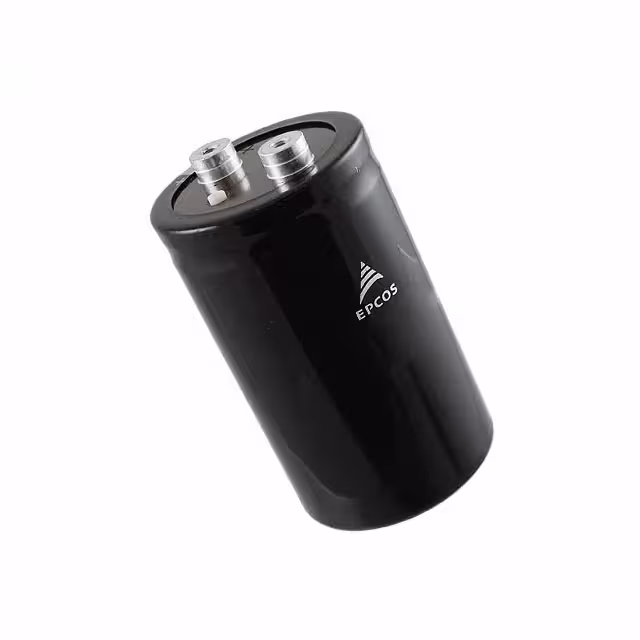

B43456A9338M000CAP ALUM 3300UF 20% 400V SCREW |
2243 | 101.94 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43456 | Not For New Designs | 3300 µF | ±20% | 400 V | 23mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 24 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
LNC2G123MSEJCAP ALUM 12000UF 20% 400V SCREW |
2283 | 104.16 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNC | Active | 12000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37.1 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
LNC2W822MSEJCAP ALUM 8200UF 20% 450V SCREW |
2686 | 104.85 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNC | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.5 A @ 120 Hz | 42.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|
LNX2J182MSEHCAP ALUM 1800UF 20% 630V SCREW |
2582 | 105.19 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNX | Active | 1800 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
|
LNC2W682MSEJCAP ALUM 6800UF 20% 450V SCREW |
2852 | 105.27 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNC | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.5 A @ 120 Hz | 38.5 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.646 (118.00mm) | - | Chassis Mount |
|
LNK2G103MSEHCAP ALUM 10000UF 20% 400V SCREW |
2512 | 105.28 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNK | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 26.2 A @ 120 Hz | 36.68 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.693 (170.00mm) | - | Chassis Mount |
|
LNT2A683MSECAP ALUM 68000UF 20% 100V SCREW |
2007 | 107.14 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNT | Active | 68000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.2 A @ 120 Hz | 20.93 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

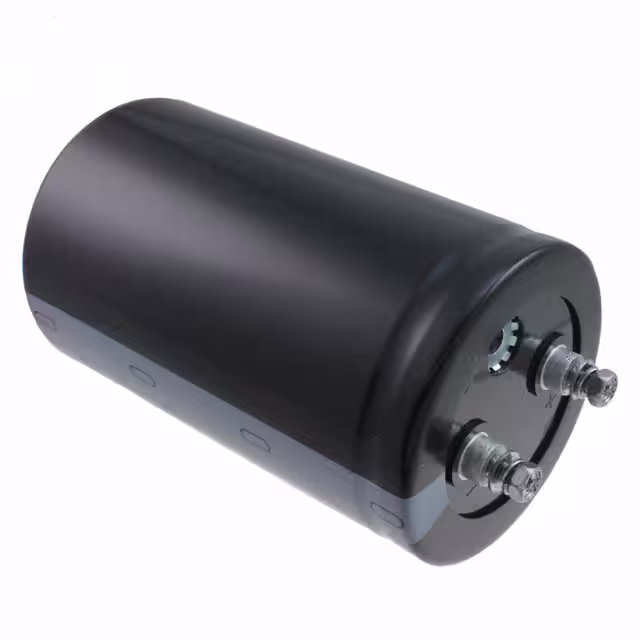

LNU2G682MSEHCAP ALUM 6800UF 20% 400V SCREW |
2497 | 107.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNU | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 27.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.039 (128.00mm) | - | Chassis Mount |
|

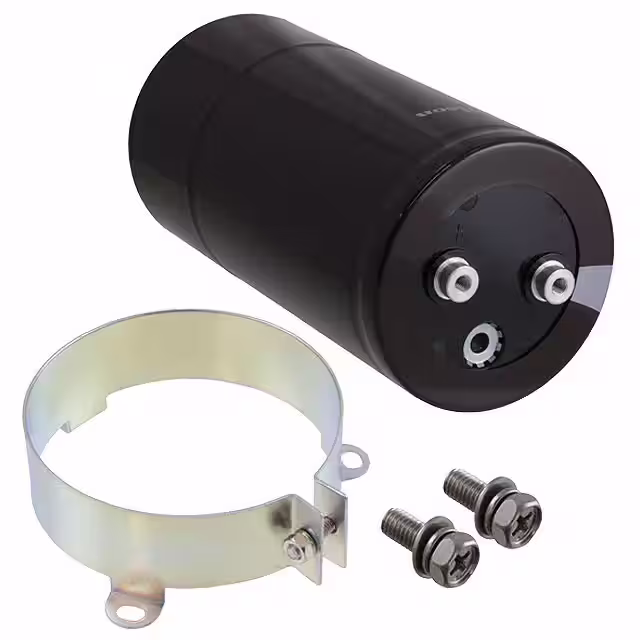

LNU2W562MSEHCAP ALUM 5600UF 20% 450V SCREW |
2466 | 107.90 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNU | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 120 Hz | 28.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
B43310A9568M000CAP ALUM 5600UF 20% 400V SCREW |
2837 | 108.37 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43310 | Not For New Designs | 5600 µF | ±20% | 400 V | 34mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
LNX2H272MSEHCAP ALUM 2700UF 20% 500V SCREW |
2712 | 109.48 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNX | Active | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.449 (113.00mm) | - | Chassis Mount |
|
B43703B5478M000CAP ALUM 4700UF 20% 450V SCREW |
2790 | 112.57 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43703 | Active | 4700 µF | ±20% | 450 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | - | 32 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
LNK2G103MSEJCAP ALUM 10000UF 20% 400V SCREW |
3008 | 113.66 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNK | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.2 A @ 120 Hz | 33.88 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.118 (130.00mm) | - | Chassis Mount |
|

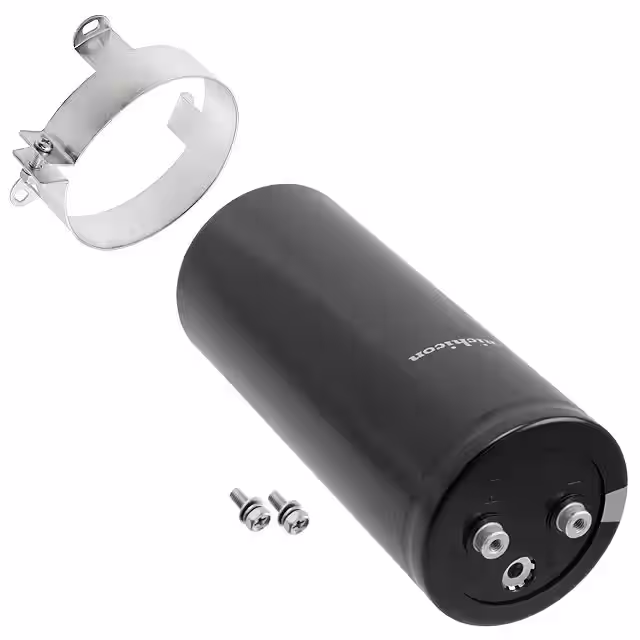

LNC2W822MSEHCAP ALUM 8200UF 20% 450V SCREW |
3435 | 114.51 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNC | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.2 A @ 120 Hz | 38.08 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.402 (188.00mm) | - | Chassis Mount |
|
B43707A9109M600CAP ALUM 10000UF 20% 400V SCREW |
2809 | 116.10 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43707 | Active | 10000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.9 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
.JPG)
|
LNY2W103MSEHCAP ALUM 10000UF 20% 450V SCREW |
3737 | 118.63 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNY | Active | 10000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 120 Hz | 32.2 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 8.268 (210.00mm) | - | Chassis Mount |
.JPG)
|
LNX2V183MSEJCAP ALUM 18000UF 20% 350V SCREW |
2259 | 123.28 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNX | Active | 18000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 39.7 A @ 120 Hz | 55.58 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNT1K154MSECAP ALUM 150000UF 20% 80V SCREW |
2083 | 124.57 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNT | Active | 150000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.6 A @ 120 Hz | 24.84 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNU2W682MSEJCAP ALUM 6800UF 20% 450V SCREW |
3640 | 126.32 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNU | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.039 (128.00mm) | - | Chassis Mount |
|
|
LNC2G153MSEJCAP ALUM 15000UF 20% 400V SCREW |
3950 | 128.31 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LNC | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.9 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.402 (188.00mm) | - | Chassis Mount |
