| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FP1A102AVCAP ALUM 1000UF 20% 10V SMD |
3765 | 1.82 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 1000 µF | ±20% | 10 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FP1E471AVCAP ALUM 470UF 20% 25V SMD |
2672 | 1.82 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 470 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 773.5 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FP1H221AVCAP ALUM 220UF 20% 50V SMD |
2065 | 1.82 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 220 µF | ±20% | 50 V | 120mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FP1V331AVCAP ALUM 330UF 20% 35V SMD |
2308 | 1.82 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FP, Anti-Vibration | Active | 330 µF | ±20% | 35 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 773.5 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UPA0J152MPD6TDCAP ALUM 1500UF 20% 6.3V RADIAL |
2203 | 1.02 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 1500 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.054 A @ 120 Hz | 1.24 A @ 100 kHz | 49 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UWD1E471MCL1GSCAP ALUM 470UF 20% 25V SMD |
3344 | 0.91 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
AFK106M63D16T-FCAP ALUM 10UF 20% 63V SMD |
3795 | 1.01 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 10 µF | ±20% | 63 V | 1.5Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 80 mA @ 100 kHz | 1.5 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
EEE-FK1A122SVCAP ALUM 1200UF 20% 10V SMD |
2943 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 1200 µF | ±20% | 10 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1C102SVCAP ALUM 1000UF 20% 16V SMD |
3330 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 1000 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FK1H271SVCAP ALUM 270UF 20% 50V SMD |
3820 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | FKS, Anti-Vibration | Active | 270 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 435.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-TC1A471UVCAP ALUM 470UF 20% 10V SMD |
500 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 470 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1A561UVCAP ALUM 560UF 20% 10V SMD |
3110 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1C331UVCAP ALUM 330UF 20% 16V SMD |
2092 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 330 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1C391UVCAP ALUM 390UF 20% 16V SMD |
3131 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 390 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E221UVCAP ALUM 220UF 20% 25V SMD |
3377 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E331UVCAP ALUM 330UF 20% 25V SMD |
3493 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 330 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1V221UVCAP ALUM 220UF 20% 35V SMD |
3333 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | TCU, Anti-Vibration | Active | 220 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UCA2W6R8MPD1TDCAP ALUM 6.8UF 20% 450V RADIAL |
2185 | 0.92 |
ДобавитьНемедленный |
Datenblatt |
Cut Tape (CT),Tape & Box (TB) | UCA | Not For New Designs | 6.8 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 150 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
35YXG470MEFC10X20CAP ALUM 470UF 20% 35V RADIAL |
2927 | 0.82 |
ДобавитьНемедленный |
Datenblatt |
Bulk | YXG | Active | 470 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.4 A @ 100 kHz | 46 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

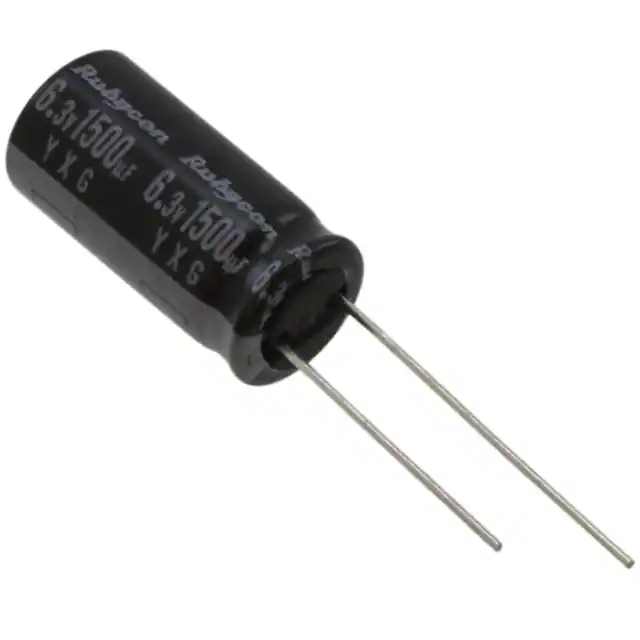

6.3YXG1500MEFC10X20CAP ALUM 1500UF 20% 6.3V RADIAL |
840 | 0.82 |
ДобавитьНемедленный |
Datenblatt |
Bulk | YXG | Active | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.4 A @ 100 kHz | 46 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
