| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUHP-5DT1-12RELAY GEN PURPOSE SPDT 30A 12V |
2491 | 31.91 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KUHP | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 240VAC - Max | 100 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 9 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
R10-E2616-1RELAY DRY CIR 8A PCB |
2021 | 31.95 |
ДобавитьНемедленный |
Bulk | R10 | Active | Through Hole | - | SPDT (1 Form C) | - | - | - | Non Latching | - | PC Pin | - | - | - | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | |
|
R10-E1X2-V15.0KRELAY GEN PURPOSE DPDT 5A 115V |
2634 | 32.01 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Active | Socketable | 115VDC | DPDT (2 Form C) | 5 A | 120VAC, 30VDC - Max | 7.7 mA | Non Latching | - | Plug In | - | - | 86 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) |
|
R10-R2X2-V700RELAY GEN PURPOSE DPDT 5A 24V |
3106 | 32.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 120VAC, 30VDC - Max | 34.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) |
|
|
R10-E1Y2-V28RELAY GEN PURPOSE DPDT 3A 5V |
3628 | 40.14 |
ДобавитьНемедленный |
Datenblatt |
Bulk | R10 | Active | Socketable | 5VDC | DPDT (2 Form C) | 3 A | 120VAC, 30VDC - Max | 179 mA | Non Latching | - | Plug In | - | - | 3.75 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|
KHU-17D18-24RELAY GEN PURPOSE 4PDT 3A 24V |
2822 | 40.33 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KHU | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 240VAC - Max | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) |
|
|
PRD-3DG0-12RELAY GEN PURPOSE SPST 30A 12V |
3224 | 40.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 30 A | 277VAC - Nom | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-3DG0-24RELAY GEN PURPOSE SPST 30A 24V |
3657 | 40.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 30 A | 277VAC - Nom | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
PRD-2DG0-24RELAY GEN PURPOSE 30A 24V |
2612 | 40.47 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PRD | Active | Chassis Mount | 24VDC | - | 30 A | 240VAC - Max | 83.3 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|

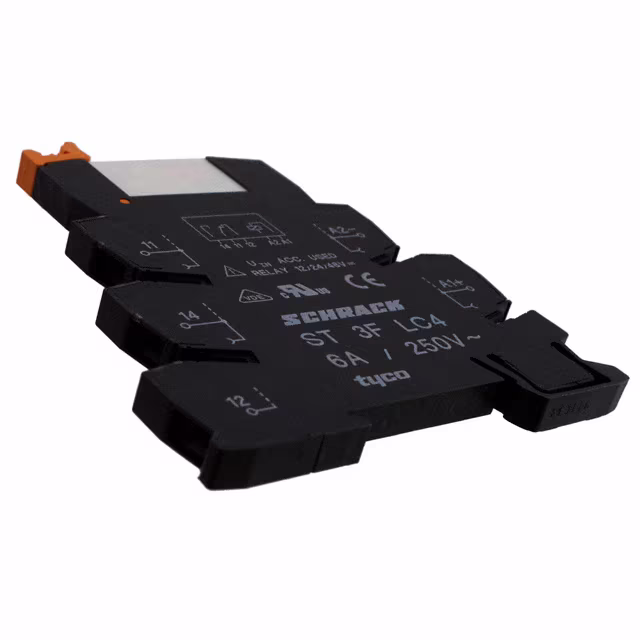

ST3P2LC4RELAY GEN PURPOSE SPDT 6A 24V |
2089 | 32.09 |
ДобавитьНемедленный |
Datenblatt |
Bulk | SNR, SCHRACK | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 7 mA | Non Latching | Socket Included | Screw Terminal | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|
|
2910505PLC-BSC-120UC/21-21/H |
2608 | 32.11 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PLC-BSC | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | 5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 96 VAC/DC | - | 15 ms | 15 ms | -20°C ~ 55°C | Silver Nickel (AgNi) |
|
KUP-17D55-48RELAY GEN PURPOSE 4PDT 10A 48V |
2775 | 32.13 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KUP | Active | Chassis Mount | 48VDC | 4PDT (4 Form C) | 10 A | 240VAC - Max | 38.5 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
|
K10-1036RELAY GEN PURPOSE DPDT 15A |
2052 | 32.19 |
ДобавитьНемедленный |
Bulk | K10 | Active | Socketable | - | DPDT (2 Form C) | 15 A | - | - | Non Latching | - | Plug In | - | Class B | - | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | |
|
KUP-14D11F-24RELAY GEN PURPOSE 3PDT 5A 24V |
3932 | 32.20 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KUP | Active | Socketable | 24VDC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver (Ag), Gold (Au) |
|
|
KUP-14D55-110RELAY GEN PURPOSE 3PDT 10A 110V |
3505 | 32.21 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KUP | Active | Chassis Mount | 110VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 11 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | Class B | 82.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
60.13.9.024.5070RELAY GEN PURPOSE 3PDT 10A 24V |
3731 | 32.24 |
ДобавитьНемедленный |
Datenblatt |
Bulk | 60 | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 53.9 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | 4.8 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) |
|

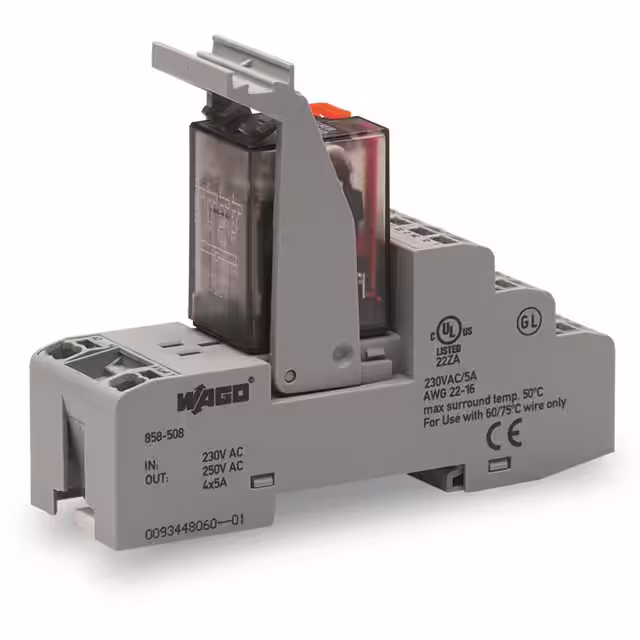

858-508RELAY GEN PURPOSE 4PDT 5A 230V |
2138 | 32.30 |
ДобавитьНемедленный |
Datenblatt |
Box | 858 | Active | DIN Rail | 230VAC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 8.3 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 25 ms | 35 ms | -25°C ~ 70°C | Silver Cerium (AgCe) |
|
KRPA-5DG-110RELAY GEN PURPOSE SPDT 10A 110V |
3498 | 32.35 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KRPA | Active | Socketable | 110VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 11.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
KUHP-1D51-110RELAY GEN PURPOSE SPST 30A 110V |
3076 | 32.47 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KUHP | Active | Chassis Mount | 110VDC | SPST-NO (1 Form A) | 30 A | 240VAC - Max | 11 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 82.5 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|

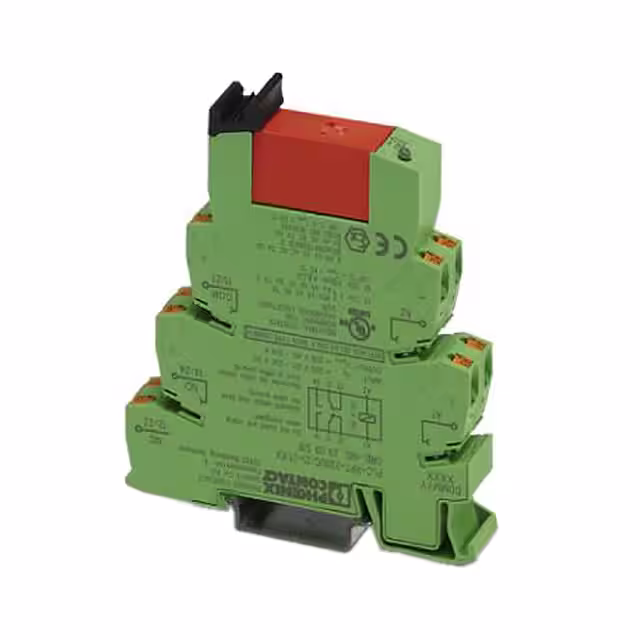

2909516RELAY GEN PURPOSE DPDT 6A 230V |
2886 | 32.50 |
ДобавитьНемедленный |
Datenblatt |
Bulk | PLC-RPT | Active | DIN Rail | 230VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
