| Фотографии | Производитель. Часть # | Акции | Цены | А | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVP1H331MHDCAP ALUM 330UF 20% 50V RADIAL |
3889 | 1.74 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UVP | Not For New Designs | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 650 mA @ 120 Hz | 975 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UBT1H471MHDCAP ALUM 470UF 20% 50V RADIAL |
2497 | 1.74 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UBT | Active | 470 µF | ±20% | 50 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 825 mA @ 120 Hz | 1.65 A @ 100 kHz | 55 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EKZN630ELL561MK25SCAP ALUM 560UF 20% 63V RADIAL |
2949 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KZN | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 2.46 A @ 100 kHz | 26 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEU-FK1E102LCAP ALUM 1000UF 20% 25V RAD TH |
3255 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FK | Active | 1000 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.26 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-FK1V102LCAP ALUM 1000UF 20% 35V RAD TH |
3429 | 1.75 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FK | Active | 1000 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.605 A @ 120 Hz | 2.14 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UVK2A471MHDCAP ALUM 470UF 20% 100V RADIAL |
3379 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UVK | Not For New Designs | 470 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPM1V102MHD6CAP ALUM 1000UF 20% 35V RADIAL |
2610 | 1.76 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UPM | Not For New Designs | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.77 A @ 10 kHz | 34 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

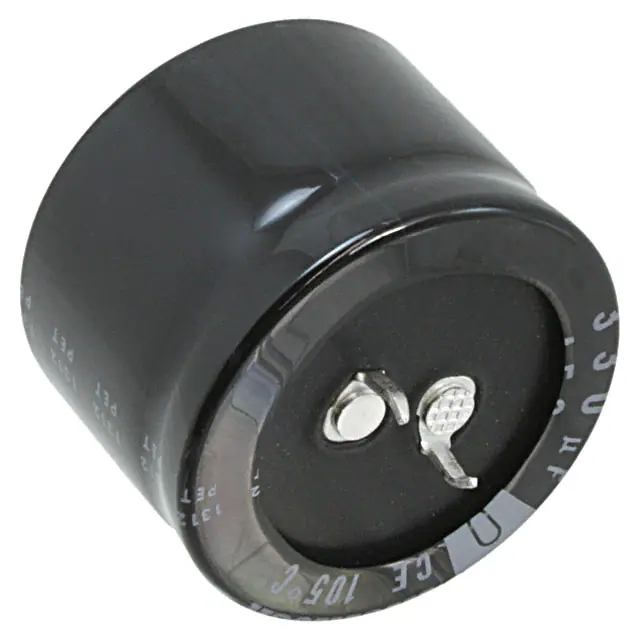

LGL2W331MELC25CAP ALUM 330UF 20% 450V SNAP |
2911 | 11.70 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LGL | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

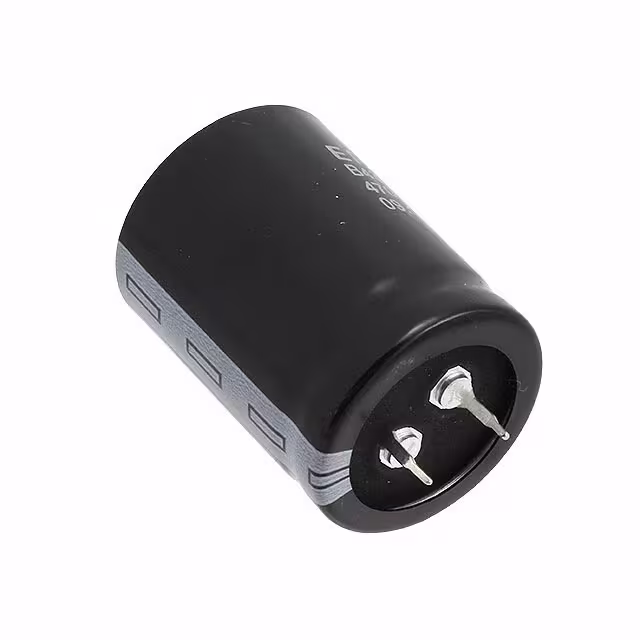

B43601B9477M000CAP ALUM 470UF 20% 400V SNAP |
2725 | 11.86 |
ДобавитьНемедленный |
Datenblatt |
Bulk | B43601 | Not For New Designs | 470 µF | ±20% | 400 V | 230mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 100 Hz | - | 320 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

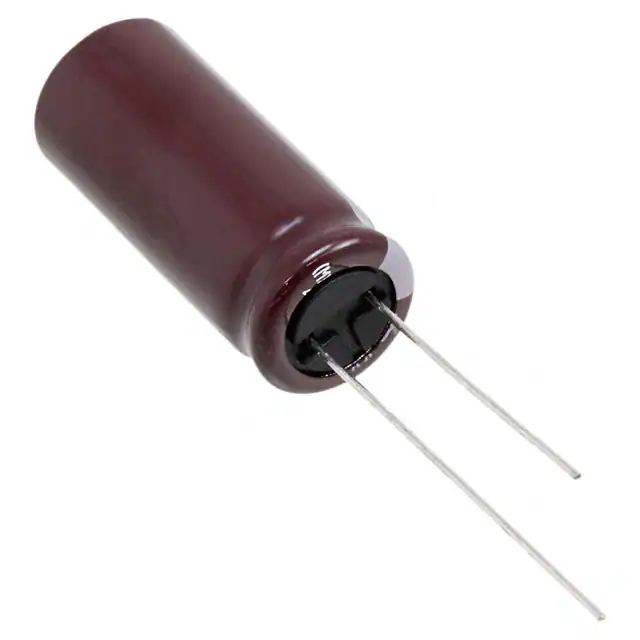

EKYB800ELL471MK30SCAP ALUM 470UF 20% 80V RADIAL |
2891 | 1.78 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KYB | Active | 470 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 975 mA @ 120 Hz | 1.95 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.240 (31.50mm) | - | Through Hole |
|
AFK227M50G24VT-FCAP ALUM 220UF 20% 50V SMD |
2283 | 3.79 |
ДобавитьНемедленный |
Datenblatt |
Tape & Reel (TR),Cut Tape (CT) | AFK_V | Active | 220 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 502.5 mA @ 120 Hz | - | 180 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EKZN500ELL681MK25SCAP ALUM 680UF 20% 50V RADIAL |
2740 | 1.79 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KZN | Active | 680 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.8 A @ 100 kHz | 25 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
EKZN101ELL221MK25SCAP ALUM 220UF 20% 100V RADIAL |
2851 | 1.79 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KZN | Active | 220 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.105 A @ 120 Hz | 2.21 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
450VXH560MEFCSN35X45CAP ALUM 560UF 20% 450V SNAP |
2036 | 12.06 |
ДобавитьНемедленный |
Datenblatt |
Bulk | VXH | Active | 560 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 120 Hz | 3.024 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UCY2D101MHD3CAP ALUM 100UF 20% 200V RADIAL |
3628 | 1.80 |
ДобавитьНемедленный |
Datenblatt |
Bulk | UCY | Active | 100 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.42 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXS201VSN182MR50SCAP ALUM 1800UF 20% 200V SNAP |
398 | 12.24 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LXS | Active | 1800 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 5.58 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.067 (52.50mm) | - | Through Hole |
|
ELXS401VSN561MR45SCAP ALUM 560UF 20% 400V SNAP |
298 | 12.34 |
ДобавитьНемедленный |
Datenblatt |
Bulk | LXS | Active | 560 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.9172 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
228CKR025MCAP ALUM 2200UF 20% 25V RADIAL |
3532 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Bulk | CKR | Active | 2200 µF | ±20% | 25 V | 135.6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.478 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EKYB350ELL152MK25SCAP ALUM 1500UF 20% 35V RADIAL |
2029 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Bulk | KYB | Active | 1500 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.518 A @ 120 Hz | 2.53 A @ 100 kHz | 24 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
EEU-FS2A221CAP ALUM 220UF 20% 100V RADIAL |
3264 | 1.83 |
ДобавитьНемедленный |
Datenblatt |
Bulk | FS-A | Active | 220 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.8 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
